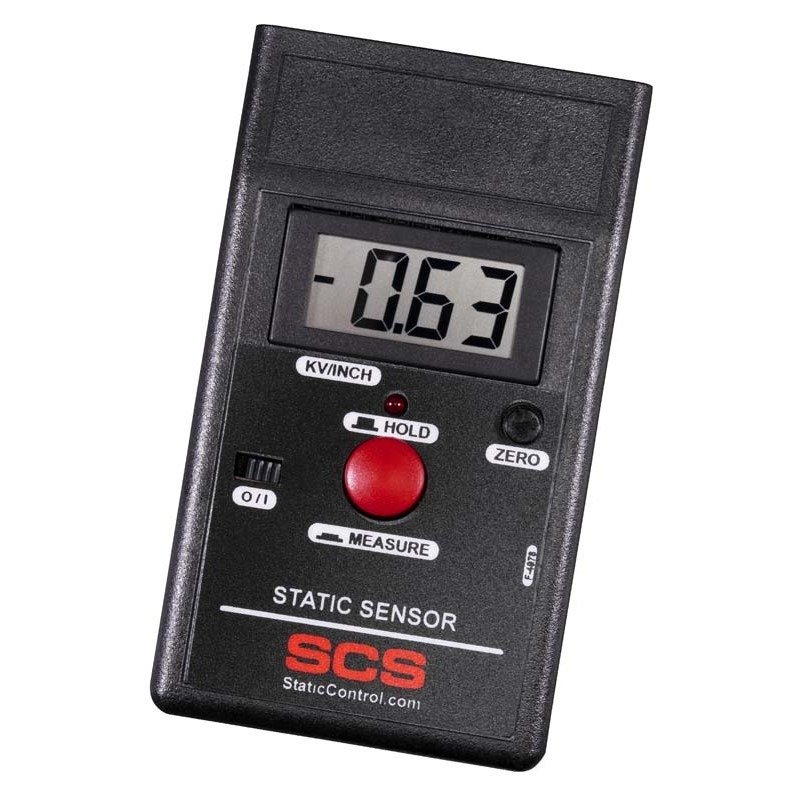

SCS 770716 – Static Sensor Meter, Handheld

• Portable kit for testing electrostatic fields
• Measurement range: 0 to +/- 19.99 kV / inch
• Measurement accuracy: +/- 5%
• Sampling rate: 3 readings per second

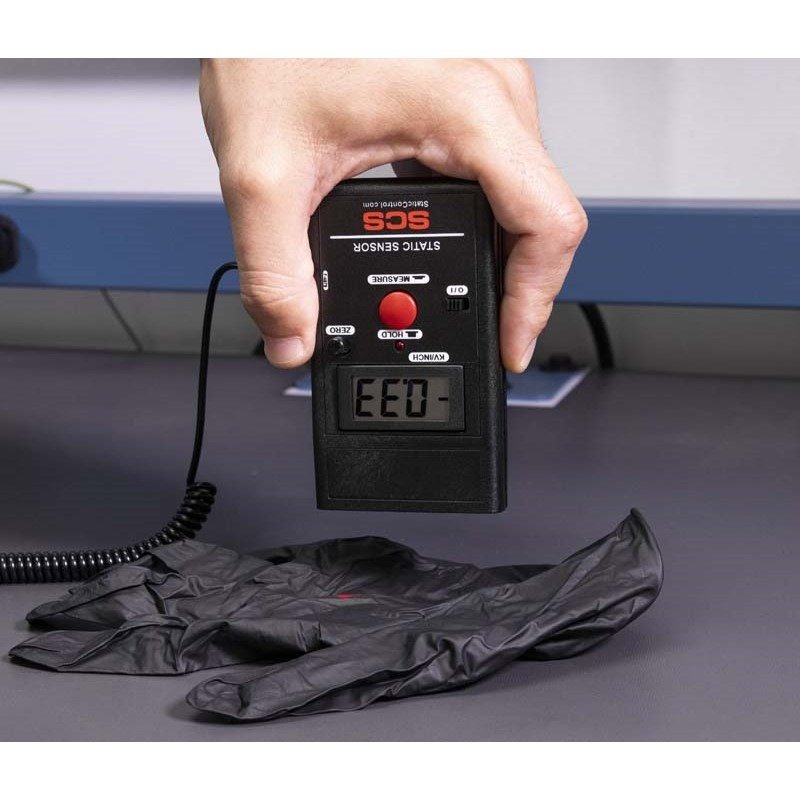

The SCS 770716 Static Sensor indicates surface voltage and polarity on objects. The meter has a measurement range of 0 to +/- 19.99 kV / 1 inch and a measurement accuracy of +/- 5%. It utilizes a chopper-stabilized sensor for use in both normal and ionized environments. The SCS 770716 Static Sensor enclosure is dissipative and features a 7 mm snap and ground cord for bonding to equipment ground. A rotary zero knob sets the zero-reference point with finely tuned precision, and a Hold button allows the user to freeze a displayed measurement for evaluation. A LED range indicator assists with placing the meter at the correct distance from the object being measured.

Optional (Air Ionizer Upgrade Kit):

The SCS 770719 is a conductive plate and charger (+/- 1000V) that pairs with the static sensor to measure offset voltage and discharge times for the periodic verification of ionizers per ANSI/ESD SP3.3 and ESD TR53. The SCS 770717 includes all the items together in one kit.

• Portable meter for testing of electrostatic fields – measures surface voltage and polarity on objects up to +/- 19.99 kV / 1 inch

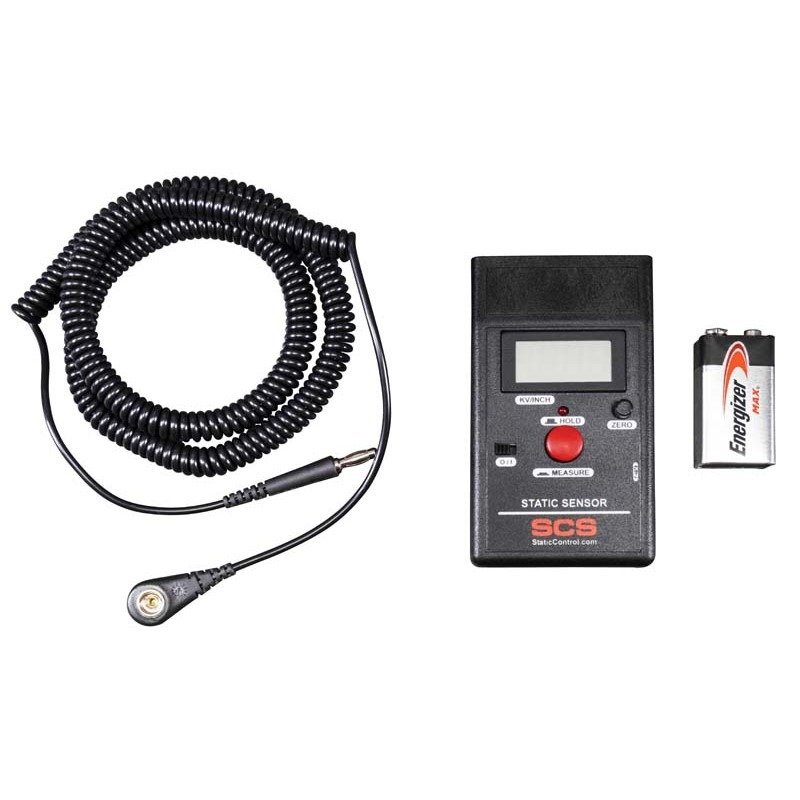

• Dissipative enclosure with 7mm ground snap – grounds meter when held by grounded operator or bonded to ground using the included ground cord
• Rotary zero knob – set zero-reference point with precision

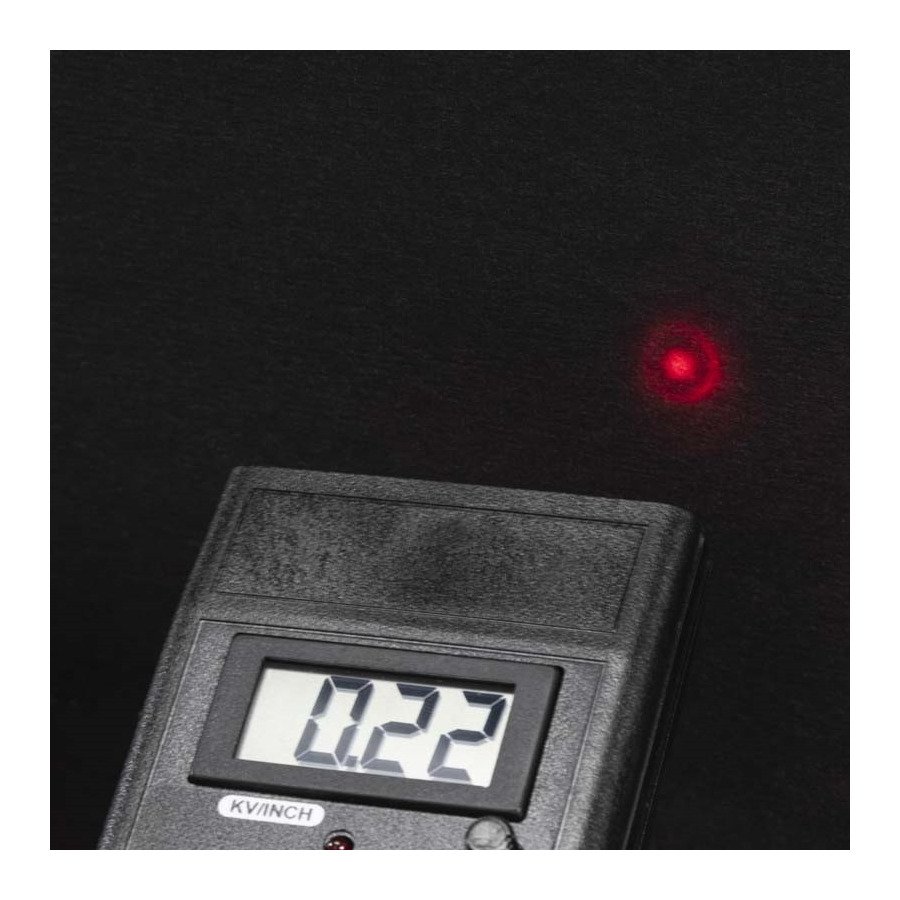

• LED range indicator – assists with placing the meter at correct distance for measurements
• Hold button – allows retention of measurements for easy reading, extends battery life
• NIST Calibrated with Certificate Included – Calibrated with accepted procedures and standards traceable to the National Institute of Standards and Technology
• Made in the USA
