Siglent SDM3065X – 6.5 Digit Dual Display Digital Multimeter
33 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
6 -digit; 10000rdgs/s sampling speed; 4.3 inch (480 * 272) true color TFT-LCD screen display; True RMS AC voltage and AC current measurements; supports GPIB interface, Scanner card
- Real 6.5 digit reading resolution (2,200,000 counts)
- DC voltage range: 200mV – 1000V
- AC voltage range: 200mV – 750V
- DC current range: 200µA – 10A
- AC current range: 200μA – 10A
- This model does not have a scanner card
- True-RMS AC voltage and current measurements
- With easy, convenient and flexible PC software: EasyDDM
- Standard interface: USB Device, USB Host, LAN
- USB & LAN remote interfaces support common SCPI command set, compatible with other popular DMMs
Guarantee Safe and Secure Payment Checkout
Description
Siglent SDM3065X – 6.5 Digit Dual Display Digital Multimeter
- Real 6.5 digit reading resolution (2,200,000 counts)
- DC voltage range: 200mV – 1000V
- AC voltage range: 200mV – 750V
- DC current range: 200µA – 10A
- AC current range: 200μA – 10A
- This model does not have a scanner card
SIGLENT’s SDM3000 instruments are dual display, digital desktop multimeters that provide a rich and powerful feature set at an excellent price. This DMM family is well suited for production testing, R&D and certification work, as well as any place where an accurate and powerful full-function DMM is needed.
The design is easy-to-use from the front-panel and also offers computer-based control via USB or LAN. Each are equipped with a 4.3” TFT-LCD true color screen with 480×272 resolution for easy viewing of the numerical data display, histograms, trend charts, bar charts and statistics.
SIGLENTs SDM3000 multimeters are accurate, reliable, and dependable.
Available models
The following is an overview of models in the Siglent SDM3000 multimeter series. Please note, the scanner card is only available with new instruments – it cannot be added at a later date.
| # Digits | Scanner card | DC voltage | AC voltage | DC current | |
| SDM3045X | 4.5 | No | 600mV to 1000V | 600mV to 750V | 600µA to 10A |
| SDM3055 | 5.5 | No | 200mV to 1000V | 200mV to 750V | 200µA to 10A |
| SDM3055-SC | 5.5 | Yes | 200mV to 1000V | 200mV to 750V | 200µA to 10A |
| SDM3065X | 6.5 | No | 200mV to 1000V | 200mV to 750V | 200µA to 10A |
| SDM3065X-SC | 6.5 | Yes | 200mV to 1000V | 200mV to 750V | 200µA to 10A |
Product Features
Histogram Display

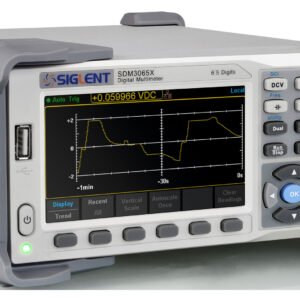

Trend Display
Bar Chart Display
Statistics Function
Dual Display Mode
Hold Measurement
Front Panel Overview
A. USB Host
B. Power Key
C. LCD Display
D. Menu Operation Keys
E. Measurement and Assistant Function Keys
F. Range and Direction Keys
G. Signal input terminals
Rear Panel Overview
A. Power Socket
B. Power Fuse
C. AC Voltage Selector
D. Inspection card (option)
E. USB Device
F. LAN
G. VMC Output
H. Ext trigger
I. Current Input Fuse
J. Instrument Lock Hole
Multimeters Template | |
|---|---|
| Style | Bench |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 750 V |
| Resolution AC Volts | 1 uV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 uV (0.001 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 100 nA (0.00010 mA) Minimum Current AC Minimum range is 20 mA full scale. |
| Resolution AC Current | 100 nA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 1 nA (0.000001 mA) Minimum Current DC Minimum range is 200 uA full scale. |
| Resolution DC Current | 100 pA (0.0000001 mA) |
| Basic Accuracy V DC | 0.02% |
| # Digit Display | 6.5 |
| Counts | 2200000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | II |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | Yes |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | Wave crest factor: 1-2: (Error is 0.05% of range) Wave crest factor: 2-3: (Error is 0.2% of range) |
Product General Attributes | |
| Unique Features | Min/Max/Average/Standard Deviation. dB/dBm, Relative measurements, histograms, Pass/Fail, Trending, Bar Chart, Built-in cold junction for thermocouple temperature testing. Includes SIGLENT EasySDM computer software. USB Device/Host, LAN |
| Warranty | 3 YEARS |
| Warranty Details | https://siglentna.com/service-and-support/warranty-information/ |
| Safety Approval | CE |
| Interfaces I/O | LAN / Ethernet, USB Host, USB |
| Storage | Internal Memory, USB Flash Drive |
| Product Weight | 3.7 KILOS (8.16 LBS) |
| Product Height | 107 MM (4.21 IN) |
| Product Length | 345 MM (13.58 IN) |
| Product Width | 260 MM (10.24 IN) |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.00 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | China |
