Simatec BHT 200-400 – Bearing Handling Tool, 150kg Max Lifting Force

• Maximum handling force: 150 kg
• Handling: Bearings with an outer diameter of 200–400 mm
• Application: Secure handling of medium-sized bearings
• Bearing bore remains free for mounting on shaft
• Mounting on shaft in horizontal and vertical position possible

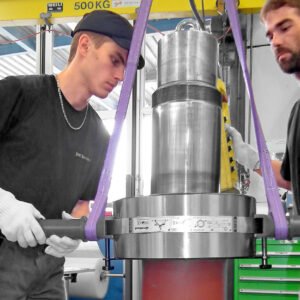

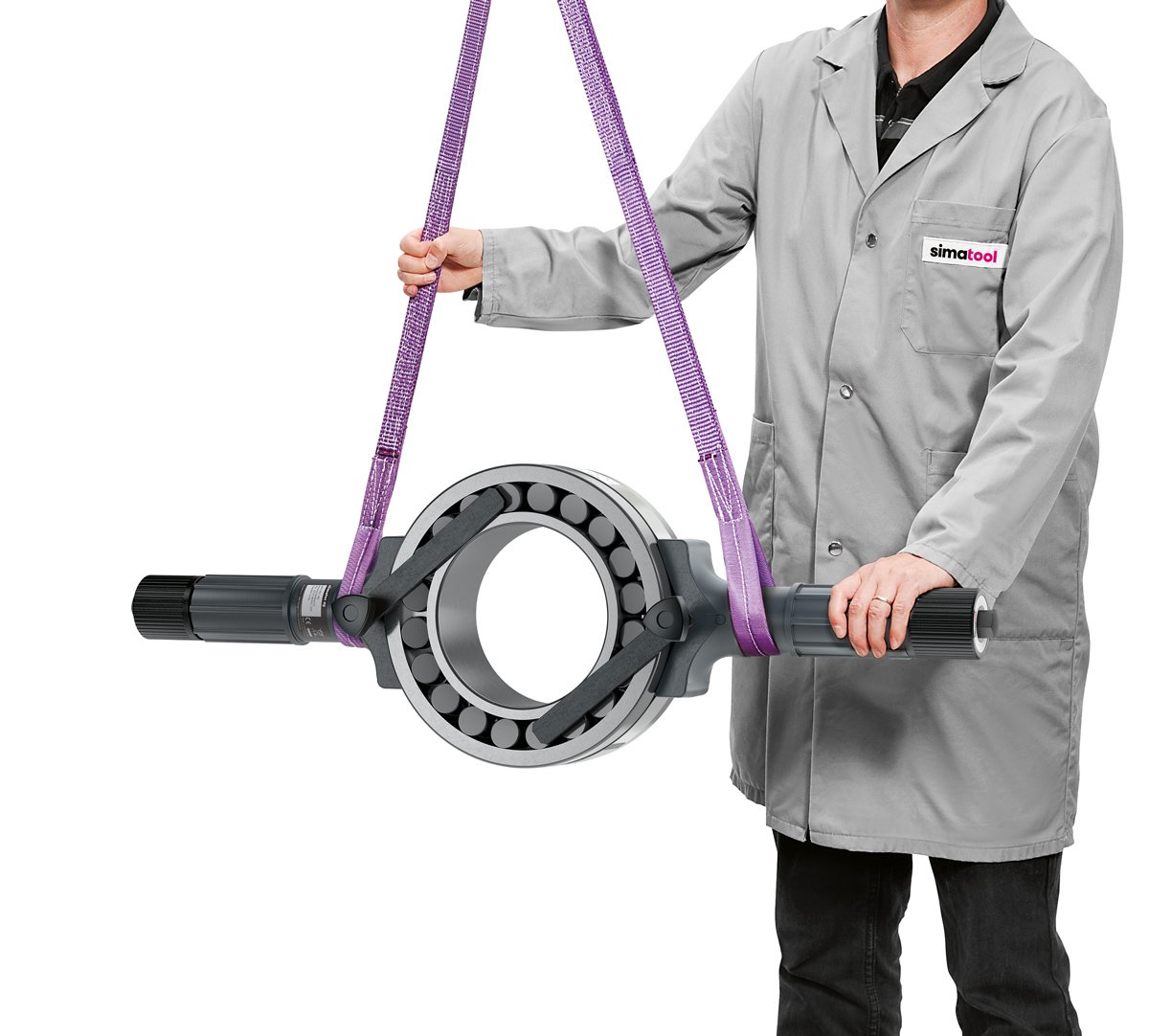

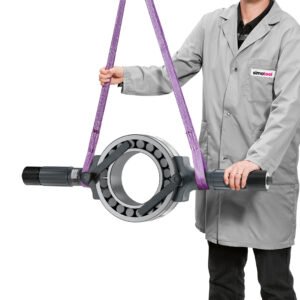

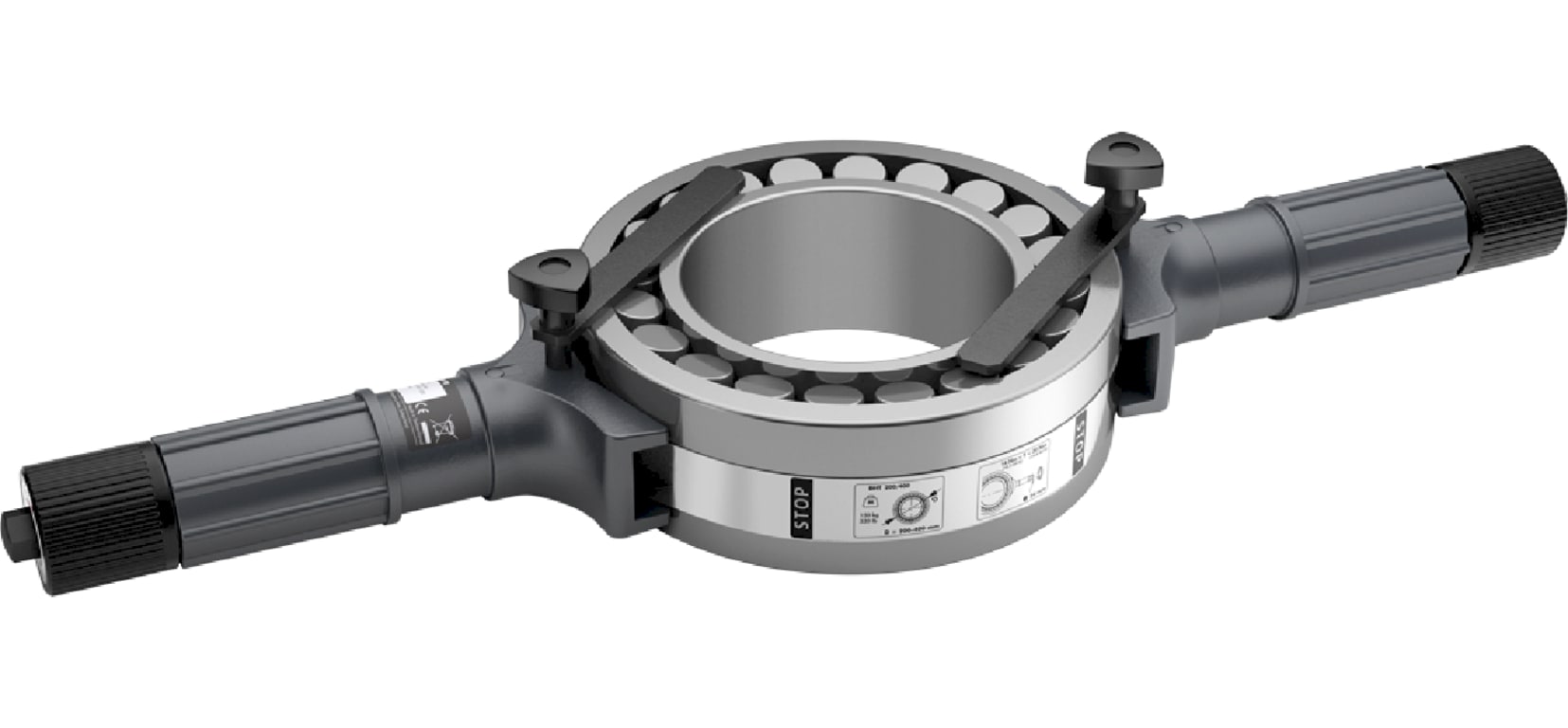

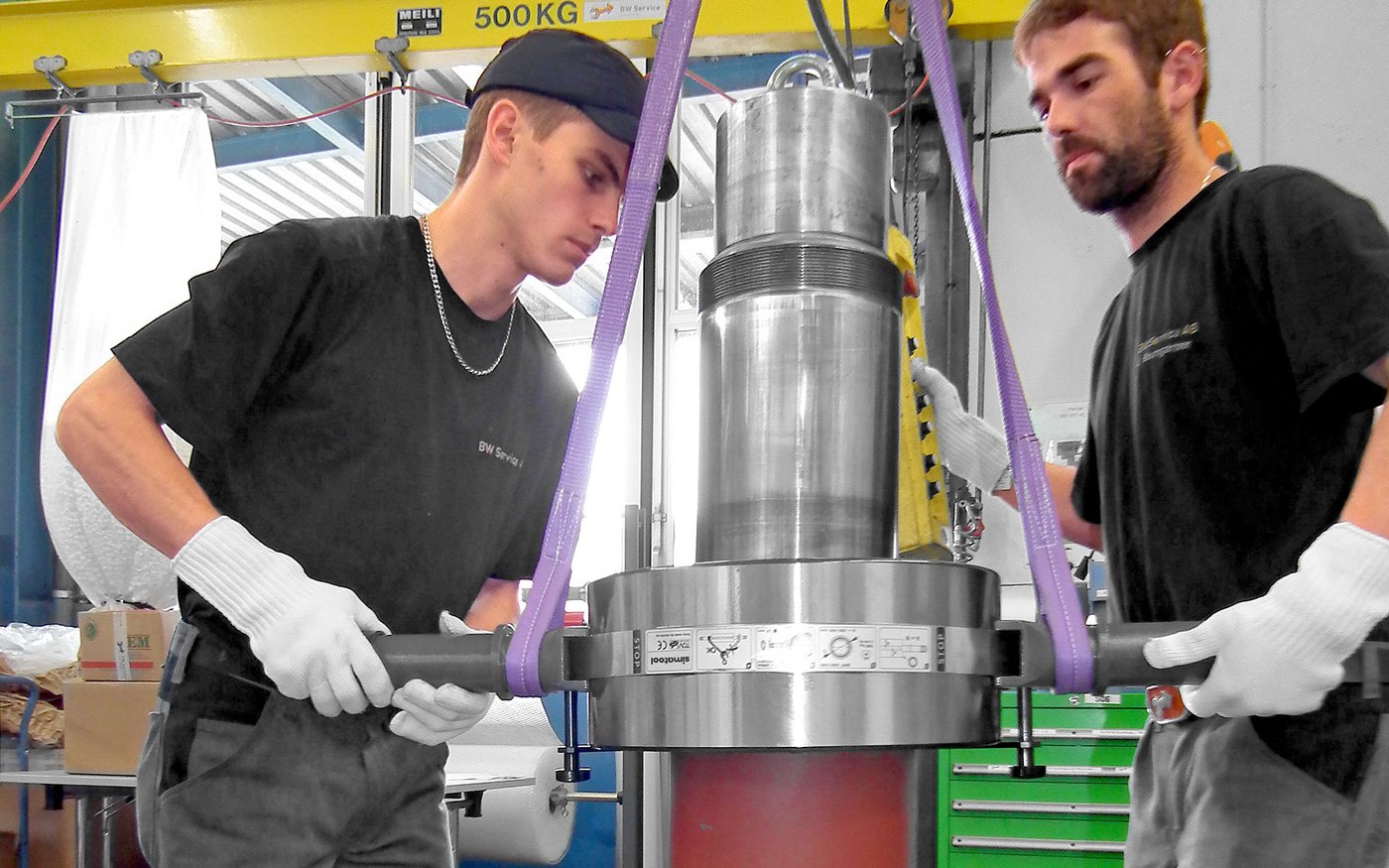

The safe solution for handling medium, large, and very large bearings. This Bearing Handling Tool is ideally suited for professionally and securely lifting large, heavy bearings. It reduces the risk of accidents and bearing damage. This Bearing Handling Tool encloses the outer race of the bearing with a steel band. With two handles on opposite sides and two carrying belts, the bearing can be easily transported with a lifting crane. The bore remains open so the bearings can be easily placed onto a shaft. With the Bearing Handling Tool, bearings can be both horizontally and vertically fitted onto a shaft. Two anti-twist devices, which are fastened against the inner race, ensure that the inner race of the bearing does not turn out of control.

• General manufacture and maintenance in plant and mechanical engineering
• Maintenance of agricultural, municipal, and construction machinery
• Maintenance of electric motors
• Maintenance of pumps
• Gearbox maintenance
• Maintenance of conveyor technology
• Maintenance of paper and plastics processing
