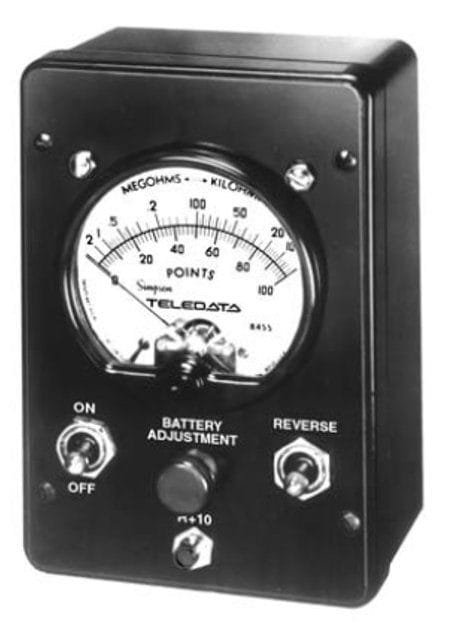

Simpson 8455A Line Loop Tester
45 people are viewing this product right now
Original price was: $430.05.$376.29Current price is: $376.29.
Shipping calculated at checkout.
Estimated delivery:3 days
8455A .. KIT W/BATT, LEADS and CASE
- Allows operator to get back to the job quickly with less downtime. The replacement toggles or push buttons can be kept in the truck and replaced on site, keeping the unit in service, at all times.
- Accurately checks line shorts, opens and multiple ringers.
- Measures DC voltage 0-100V and resistance R x 1, R ÷ 10.
- Polarity toggle switch eliminates manually switching test leads when conducting line checks.
- Durable, compact (5-1/2″ x 2-3/8″) construction makes it portable, easy to store and rugged.
- Accurate, Finer Readings – 0-100 points scale calibration yields accurate readings.
Guarantee Safe and Secure Payment Checkout
Description
Simpson 8455A Line Loop Tester
- Field Replaceable Switches
- Designed for Telecom Applications
- Wide Measuring Range
- Shorter Testing Time
- Rugged for Field Use
- Accurate, Finer Readings
DC voltage up to 100 volts and loop resistance to 2 megohms
Simpson’s Model 8455 Line Loop tester detects line shorts, opens and multiple ringers, DC voltages and loop resistance. It can measure DC voltage up to 100 volts and loop resistance to 2 mega ohms.
A front panel “reverse polarity” switch allows changing polarity positions quicker and easier than manually switching test leads when making line checks. This switch is field replaceable, enabling your loop tester to be operational at all times without costly shop repairs. The compact durable construction of this tester ensures continued accuracy even under the most rugged field conditions.
Resistance
| Model | Standard | Low Ohms | ||
| Range: | R x 1 | R ÷ 10 | Points | Low Ohms |
| Center Value: | 100K Ω | 10K Ω | 50 points | 500 Ω |
| Accuracy: | 2° of arc | 2° of full scale | 2° of arc | |
| Open Circuit Voltage (nom): | 45V | 45V | N/A | 1.2V |
| Short Circuit Current (nom): | 450 μA | 4.5mA | N/A | 2.4mA |
Product General Attributes | |
|---|---|
| Product Height | 4.25 IN |
| Product Length | 7.75 IN |
| Product Width | 6.00 IN |
| Shipping Height | 4.25 IN |
| Shipping Length | 7.75 IN |
| Shipping Width | 6.00 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 7.75 × 6 × 4.25 in |
|---|
