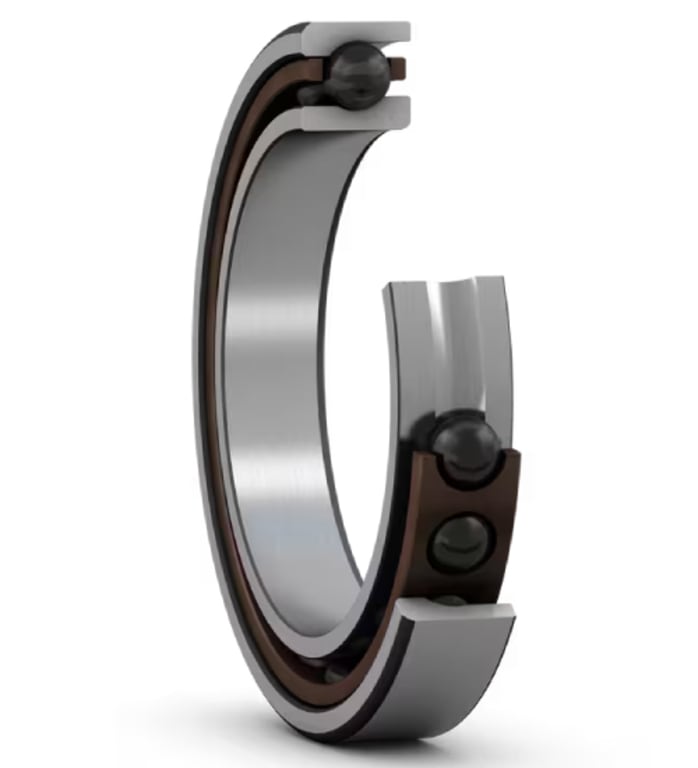

SKF 71918 CEGA/HCP4A – E Design Universally Matchable Single Row Angular Contact Ball Bearing

• Universally matchable single row angular contact ball bearing
• Bore Diameter: 90mm
• Outside diameter: 125mm
• Contact angle: 15 degrees
• Designed for high-speed operation

Super-precision, high-speed, E design, universally matchable single row angular contact ball bearing

These super-precision, high-speed, E-design, single row angular contact ball bearings accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They are designed for high-speed operation and, compared to SKF B design high-speed bearings, have a slightly higher speed capability and can accommodate heavier loads. Being universally matchable, they can be used together in arrangements to provide effective load sharing, within a predetermined preload range, without the use of shims or similar devices.

• Very high running accuracy
• Accommodate very high speeds
• Universally matchable
