SKF TMHN 7 – Lock Nut Spanner
17 people are viewing this product right now
Original price was: $3,918.59.$1,989.47Current price is: $1,989.47.
Shipping calculated at checkout.
Estimated delivery:3 days
Set of 7 lock nut spanners
- 7 different–sized spanners to fit nut sizes 5 to 11
- Each spanner is equipped with a protractor and is clearly marked with the correct tightening angle for mounting SKF Self aligning ball bearings
- 4 grip points on each spanner giving better and safer grip on the nut
- Reduced risk of damaging bearing by over–tightening
- Suitable for use with lock nuts of the KM series either on shaft or in SNL housings
Guarantee Safe and Secure Payment Checkout
Description
SKF TMHN 7 – Lock Nut Spanner
- 7 different–sized spanners to fit nut sizes 5 to 11
- 4 grip points on each spanner giving better and safer grip on the nut
- Suitable for use with lock nuts of the KM series either on shaft or in SNL housings

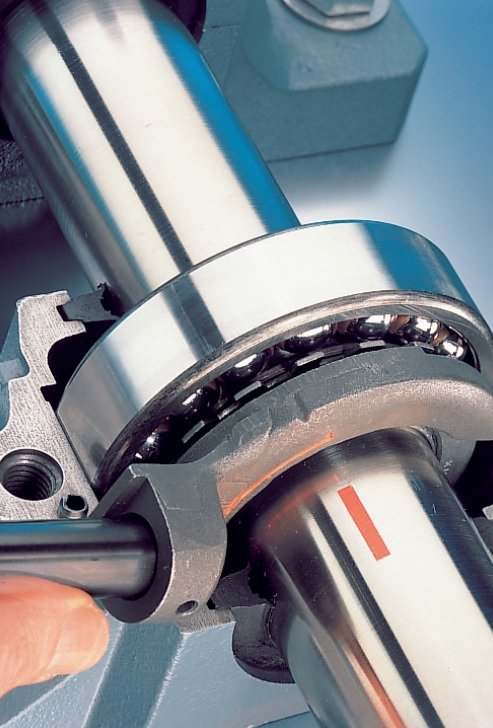

The SFK TMHN 7 set of lock nut spanners is especially designed for mounting self–aligning ball bearings as well as small spherical roller and CARB® bearings on tapered seatings. Using the TMHN 7 minimises the risk of over–tightening of the lock nut, which can result in removing the bearing’s radial clearance and bearing damage.
Interference fits on tapered shafts
Bearings mounted on tapered seatings achieve their interference fit by being driven up the tapered shaft. Care should be taken to ensure the bearing is not driven up too far, as all the internal clearance may be removed and damage to the bearing is possible.
| Spanner | Bearing designation | |||
| HNM 5 | 1205 EK | 2205 EK | 1305 EK | |
| HNM 6 | 1206 EK | 2206 EK | 1306 EK | 2306 K |
| HNM 7 | 1207 EK | 2207 EK | 1307 EK | 2307 EK |
| HNM 8 | 1208 EK | 2208 EK | 1308 EK | 2308 EK |
| HNM 9 | 1209 EK | 2209 EK | 1309 EK | 2309 EK |
| HNM 10 | 1210 EK | 2210 EK | 1310 EK | 2310 K |
| HNM 11 | 1211 EK | 2211 EK | 1311 EK | 2311 K |
Product General Attributes | |
|---|---|
| Unique Features | • 7 different–sized spanners to fit nut sizes 5 to 11 • Each spanner is equipped with a protractor and is clearly marked with the correct tightening angle for mounting SKF Self aligning ball bearings • 4 grip points on each spanner giving better and safer grip on the nut • Reduced risk of damaging bearing by over–tightening • Suitable for use with lock nuts of the KM series either on shaft or in SNL housings |
| Product Weight | 4.7 LBS |
| Country of Origin | United States |
