SKF TMMD 100 Deep Groove Ball Bearing Puller Kit

SKF TMMD 100 Deep Groove Ball Bearing Puller Kit

• Arm sizes 4, 5 and 6 are fitted with filling plates to accommodate a wide range of bearings
• The hexagon head of the spindle is equipped with an anti-slip pin, which prevents the spanner from sliding down the spindle during dismounting
• The rotation angle of the claw has been limited to allow easy insertion
• The designation is laser-engraved on the arms allowing easy identification and selection

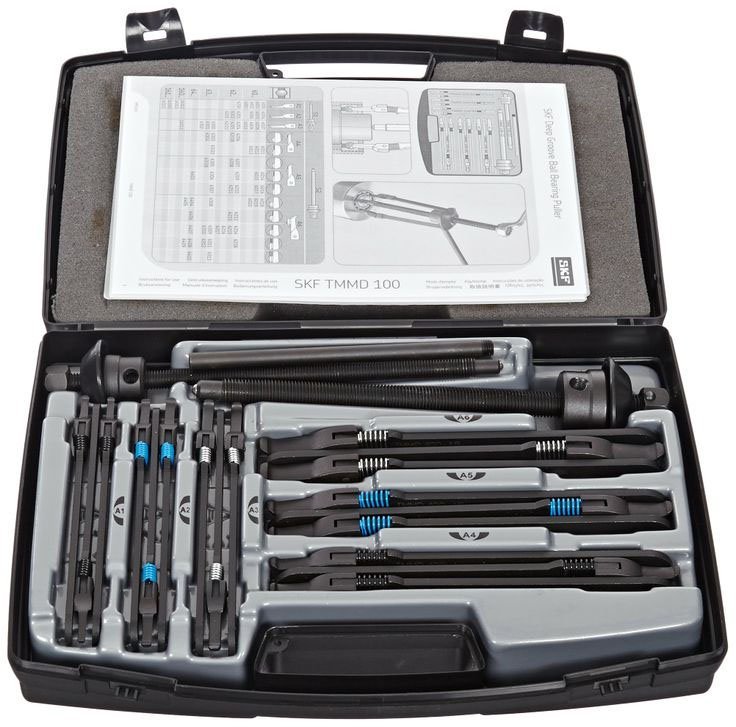

The SKF TMMD 100 is especially designed to allow easy and quick dismounting of deep groove ball bearings with interference fit on both rings. The puller is suitable for use in both blind housings and shaft applications. In addition to dismounting open bearings, the TMMD 100 can be used to dismount sealed bearings after the removal of the seal. The puller kit contains six sets of different size puller arms, two spindles and one handle packed in a carrying case.

The puller is suitable for use in both blind housings and shaft applications. The SKF TMMD 100 is suitable for dismounting up to 71 different SKF deep groove ball bearings, with shaft diameters ranging between 10 and 100 mm (0.4–3.9 in.).

The rubber cap allows easy and quick attachment of the arms to the spindle. It also prevents the puller arms from detaching from the spindle during operation.
