Tabor Electronics LS3084R 3GHz Four Channel Signal Generator 19″ 1U Rack Module

3GHz Four Generator Flixible modular platform for OEM and custom requirements Extremely fast switching speed of <100μs Remotely programmable via MATLAB, Python, LabVIEW AM, FM, PM Sweep & Pulse Modulation SPI and micro-USB integrated interfaces *image shown is for illustration purpose only

The all-new Lucid Series offers the most advanced features and industry leading performance in the most compact form factor. The series feature 3, 6 and 12 GHz single channel versions, all sharing the very same industry leading highlighted features, in a compact, small footprint module. Featuring extremely fast switching speed, superior signal integrity and purity, all the necessary modulated signals for analog communication systems, with built in SPI and micro-USB interface, the Lucid Series is designed to meet today’s most demanding specifications, needed from the R&D benches to the production lines.

Extremely Fast Switching
In today’s world, time is a crucial factor, whether in design, on the production floor or inside ATE systems. With a switching speed of less than 100µs, Tabor’s All-New Lucid Series ensures maximum measurements at minimum time, setting the industry’s highest throughput standard.

Signal Integrity and Purity
One of the most important requirement in today’s test and measurement applications is high signal quality. With a typical SSB phase noise of -145dBc/Hz at 100MHz, and -132dBc/Hz at 1GHz, at 10 kHz carrier offset, Tabor’s All-New Lucid Series platform delivers one of the best quality signals available on the market today, answering the ever-growing demand for clear and precise signals.

Modulation Schemes
Signal bursts and chirps have become common need in the daily life of any aerospace or defense application. With Tabor’s All-New Lucid Series, any pulse modulation is possible, no matter if its “narrow” or “standard” pulse need. On top of its outstanding pulse modulation performance, the Lucid Series is also equipped with many CW interferers, and modulated signals such as AM, FM, PM and Sweep.

Multiple Ways to Control the Unit & Write Code
Tabor’s Lucid Series comes with its own dedicated software to control the instrument functions, modes and features via a graphical user interface (GUI) as well as a complete set of drivers, allowing you to write your application in various environments including LabVIEW, Python, CVI, C++, VB and MATLAB. You may also link the supplied dll to other Windows-based API’s or use low-level SCPI commands to program the instrument, regardless of whether your application is written for Windows, Linux or Macintosh operating systems.

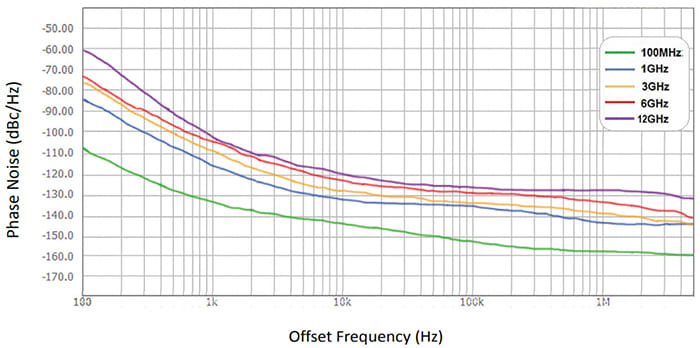

Phase Noise Plot
