TekBox TBL05100-1 – 5UH Line Impedance Stabilization Network LISN – CISPR 16

• Topology: single path, configurable, 50Ω // 5µH + 1Ω, 50Ω // 5µH; the internal capacitor can be disconnected for ISO 7637-2 and DO-160 setups; an external 10µF capacitor is available for DO-160; the LISN is factory setup to 50Ω // 5µH + 1Ω, other configurations require setting of an internal high current jumper
• Supported standards: CISPR 16-1-2, CISPR 25, MIL-STD-461G, DO-160, ISO11452-4 and ISO 7637-2
• Characterized frequency range: 10 kHz – 400 MHz
• DC Resistance: < 5 mΩ Source+ to EUT+; < 5 mΩ Source- to EUT
• Maximum current: 100A; see a plot with heat-up characteristics, chapter 8

TBL05100-1 5UH LINE IMPEDANCE STABILISATION NETWORK LISN – CISPR 16

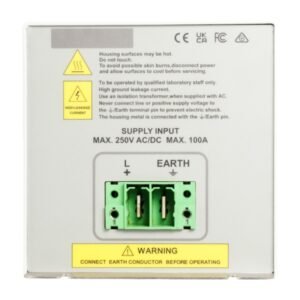

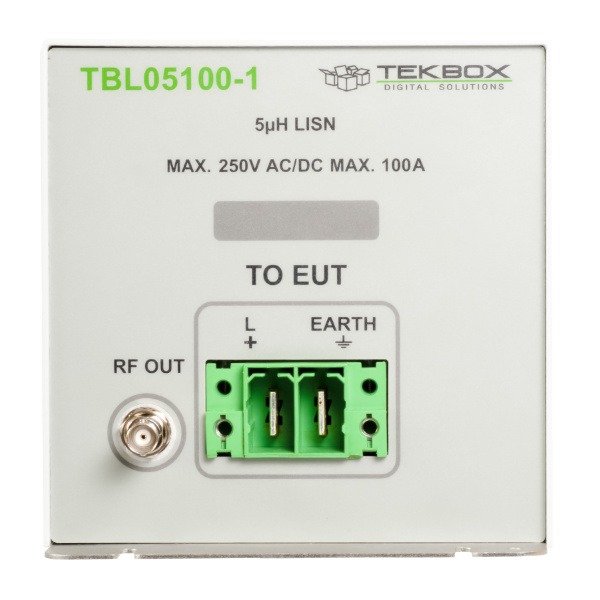

The TBL05100-1 is a universal 5µH LISN that meets the requirements of several standards. The TBL05100 is factory jumpered to 50Ω // 5µH + 1Ω, fulfilling the CISPR 16-1-2 and CISPR 25 impedance, phase isolation specification. By setting the internal jumper, it can be converted into 50Ω // 5µH variants that support standards such as CISPR 25, MIL-STD-461G, ISO11452-4 and ISO 7637-2. By adding an external 10F capacitor, the impedance will fulfil DO-160 specifications.

The LISN is inserted into the EUT’s (Equipment Under Test) supply line. Conducted noise at the EUT’s supply terminals can be monitored at the BNC connector with a spectrum analyzer or a measurement receiver. A 5µH inductor decouples the source (supply) terminal from the EUT terminal.

The use of two TBL05100-1 in conjunction with the Tekbox LISN Mate allows for the measurement of common mode and differential mode noise separately. The unit comes equipped with a BNC-male to N-male RG232 cable, mating connectors and ground brackets to attach it to a ground plane.
