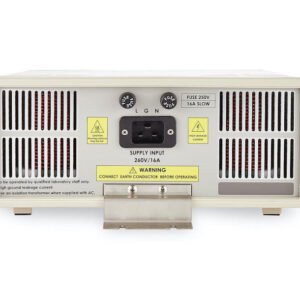

TekBox TBL5016-2-US 2 Line Impedance Stabilization Network LISN 50uH / 16A (US Version)
14 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
50uH 32A Line Impedance Stabilisation Network LISN
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω / (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω / 50 µH
- Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
- Air core inductors
- Line voltage: max. 240V / 50 – 60 Hz, CAT II
- Max. current: 16A @ 23°C
- DUT socket: country specific
- Measurement connector: 50 Ω BNC
Guarantee Safe and Secure Payment Checkout
Description
TekBox
TBL5016-2-US Line Impedance Stabilisation Network LISN, 50uH 16A
- Frequency range: 9 kHz to 30 MHz
- Impedance: 50 Ω / (50 µH + 5 Ω)
- Artificial hand: 220 pF + 511 Ω
- Switchable PE: 50 Ω / 50 µH
- Limiter / attenuator: 150 kHz to 30 MHz; 10 dB
- Air core inductors
Description
The TBL5016-2 is a Line Impedance Stabilization Network for the measurement of line-conducted interference within the range of 9kHz to 30MHz, according to the CISPR 16-1-2 standard.
The device is designed for testing single phase, AC-powered equipment with supply voltages up to maximum 240V and 16A.
Conducted noise can be measured on the phase and on the neutral conductor. The TBL5016-2 is equipped with a switchable limiter/attenuator and an artificial hand connection.
The device is available with country-specific DUT connectors.
Application
EMC conducted noise measurements
Product General Attributes | |
|---|---|
| Shipping Weight | 6 LBS |
| HTS/Schedule B Number | 9030908961 |
| ECCN Number | EAR99 |
| Country of Origin | Vietnam |
