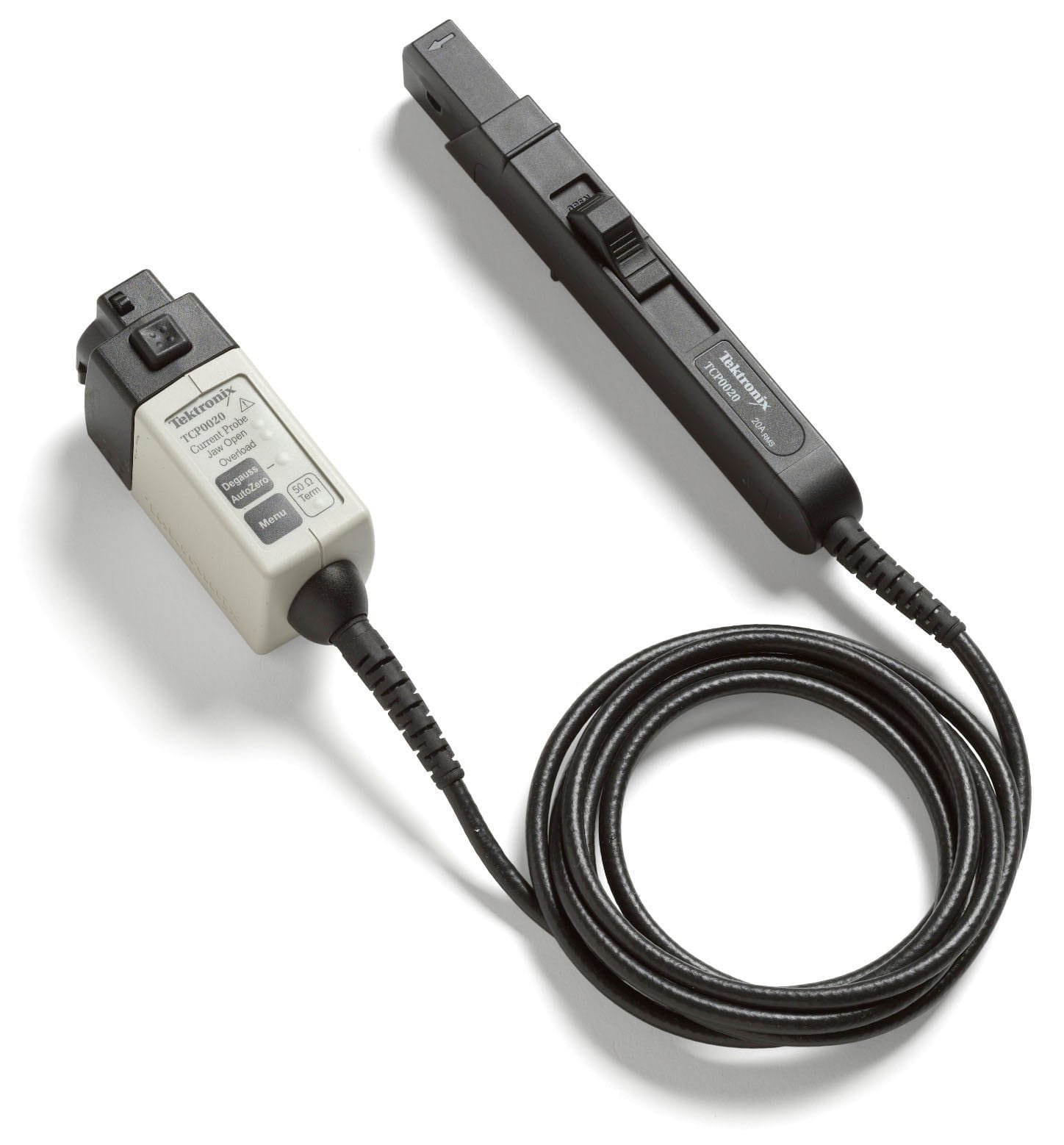

Tektronix TCP0020 – 20 Amp AC/DC Current Probe
34 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Probe, AC/DC Current; 20 Amp; 50 MHz BW; TekVPI Interface; Certificate of Traceable Calibration Standard
- Maximum Current
- DC: 20 A
- Max RMS: 20 A
- Peak Current: 100 A
- Minimum Current: 10 mA
- Bandwidth: 50 MHz
- Rise Time: < 7 ns
- 100 A Peak Pulse Current Capability
- Connects Directly to Oscilloscopes with the TekVPI™ Probe Interface
- Provides Automatic Units Scaling and Readout on the Oscilloscope Display
- One-button Degauss and AutoZero Control for Ease of Use
- Easy Access to Scope-displayed Probe Menu for Probe Setup Control and Operating Status Information
- Remote Control Capability through TekVPI Oscilloscope
- Easy-to-Use and Accurate AC/DC Current Measurements
- DC to >50 MHz Bandwidth
- Core Jaw Diameter of 5 mm (0.2 in.)
- Accurately Measures Current Levels as Low as 10 mA per Division
- High Accuracy with Typically Less than 1% DC Gain Error
- Split-core Construction allows Easy Circuit Connection
- Low Noise and DC Drift
Guarantee Safe and Secure Payment Checkout
Description
Tektronix TCP0020 – 20 Amp AC/DC Current Probe
- Maximum Current
- DC: 20 A
- Max RMS: 20 A
- Peak Current: 100 A
- Minimum Current: 10 mA
- Bandwidth: 50 MHz
- Rise Time: < 7 ns
- 100 A Peak Pulse Current Capability
The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.
These AC/DC current probes provide sufficient performance to support 50 MHz measurement system bandwidth. The TCP0020 and TCP2020 provide a maximum 20 ARMS measurement range, while the TCP202A provides a maximum 15 ADC + Peak AC measurement range. These probes also provide excellent accuracy to current levels as low as 10 mA, important for meeting today’s challenging current measurement needs.
Applications
- Power Supplies
- Semiconductor Devices
- Power Inverter/Converters
- Electronic Ballasts
- Industrial/Consumer Electronics
- Mobile Communications
- Motor Drives
- Transportation Systems
Product General Attributes | |
|---|---|
| Warranty | 1 YEARS |
| Safety Approval | CSA |
| Shipping Weight | 2 LBS |
| Country of Origin | China |
