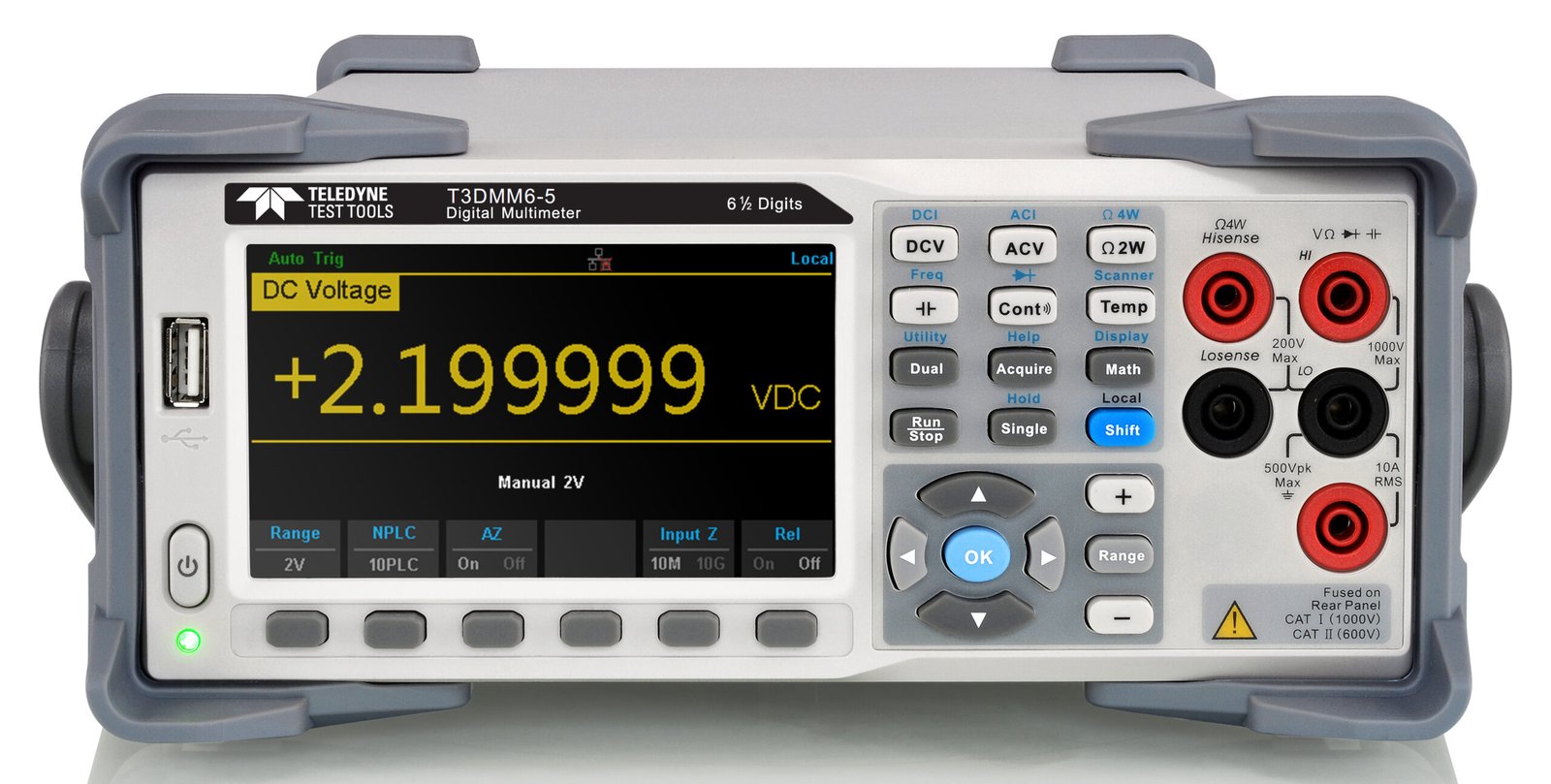

Teledyne LeCroy T3DMM6-5 – Digital Multimeter, 6.5 Digit

Teledyne LeCroy T3DMM6-5 is a 6½ digit digital multimeter incorporating the latest 4.3 inches (10.92cm) dual-display technology which can be configured to show data histograms, Data fluctuation Trends, Bar Graph, Statistics, or the traditional Number mode, all in an easy to use interface. A great feature of the Teledyne LeCroy T3DMM6-5 is its ability to make highly accurate True RMS AC Voltage and Current measurements, meaning no loss of accuracy even when measuring complex voltage and current waveforms. The T3DMM6-5 is especially well suited for the needs of High precision multifunctional environments, as well as supporting a full range of automatic measurements.

Basic Measurement Function

• DC Voltage: 200 mV ~ 1000 V
• DC Current: 200 μA ~ 10 A
• AC Voltage: True-RMS, 200 mV ~ 750 V
• AC Current: True-RMS, 200 μA ~ 10 A
• 2/4-Wire Resistance: 200 Ω ~ 100 MΩ
• Capacitance: 2 nF ~ 100 mF
• Continuity Test: Range is fixed at 2 kΩ
• Diode Test: Adjustable range is 0 ~ 4 V.
• Frequency Measurement: 3 Hz ~ 1 MHz
• Period Measurement: 1 μs ~ 333 ms
• Temperature: Support for TC and RTD sensor
• Max, Min, Average, Standard Deviation, dBm/dB, Relative Measurement, Pass/Fail Histogram, Trend Chart, Bar Graph
