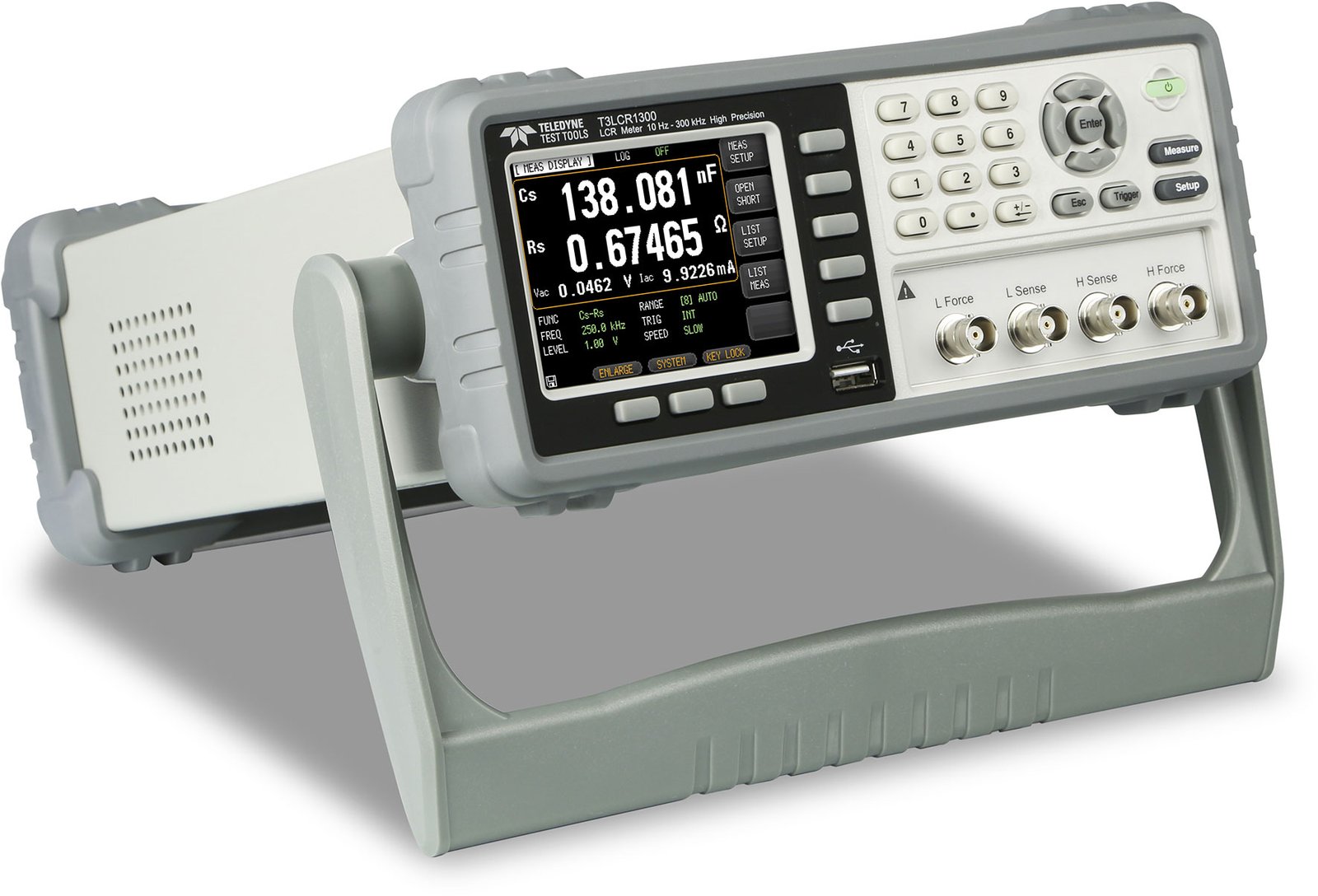

Teledyne LeCroy T3LCR1100 – LCR Meter, 10Hz – 100KHz High Precision

Teledyne LeCroy T3LCR1100 – LCR Meter, 10Hz – 100KHz High Precision

Consecutive Frequency and Convenient Zero Function

The T3LCR series, within the provided frequency range, features consecutive and adjustable frequency capability which allows users to conduct measurement and analysis on components with the most genuine frequency requirements. For OPEN/ SHORT fixture compensation function, the T3LCR series is equipped with full frequency range zero and spot zero selections. After executing full frequency range users can freely change test frequency to execute component measurements without having to power off the instrument or changing the test fixture. This allows for a faster measurement time during repeated zeroing operations.

Rich and Diverse Information Display

The measurement result display of the T3LCR series not only displays major and secondary measurement parameters but also includes two monitoring parameters. Therefore, four DUT related parameters can be simultaneously shown on the display screen to save time if repeated measurements are required. With respect to display screen, the T3LCR series features diverse display to meet user observation requirements. For instance, MEAS display shows setting parameters and measurement results at the same time; ENLARGE display focuses on measurement results and PASS/FAIL judgment is available, which assists engineers to swiftly obtain the validity of measurement results.

Diverse Ancillary Measurement Functions

To satisfy the diverse measurement application requirements for different components and materials, the T3LCR series offers many auxiliary measurement functions.

Automatic Level Control (ALC) function is mainly for components which requires a constant or rated test voltage such as multilayer ceramic capacitor (MLCC).

An internal D.C. bias voltage (±2.5V) allows simulating A.C and D.C simultaneously to measure the capacitance variation.

For measurements involving inductors, the D.C. resistance measurement function allows the user to validate D.C. Resistance characteristics.

Additionally, the Auto LCZ function helps in selection of proper measurement parameters automatically. The Auto LCZ function, when activated will automatically determine the characteristics of the DUT and display the optimum measurement parameters.

10 Points Listed Tests and PC Software

The T3LCR series provides the 10 points listed test function, which allows users to define a set of DUT measurement parameters (such as Cs-Rs) and to set 10 test criteria of category (either by frequency or by voltage or by current) but different values to conduct measurements. Through this function, users can rapidly and clearly obtain DUT ‘s characteristic variation trend to determine the adaptability of DUT ‘s practical applications. The measurement results can be recorded directly in the internal memory and be transferred to the PC through USB. The T3LCR series also provides free PC software (maximum 1,000 points listed tests) in order to satisfy users’ analytical requirements on delicate variation.

Standard Interface

For interface connectivity, the T3LCR series comes equipped with Handler interface, RS-232C and USB interface. Handler outputs 10 BIN (9BIN, AUX: 1BIN) sorting results that is best for external connection control, for instance, connecting to a sorting machine to conduct components ‘sorting operation. RS-232C and USB is suitable for remote control and measurement results retrieval. The PC gives commands to control settings or to read measurement results so as to achieve the requirements of verifying automotive applications.
