Teledyne LeCroy T3PM1006 – AC/DC Single Phase Digital Power Meter (6 kHz)

• DC to 6 kHz Voltage/Current test frequency
• 4” TFT LCD display
• Two numerical display modes: General mode and simple mode
• Meets the requirement for IEC 62301 power measurement
• Voltage/current test frequency bandwidth: DC – 6kHz

Teledyne Test Tools T3PM1006 is a digital power meter for single-phase (1P/2W) AC power measurements with a test Bandwidth of DC, 45 Hz to 6 kHz. The T3PM1006 features a 4” TFT LCD screen with a five-digit measurement display. It offers 19 power measurement parameters, integration measurement function, front/rear panel input terminals, and various communication interfaces to help users make convenient and accurate power measurements.

The rated direct input voltage of T3PM1006 is 600 V, and the input current is 20 A. The minimum current level is 5 mA (resolution up to 0.1 μA), and the power measurement resolution is 1 μW. The crest factor can reach 3 (half measurement range can get 6 or 6 A), and the voltage/current/power measurement capability can reach ± 0.1 % reading ± 0.1 % level. Different measurement modes can be selected and offer up to 19 relevant parameters for power measurement. The T3PM1006 can measure general products’ power consumption and the standby power consumption of low-power devices that require a more significant range and accuracy.

In addition, the T3PM1006 offers PT/CT rate functions for large voltage/current measurement applications. High voltage measurements can be done using a VT rate-setting and an external voltage Potential Transformer. Current measurements above 20 A can be done by connecting the Current Transformer (current output type) directly to the existing input terminal on the rear panel and setting the appropriate CT ratio state in the Ratio configuration menu.

T3PM1006 provides RS-232C, USB device (virtual COM), and LAN communication interfaces for remote control applications. USB host supports screen capture, accessing data stored in internal memory, and firmware updates.

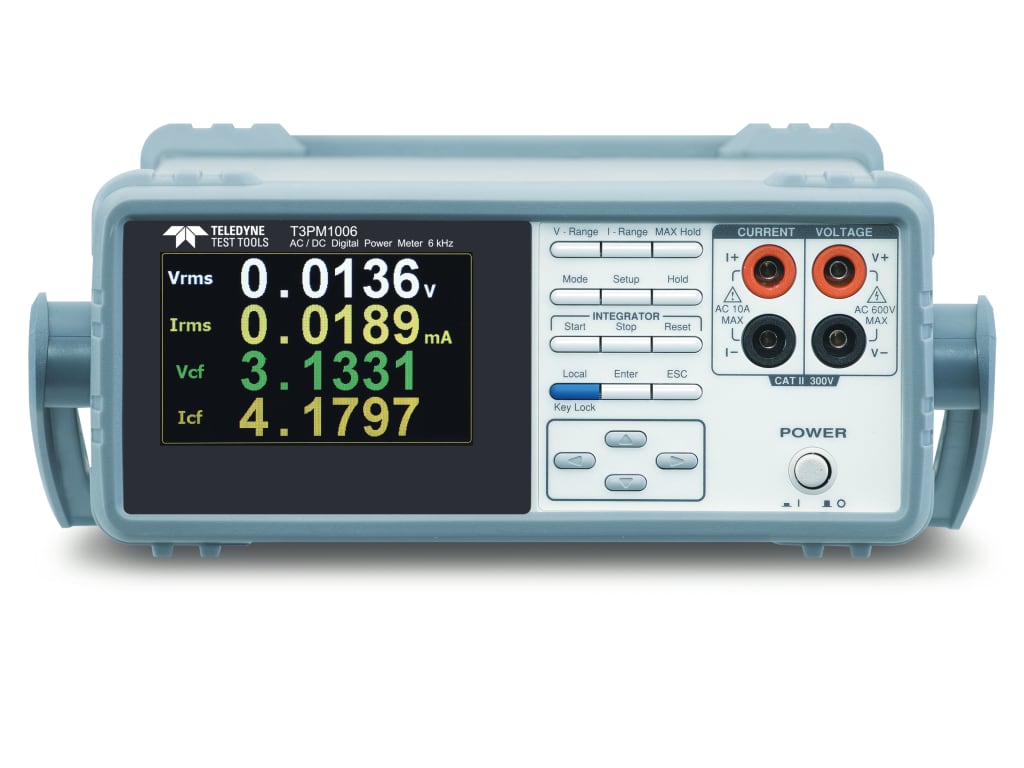

1. 4” TFT LCD Display

2. Display 8 or 4 Measurement Parameters

3. Operation Key

4. Navigator Key

5. Front Panel Input Terminal (< 10 A)

6. Rear Panel Input Terminal

7. Standard Interfaces: RS-232C, LAN, USB Device

8. Universal Input Power

T3PM1006 provides two display modes for various measuring situations. The standard method displays eight measurement parameters (2 major measurements + 6 secondary sizes) and related measurement setting parameters, ideal for R&D, design, and engineering verification applications. Simple mode displays four measurement parameters that can be useful in production environments.

T3PM1006 provides various measurement functions such as voltage, current, frequency, active power, apparent power, reactive power, power factor, crest factor, and total harmonic distortion measurement.

T3PM1006 is also equipped to measure the time integral of power or current for the DUT. Users can set a time window to perform instantaneous power integration at specified intervals and then divide the value by the total period to obtain the average power of the DUT.

LowCurrent Range & High-Resolution T3PM1006 offers a measurement frequency bandwidth of DC-6 kHz, minimum current level of 5 mA (resolution: 0.1 μA), power measurement resolution of 1 μW(1 μW for minimum current and voltage levels; 1 mW for maximum current and voltage levels). According to IEC 62301/EN 50564 standards, these parameters meet the test requirement and can measure the standby power consumption of low-power devices.

PT/CT Connection T3PM1006 offers PT/CT rate functions for large voltage/current measurement applications. High voltage measurements can be done using a VT rate-setting and an external voltage Potential Transformer. Current measurements above 20 A can be done by connecting the Current Transformer (current output type) directly to the existing input terminal on the rear panel and setting the appropriate CT ratio state in the Ratio configuration menu.
