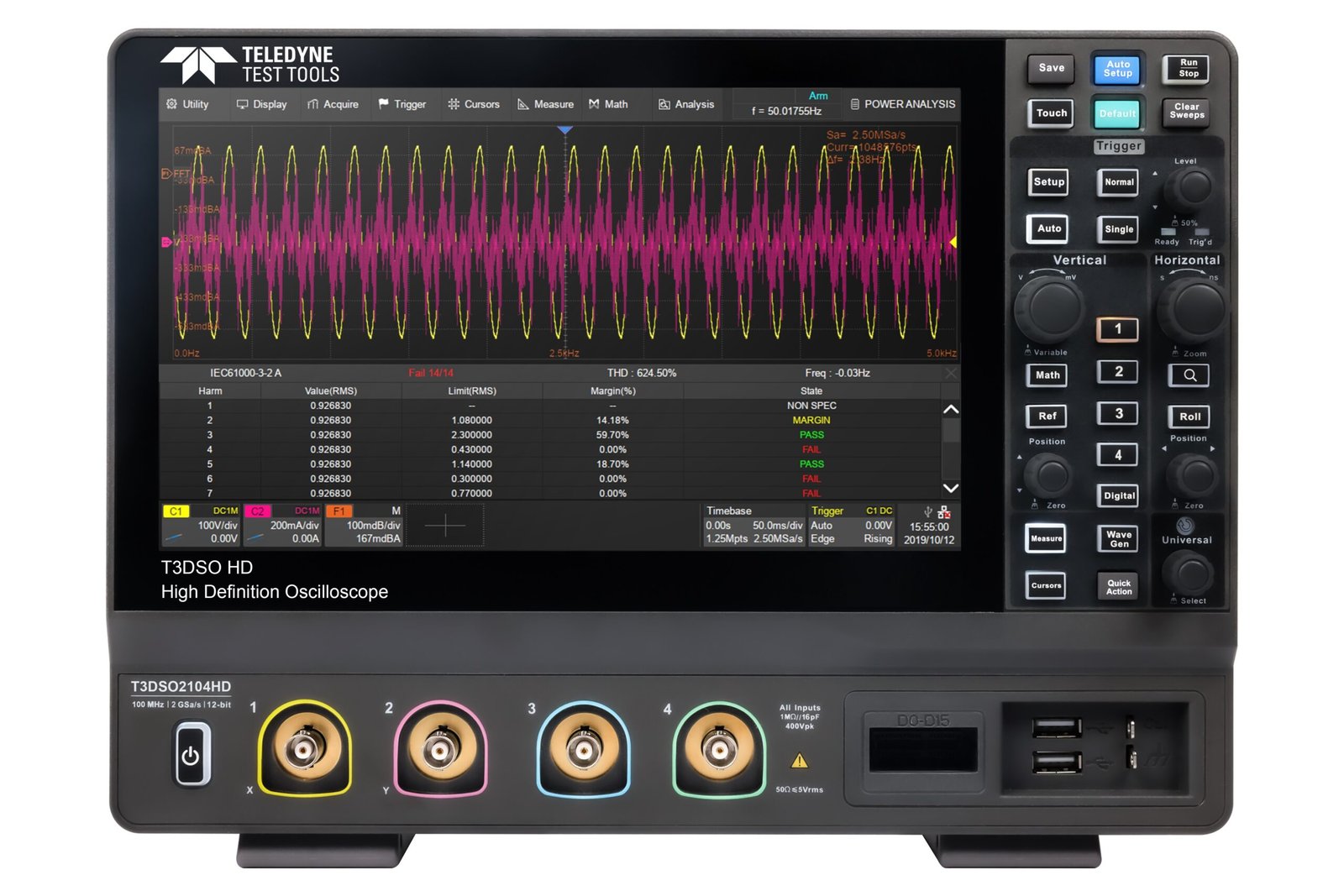

Teledyne Test Tools T3DSO2104HD – Digital Oscilloscope (4 Channels/100 MHz)

• Bandwidth: 100 MHz
• Channels: 4
• Resolution: 12-bit
• Sample rates: 2 GSa/s (interleaved), 1 GSa/s (non-interleaved)
• Memory depth: 200 Mpts/ch (interleaved), 100 Mpts/ch (non-interleaved)

Teledyne Test Tools T3DSO2000HD Digital Oscilloscopes are available in bandwidths of 100 MHz, 200 MHz and 350 MHz, have maximum record lengths of 200 Mpts/ch, and display 4 analog channels. The MSO versions (models ending in -MS) can display 16 digital channels; you may also add this functionality to a non-MSO version by purchasing the T3DSO2000-LS logic probe set. The T3DSO2000HD series employs the latest technology which features a maximum waveform capture rate of up to 100,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), a 256-level intensity grading display function plus a color temperature display mode.

This series employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Histogram allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the T3DSO2000HD.

The large 10.1’’ display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.

The T3DSO2000HD series oscilloscopes are available in multiple bandwidths. They can also function as mixed-signal oscilloscopes when paired with the T3DSO2000-LS logic probe set. This probe set can be purchased separately, or it can be included as part of a discounted package (model numbers ending in -MS). See table below for details.

12-bit resolution shows you more details and less noise on the waveform. Sample rates are 2 GSa/s (interleaving mode) or 1 GSa/s (non-interleaving mode).

Using a hardware-based Zoom technique and a record length of up to 200 Mpts (interleaved), users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.

Trigger functions include Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay, and serial trigger.

The built-in waveform generator can output waveforms with up to 25 MHz frequency and ±3 V amplitude. Six basic waveforms together with multiple types of predefined waveforms and user-defined arbitrary waveforms are supported.

If waveforms greater than 25 MHz are needed, see the Teledyne Test Tools T3AFG series of function generators on the Accessories section of this webpage.

The oscilloscope can control the built-in waveform generator or a stand-alone Teledyne Test Tool generator to scan the amplitude and phase-frequency response of the DUT and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications.

Four analog channels plus 16 digital channels enable users to acquire and trigger the waveforms then analyze the pattern, simultaneously with one instrument.

A. Digital channel waveform display, which shares the same grid area with the

analog channels.

B. Digital channel descriptor box

C. Dialog box

D. Digital channel indicators. Up to 16 digital channels are organized in two groups with different thresholds: D15-D8 and D7-D0. Every channel can be turned on or off individually.

E. Labels can be set to data, address, or custom characters.

F. Digital bus
