Tempo 1157-5001 – Sidekick Plus ADSL Far-End Device

Tempo 1157-5001 – Sidekick Plus ADSL Far-End Device

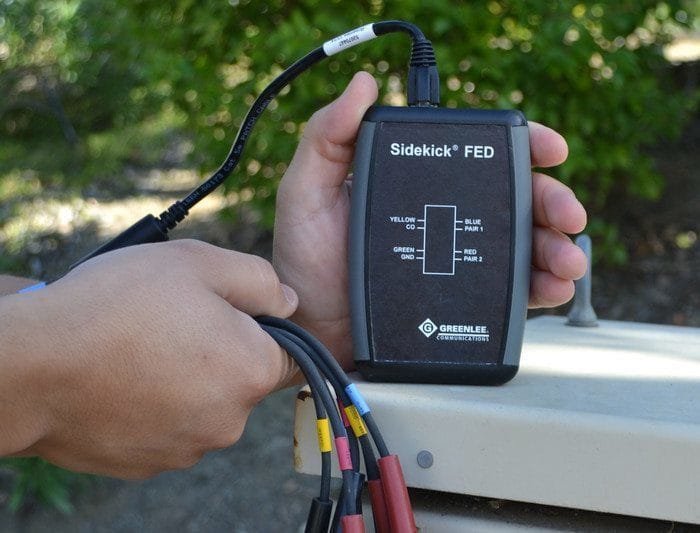

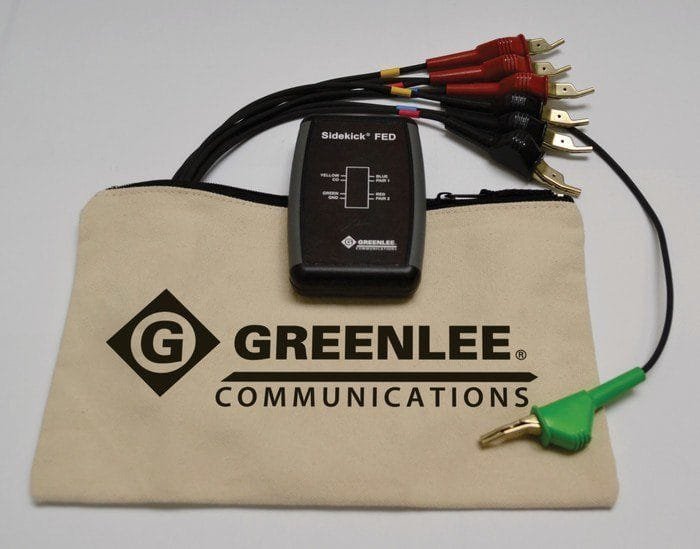

The Tempo 1157-5001 is designed for use with the Sidekick Plus as a complete ADSL testing solution. It helps technicians diagnose and troubleshoot problems with twisted pairs at the far end of the cable, as well as install, qualify, and maintain ADSL services.

Features include:

• K-Test – Far-End-Device straps the pair under test
• TDR – Far-End-Device can alternately short and open the pair to verify the end-of-line
• Noise – Far-End-Device provides a line termination
• Loss – Far-End-Device provides single or multiple reference tones
• Longitudinal Balance – Far-End-Device provides an IEEE 455-1985 Longitudinal Balanced Termination
• Autotest – The Sidekick Plus manages the operation of the Far-End-Device during the test sequence
• Short Pair – Verifies loop length
• Short Pair to Ground – Determines pair resistive balance
• Remote activation via Sidekick Plus
• Ability to connect and disconnect Central Office and Customer Premise equipment
• Supports Second Pair Testing
• Generates tones for pair ID and pair tracing
• Capability to generate tones over a range of frequencies from POTS to ADSL
