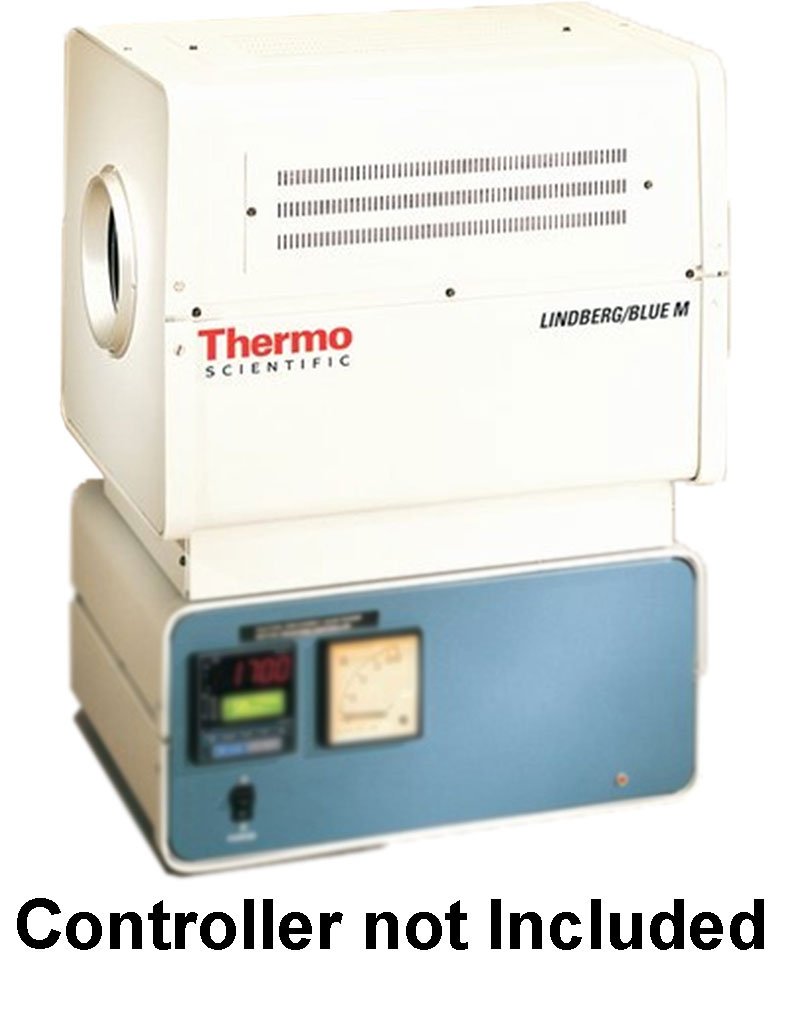

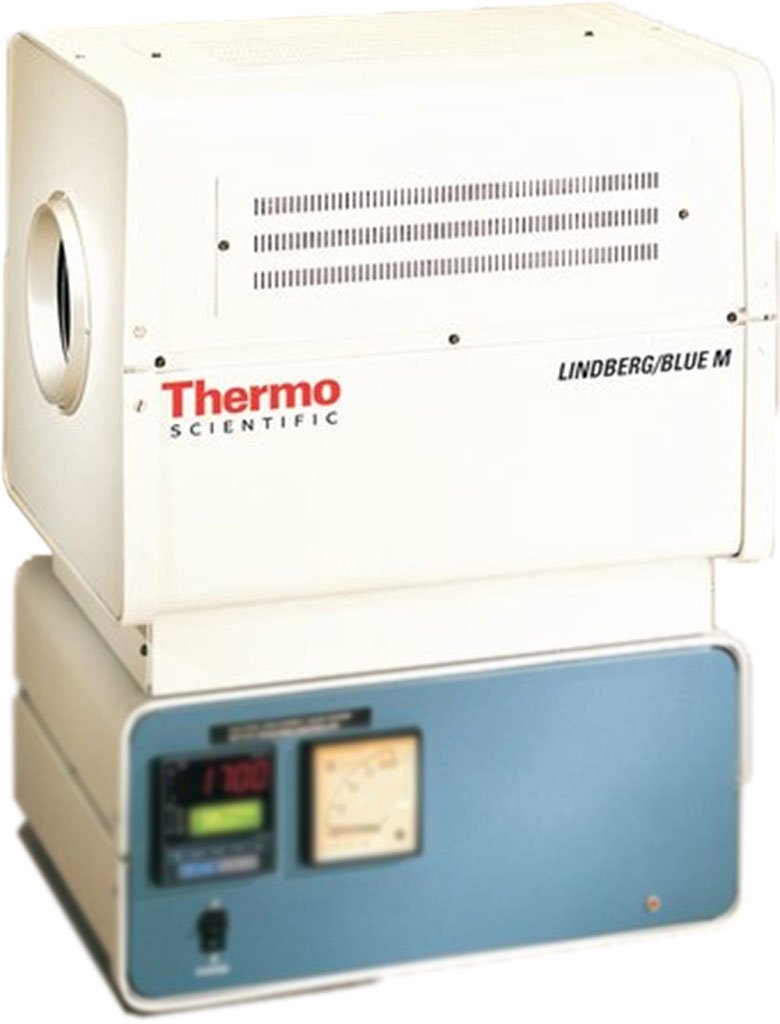

Thermo Scientific LBM 1700C Tube Furn 1ZN, Lindberg/Blue M 1700 deg C Tube Furnace, Solid Door

Thermo Scientific LBM 1700C Tube Furn 1ZN, Lindberg/Blue M 1700 deg C Tube Furnace, Solid Door

• Lindberg/Blue M 1700 deg C Tube Furnace
• Solid Door, 1 zone, 208/240V 50/60Hz

Features:

• Heating elements tolerate rapid cycling over extended periods; elements are easily replaceable without the need to match resistance values
• Type “B” thermocouples assure accurate temperature measurement and long thermocouple life; 10′ compensated lead wire with polarized plug included
• Moldatherm graduated density insulation adds to safety and performance by forming enhanced insulation protection between the high-temperature chamber and exterior cabinet surface
• Double-shell construction and convection cooling design reduces exterior surface temperature
• Removable louvered panels provide easier access to heating elements and thermocouple
• Temperature range: 500°C to 1700°C

Achieve rapid heat up, recovery and cool down with a tube furnace that delivers outstanding energy release, reducing thermal process cycle time. Thermo Scientific Lindberg/Blue M 1700°C Tube Furnaces feature heating elements with unique right-angle bend and sidewall mounting to deliver exceptional energy release, reduced thermal process cycle time, and cost savings through quicker throughput. Thermo Scientific Moldatherm graduated-density insulation provides safety, performance and outstanding radial and linear temperature uniformity with resistance to thermal shock.

Requires:
Independent digital temperature control module, available separately.
