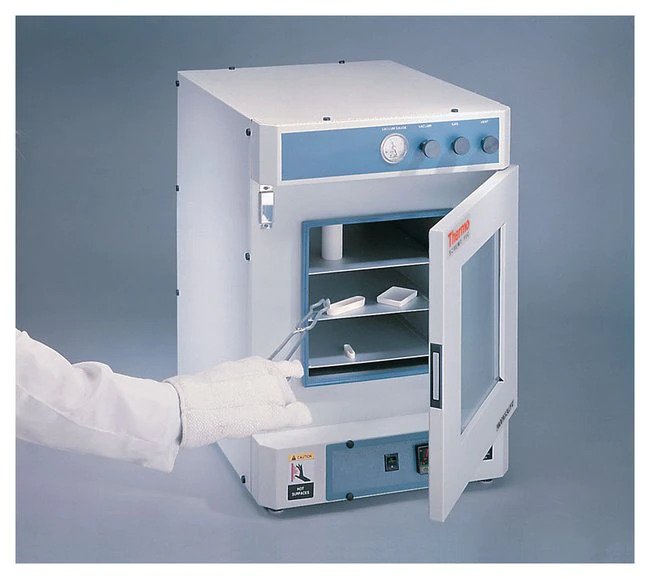

Thermo Scientific Lindberg VO 127L 260C – Blue M Vacuum Oven, 127.4L, 260C, Stainless Steel Chamber, Painted Cabinet, 120V 50/60Hz

• 127.4L Chamber Size
• Ambient +6C to 260C
• Stainless Steel Chamber
• Painted Cabinet
• 120V 50/60Hz

Developed for industrial, life science and general laboratory use requiring higher performance standards than conventional ovens, Lindberg/Blue M vacuum ovens feature digital controls, laboratory-grade cabinet construction and operational features which offer improved safety, quality, convenience, and high-drying performance.

These ovens work well with a range of applications including drying, curing, outgassing, aging, process control and other applications requiring elevated temperature in reduced atmospheres or vacuum/purge with non-flammable and inert atmospheres.

• 127.4L Chamber Size
• Ambient +6C to 260C
• Stainless Steel Chamber
• Painted Cabinet
• 120V 50/60Hz
• Heating technology: Jacket heating
• Independent over-temperature safety system factory set with reset push-button
• Alternative 3/8in (9.5mm) vacuum connection included
• 1/4in (6.4mm) inert gas connection for non-flammable, non-corrosive inert gases and separate vent port located on back
• Vacuum, gas, and inlet valves conveniently located on front
• Vacuum capability: 1.33 mbar
• Aluminum shelves for fast heat transfer; removable

Single-Setpoint Digital Microprocessor Control

• Maximum temperature: 260C (500F) with nominal uniformity of +/-3.5% of setpoint
• Simultaneous LED display of setpoint and actual temperature with a push-button view; resolution to within 1C
• Keypad data entry and pull-out control module for easy service
• Independent overtemperature safety system factory set with reset pushbutton

Vacuum System

• 25.4mm (1in) manifold at rear of unit connects to pump (not included) or in-house vacuum source, can also be used as port
• With inert gas injection valve, fresh air inlet, vacuum exhaust port, controllable vacuum release vent port
• 1000 microns (1 torr) capacity
• Vacuum gauge, vacuum, gas, and inlet valves located on front

Construction

• Corrosion-resistant stainless-steel cabinet includes three aluminum shelves with stainless-steel finish
• Rear-mounted vacuum manifold connects to pump (not included) or in-house vacuum source
• Low-watt heating element extends oven life
• Heavy-gauge steel, dual-wall construction with fiberglass insulation for minimum heat loss in walls and door
• High-temperature silicone gasket for a positive seal; Buna N seals available for applications below 150°C that require no silicone
• Magnetic latch for positive door seal (4.5cu.ft. capacity models include mechanical latches)
• Viewing windows: 0.5in (1.3cm) thick in two smaller capacity models or 0.75in (1.9cm) thick in 4.5cu.ft. model; permit observation of work in progress without loss of heat
• Stainless-steel exterior models come with a double door—a solid outer door over inner window door
