TPI 183aC3 – HVAC DMM/Clamp Meter kit
10 people are viewing this product right now
Original price was: $274.94.$252.94Current price is: $252.94.
Shipping calculated at checkout.
Estimated delivery:3 days

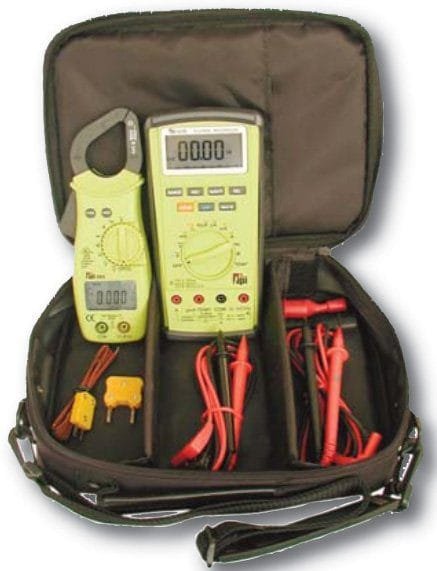

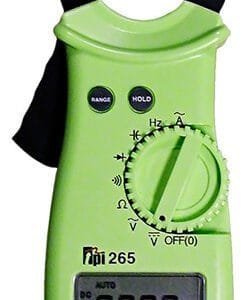

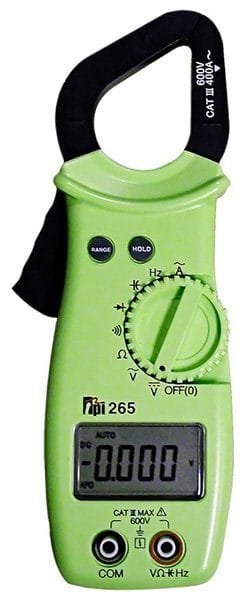

HVAC DMM/Clamp Meter kit (includes 183a and 265)
- HVAC DMM/Clamp Meter kit
- Trouble shoot ECMs and VFDs
- Measure duty cycle (% pulse width modulation) on modulating gas valves
- Test flame sensors
- Check capacitors
- Measure temperature rise
- Test thermocouples in furnaces or gas applications
- Measure heat anticipator current in thermostats
- Check line and control voltages
- Test heating element and compressor winding resistance
- Measure ambient and duct temperatures
Guarantee Safe and Secure Payment Checkout
Description
TPI 183aC3 – HVAC DMM/Clamp Meter kit
- Trouble shoot ECMs and VFDs
- Measure duty cycle (% pulse width modulation) on modulating gas valves
- Measure heat anticipator current in thermostats
- Test heating element and compressor winding resistance

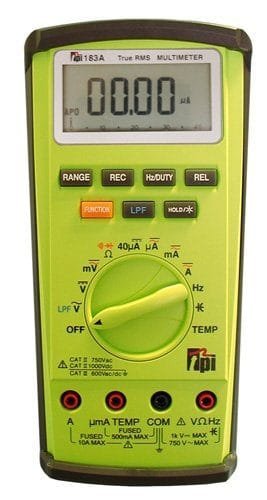

The 183 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to the basic functions of ACV, DCV, ACA, DCA, Diode Test, and Continuity, the 183 measures Frequency (Hz) and Capacitance. The 183 also has RS232 output and software for recording information into a PC.
The 183A also features:
- REC – Records Min/Max and Average readings during specified measurement intervals. Time reference can also be displayed to determine when the values were recorded.
- COMP – Compare the actual reading to preset HI and LOW values for Pass/Fail to test of components.
- HOLD – Two-hold system automatically holds the previous stable reading when a new one is obtained.
Applications
- Test run and start capacitors
- Measure ambient and duct temp
- Test control (thermostat, thermocouple, flame safety) and line voltages
- Measure resistance and test for continuity
- Line current up to 10 amps (in series)
Clamp Meters/Clamp Meters Template | |
|---|---|
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
Product General Attributes | |
| Shipping Weight | 3.05 LBS |
| Country of Origin | Korea |
