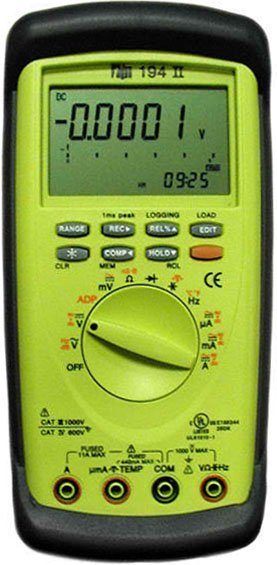

TPI 194 – Auto-Ranging, True RMS Digital Multimeter
31 people are viewing this product right now
Original price was: $285.94.$263.06Current price is: $263.06.
Shipping calculated at checkout.
Estimated delivery:5 days
True RMS 50,000 count DMM w/ CAT IV, 1000V rating
- Large 50,000 count display increases resolution and improves accuracy (1.7″ x 2.75″, 43mm x 70mm
- Triple Display shows more than one reading simultaneously
- 51 Segment Analog Bar Graph to catch fast AC fluctuations
- Back Light (LED Type) allows viewing in any light condition
- Auto Range automatically selects the best range for the measurement
- Separate battery and fuse compartment for easy replacement
- True RMS needed to accurately measure nonsinusoidal AC voltage and current waveforms found on controls and circuits
- Increased safety with Silicone rubber 1,000V CAT III, 600V CAT IV, 10A test leads (CE & cUL listed)
- Auto Power Off DMM will automatically power down after approximately 15 minutes of inactivity to extend battery life. Disable Auto Power Off: Hold down the REC button and turn the meter on.
- Diode Test displays approximate forward bias voltage
- Continuity and buzzer to check for opens and shorts
- STANDARD ACCESSORIES
- A190 : Protective Boot
- A085 : UL Listed Silicone Test Lead Set with Alligator Clips (Screw On)
- A104 : 0.5 Amp/600V UL Ceramic Fuse for 100 series DMMs (2 each)
- A110 : 10 Amp/600V UL Ceramic Fuse for 100 series DMMs (2 each)
Guarantee Safe and Secure Payment Checkout
Description
TPI 194 – Auto-Ranging, True RMS Digital Multimeter
- Data logging
- 50,000 count display
- 0.05% DCV basic accuracy
- Inductance, Frequency and Capacitance
- 0 to 750 ACV; max resolution 100uV
- 0 to 1,000 DCV: max resolution 0.001mV
- 0 to 50MΩ; max resolution 0.01Ω
- Audible continuity
- AC/DC amps up to10 amps; resolution 0.01 uA
- Analog bar graph
- cULus 61010-1
- CATIII-1000VC, CATIII-1000V, CAT IV-600V, CAT III 1000V
0.05% accuracy*, 50,000 count display, CAT IV 600volts, True RMS DMM.
AC/DC volts, AC/DC amps, resistance, audible continuity, diode test, frequency, capacitance, and temperature Plus: db,inductance, conductance, duty cycle, pulse width and time stamp logging.
The Triple Display 194 is an innovative new concept in DMM design. The unique display enables you to view more than one event at a time. This eliminates the hassle of switching back and forth to review minimum, maximum or preset comparative values. The meter is also easy to use and built to last.
The DMM 194 is a hand-held autoranging DMM. The backlit LCD can display three readings at one time. In addition to basic function of AC/DC V, AC/DC A, Ohm, Diode test, continuity, Capacitance, Frequency, there is the adaptor function. The meter also has RS232 output and software for recording information into a PC.
Features
- REC: Records Min/Max and Average readings during specified measurement intervals.
- COMP: Compare actual reading to preset HI and LOW value for Pass/Fail testing of component
- HOLD: Tow hold system automatically holds the previous stable reading when a new one is obtained.
Applications
- Thermocouples in furnaces or gas applications
- Heat anticipator current in thermostats
- Line voltage
- Control circuit voltage
- Flame safeguard control current
- Heating element resistance (continuity)
- Compressor winding resistance
- Contactor and relay coil resistance
- Continuity of wiring
- Motor start and run capacitance
- Frequency on controls and line voltages
- Record min/max voltage of controls and line voltages
- Temperature with optional temperature adapter (A310)
- Bar graph to indicate rapid fluctuations in measurements
- Voltage of direct drive DC motors
- Measure power supply voltage
- Match components
- Compare readings in circuits and components
- Frequency of line and control voltage
Multimeters Template | |
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.0001 V (0.1 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.001 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 uA (0.00001 mA) |
| Resolution AC Current | 0.01 uA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 uA (0.00001 mA) |
| Resolution DC Current | 0.01 uA (0.00001 mA) |
| Basic Accuracy V DC | .05% |
| # Digit Display | 5 |
| Counts | 50000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes Temperature with optional temperature adapter (A301) |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V CAT Voltage CAT III 1000V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Product General Attributes | |
| Unique Features | CAT IV, .05% accuracy, 50,000 count displyay, time stamped logging, measure inductance, pc communication (optional), measure the DC equivelant of an AC signal |
| Safety Approval | CE, UL |
| Interfaces I/O | USB |
| Product Weight | 1.5 LBS |
| Product Height | 2 IN |
| Product Length | 8 IN |
| Product Width | 4.5 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| Shipping Height | 3.00 IN |
| UPC | 637623001949 |
| Shipping Length | 9.00 IN |
| Shipping Width | 5.75 IN |
| Other Information | Weight: 530g Operating Temp: 0?C to 45?C (-32?F to 113?F) Storage Temp: -20?C to 60?C (-40?F to 140?F) Relative Humidity: 0% to 80%: (0?C to 35?C/32?F to 95?F) 0% to 70%: (45?C to 55?C/95?F to 131?F) Temp Coefficient: 0.1x (Specified Accuracy) per ?C for temperature 18?C to 28?C Power Supply: 9 Volt Alkaline Battery |
