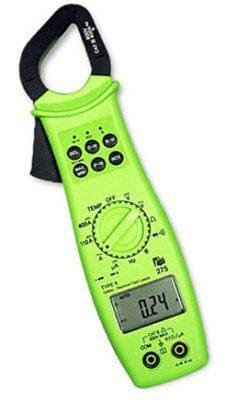

TPI 275 – Digital Clamp Meter
49 people are viewing this product right now
Original price was: $148.44.$136.56Current price is: $136.56.
Shipping calculated at checkout.
Estimated delivery:3 days
Digital clamp meter
- Measure DC amperage of motor drive units
- Measure flame safety control current
- Test run and start capacitors and motors
- Measure motor run current and capture peak motor start up amperage
- Measure heat anticipator current
- Determine thermocouple voltage
- Test line and control voltages
- Measure heating element resistance
- Measure air temperature in ducts
- Test for the presence of voltage in circuits without contacting the circuit
Guarantee Safe and Secure Payment Checkout
Description
TPI 275
- True RMS
- 11,000 count display
- Up to 400 amps AC/DC
- Frequency, Min/Max/Record, Data Hold and Peak Hold
- Hi Voltage Indicator(>30V AC/DC)
Digital Clamp Meter
The slim design 275 is a hand-held, autoranging clamp digital multimeter. Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 275. An affordable choice, the 275 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.
Clamp Meters/Clamp Meters Template | |
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.25 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | Yes |
Product General Attributes | |
| Unique Features | slim jaws (1 1/4″ diameter), non-contact voltage, true RMS, low cost |
| Warranty | 3 YEARS |
| Safety Approval | CE, UL |
| Product Weight | 0.8 LBS |
| Product Height | 1.3 IN |
| Product Length | 10 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Calibration Included | |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| Shipping Height | 2.50 IN |
| UPC | 637623002755 |
| Shipping Length | 14.00 IN |
| Shipping Width | 7.25 IN |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Dimensions | 10 × 2.5 × 1.3 in |
|---|
