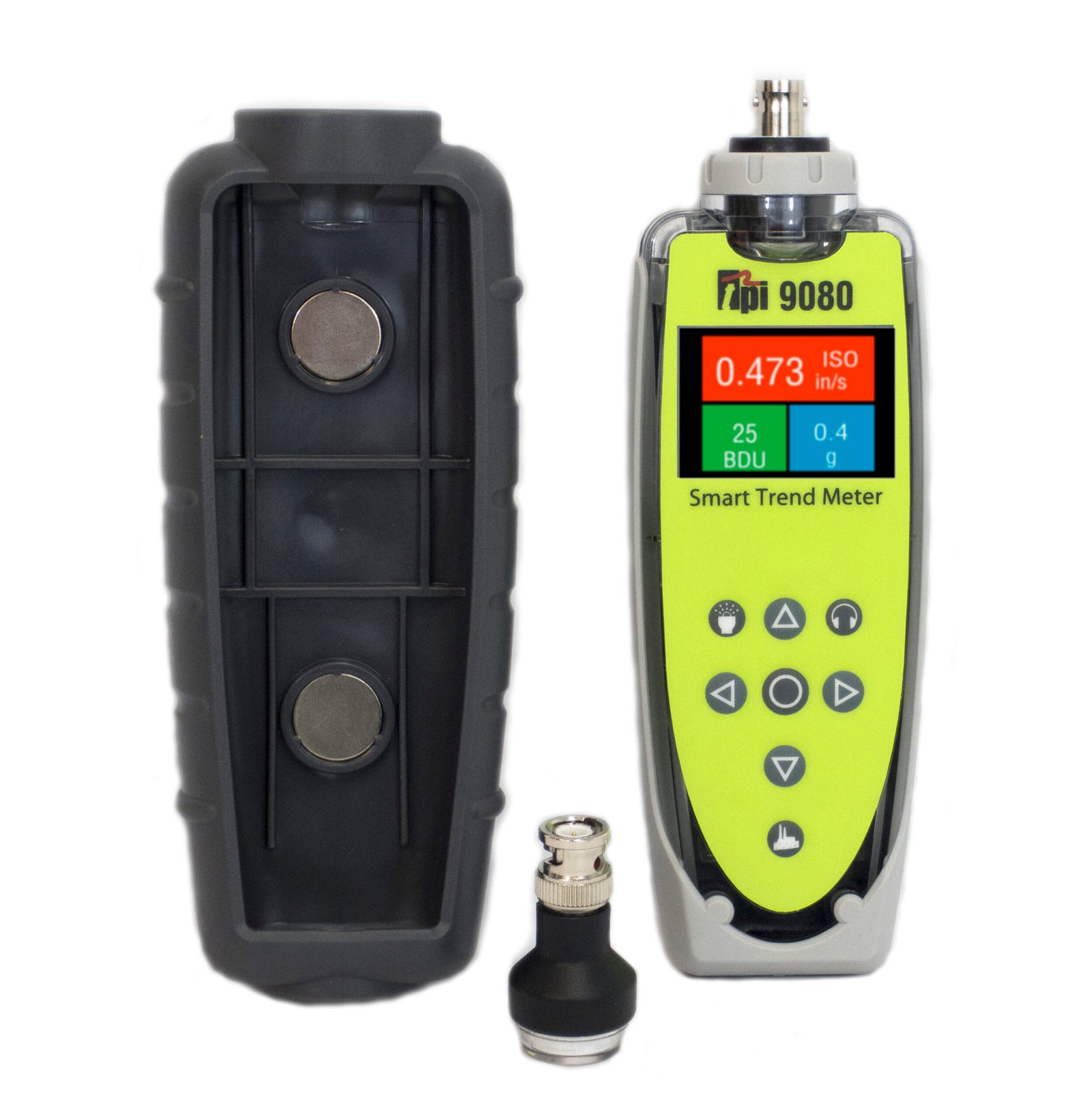

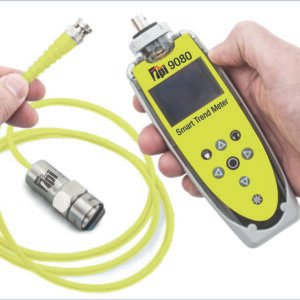

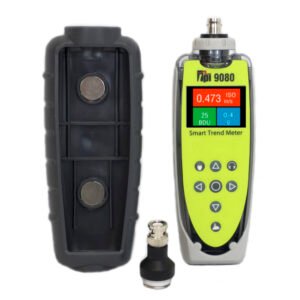

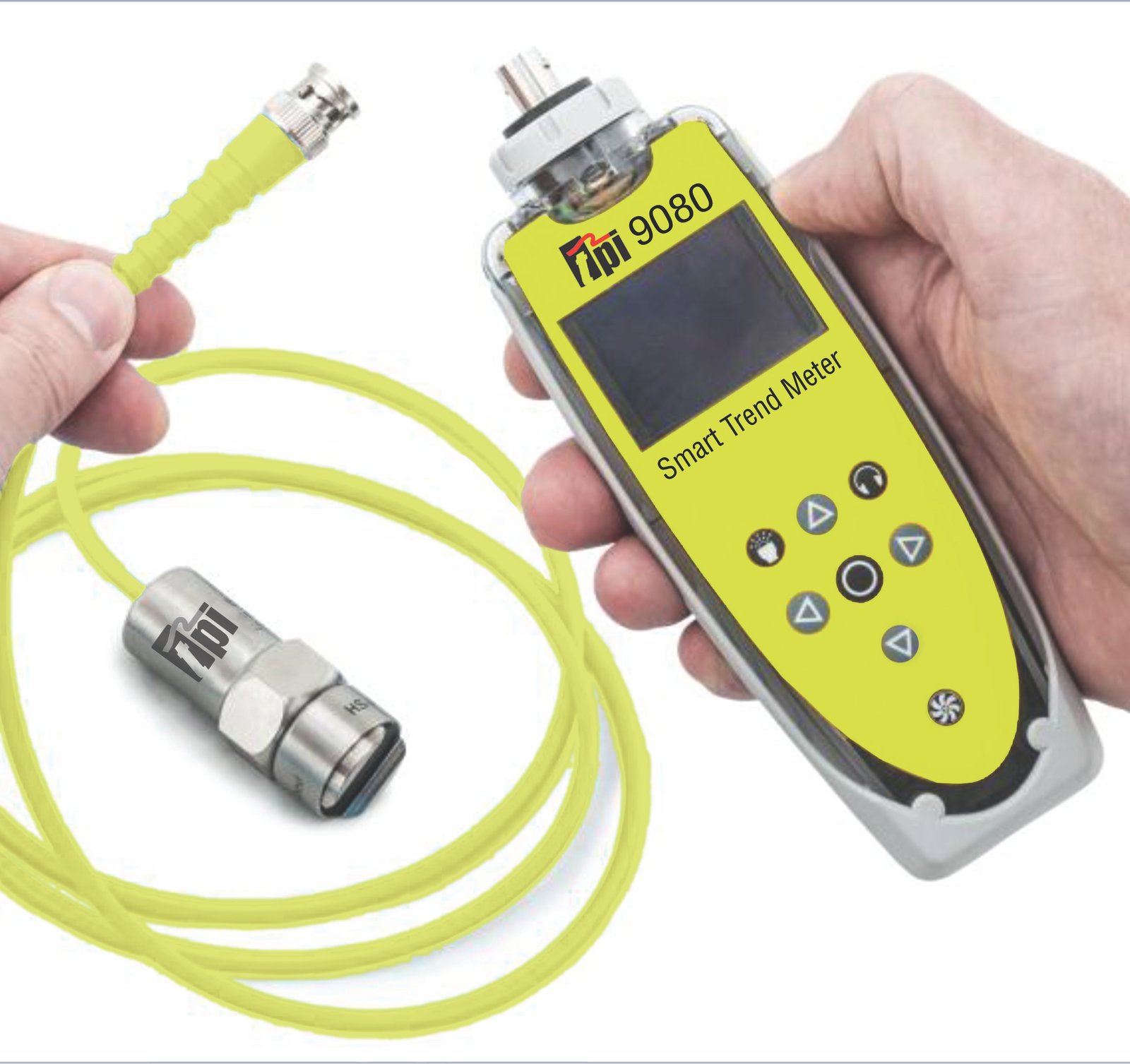

TPI 9080K1 Vibration Meter

The TPI 9080 is a simple, easy to use, low cost vibration meter that records, analyzes and displays vibration signals at the push of a button. Identify the vibration problem: unbalance, misalignment or looseness; in addition to the bearing condition. VibTrend standard software gives you greater ease of use and flexibility. Windows 10™ compatible.

• Store analyze and report on all your vibration parameters in one  place; up to 10 assets with 10 readings per asset standard; unlimited assets with 10 readings per asset with optional A9084 VibTrend Pro software.
• All information is just a click away. Color coded alarms highlight problems. Trend lines show problems before they happen.

Overall machine and bearing conditions: vibration values are displayed with color coded alarm levels for ISO values and Bearing Damage (BDU).

Identify complex issues: 800-line spectrum with zoom and cursor.

Identify complex issues: 800-line spectrum with zoom and cursor.

Identify the vibration problem: unbalance, misalignment or looseness in addition to the bearing condition.



• Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs

The Smart Trend Meter 9080 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals . The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness.

The system is designed to enable a user to take vibration measurements from assets (e.g. pumps, motors, fans and bearings) . The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.

The Smart Trend Meter 9080 also has an strobe attachment for determining machine speed

Applications include:

• Commercial & Industrlal HVAC
• Food Processing
• Manufacturing
• Mining
• Packaging
• Petrochemical
• Pulp and Paper
• Power Plants
• Utilities
• Automotive
