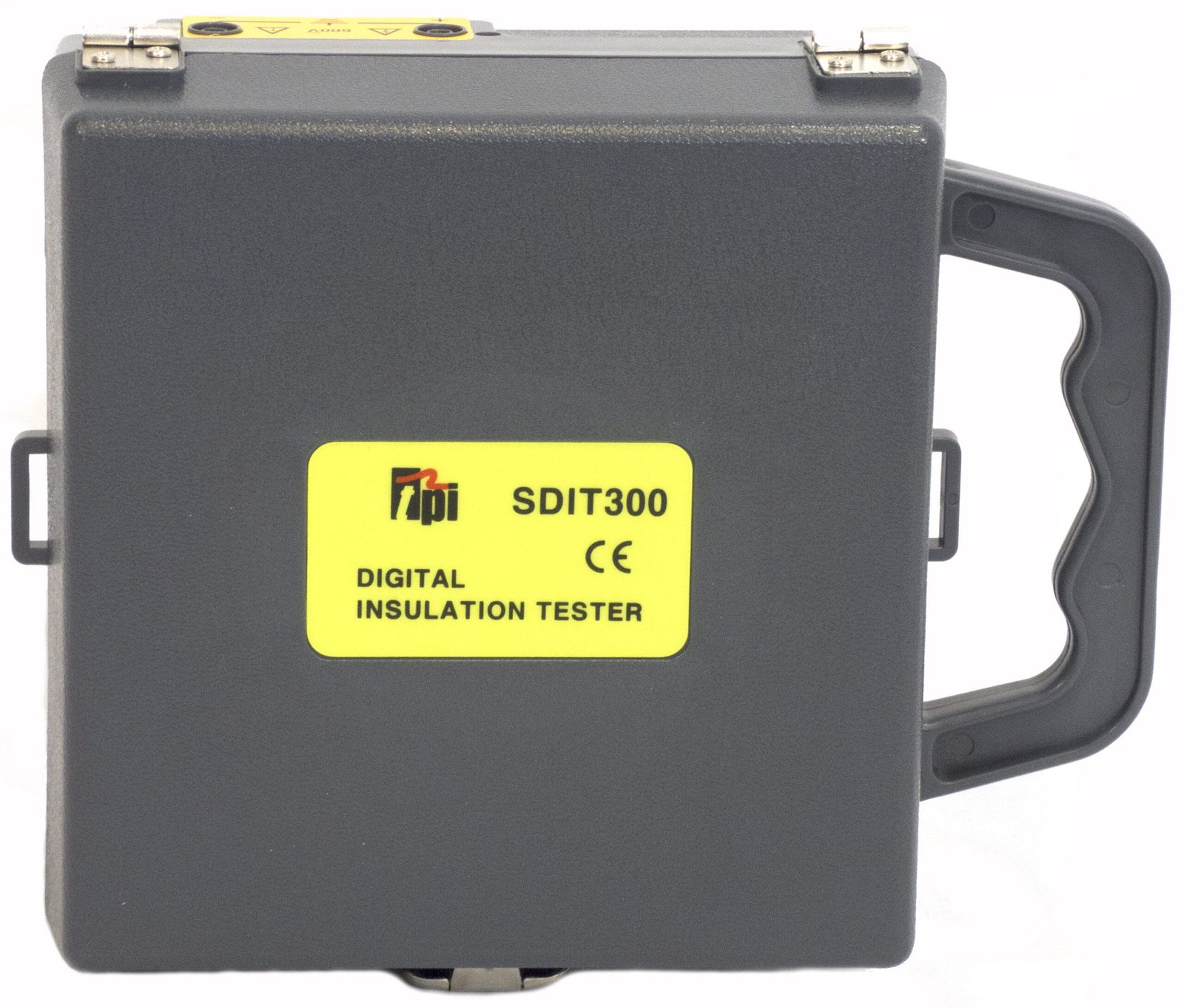

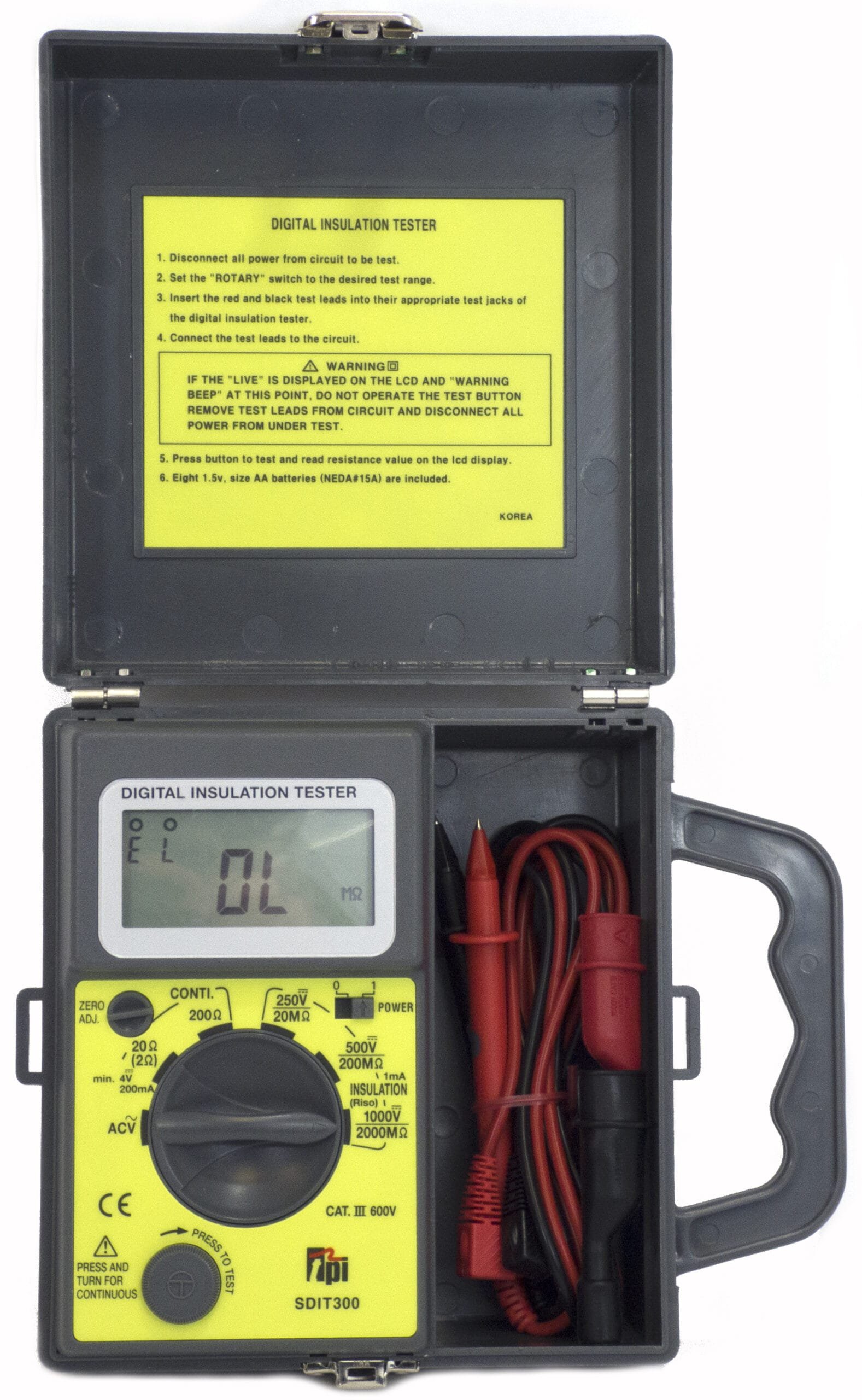

TPI SDIT300 Insulation Resistance Tester
39 people are viewing this product right now
Original price was: $299.95.$275.95Current price is: $275.95.
Shipping calculated at checkout.
Estimated delivery:5 days
Digital Insulation Resistance Tester
- Large 50,000 count display increases resolution and improves accuracy (1.7″ x 2.75″, 43mm x 70mm)
- 0-24mA output for process controls
- Triple Display shows more than one reading simultaneously
- 51 Segment Analog Bar Graph to catch fast AC fluctuations
- Back Light (LED Type) allows viewing in any light condition
- Auto Range automatically selects the best range for the measurement
- Separate battery and fuse compartment for easy replacement
- Increased safety with Silicone rubber 1,000V CAT III, 600V CAT IV, 10A test leads (CE & cUL listed)
- Auto Power Off DMM will automatically power down after approximately 15 minutes of inactivity to extend battery life. Disable Auto Power Off: Hold down the REC button and turn the meter on.
- Diode Test displays approximate forward bias voltage
- Continuity and buzzer to check for opens and shorts
- Standard Accessories
- A085: Consists of the A080UL listed silicone test lead set with A150 screw on alligator clips
- A073: Consists of a six foot lead set with large alligator clips
Guarantee Safe and Secure Payment Checkout
Description
Digital Insulation Resistance Tester
Micro / Milli / Meg Ohmmeters/Megohmmeter / Insulation Resistance Testers Template | |
|---|---|
| IR Test Voltage | 1,000 V, 250 V, 500 V |
| Maximum Insulation Resistance | 2000 M Ohms (2 G Ohms) |
| Type | Battery |
| Minimum Insulation Resistance | 1 Ohms (0.000000001 G Ohms) |
| Variable Incremental Voltage | No |
| Display (Megohmmeter) | Digital |
| Continuity Test | Yes |
| Live Circuit Voltage Detection | Yes |
| Power Supply | Battery |
| Timer | No |
| CAT Rating | III |
| CAT Voltage | 600 V |
Product General Attributes | |
| Unique Features | automatic discharge, push button or locking operation, audible alarm for detection of live circuit |
| Warranty | 3 YEARS |
| Product Weight | 3 LBS |
| Product Height | 3.5 IN |
| Product Length | 6.25 IN |
| Product Width | 8 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| Shipping Height | 3.75 IN |
| UPC | 637623300066 |
| Shipping Length | 8.50 IN |
| Shipping Width | 7.25 IN |
You must be logged in to post a review.
Manuals/Guides
Other
| Weight | 3 lbs |
|---|---|
| Dimensions | 6.25 × 8 × 3.5 in |
