TPI SPCHKIT – Charging Kit (2x SP323 Smart Temperature Clamp Probe, 2x SP670 Smart High-Pressure Probe)

• SP323: Temperature range: -40 to +185 F (-40 to +85 C)
• SP323: Pipe range: ¼ inch to 1 ½ inch (6mm to 38mm)
• SP323: Resolution: 0.1 deg F / 0.1 deg C
• SP670: Pressure Range: -14.7 psi to 870 psi (-1 bar to 60 bar)
• SP670: Connection Type: 7/16″-20 UNF / ¼” SAE angled for connections in tight spaces

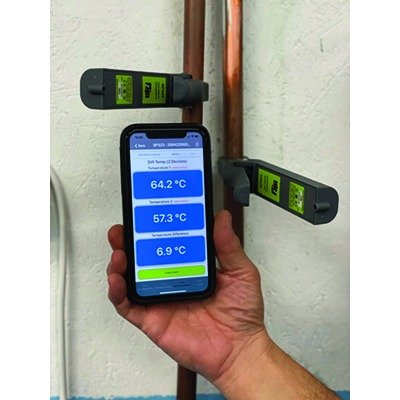

TPI SPCHKIT Charging Kit consists of two SP323 Smart Temperature Clamp Probes and two SP670 Smart High-Pressure Probes. The SP323 Smart Temperature Clamp Probe is used to measure temperature on refrigeration systems, while the TPI SP670 Smart Pressure Probe is used to measure pressure on refrigeration systems. The SP670 probe employs an angled ¼” fitting to allow access to service ports in close spaces. The Schrader Valve Depressor on the SP670 is adjustable for use with worn valves in test ports, and it can be serviced as well to extend the life of the probe. These probes can connect to a smart device and send live measurement data to the device via the TPI View app. The SP323s can be used in conjunction to measure differential temperature or with the SP670 Smart Pressure Probe to calculate Superheat and Subcooling with the App. The TPI View App displays real-time readings in numeric and graphical format. The Job Management function allows you to create multiple JOBS and attach multiple REPORTS to each Job or give each report a different reference/name and save to an existing JOB.
