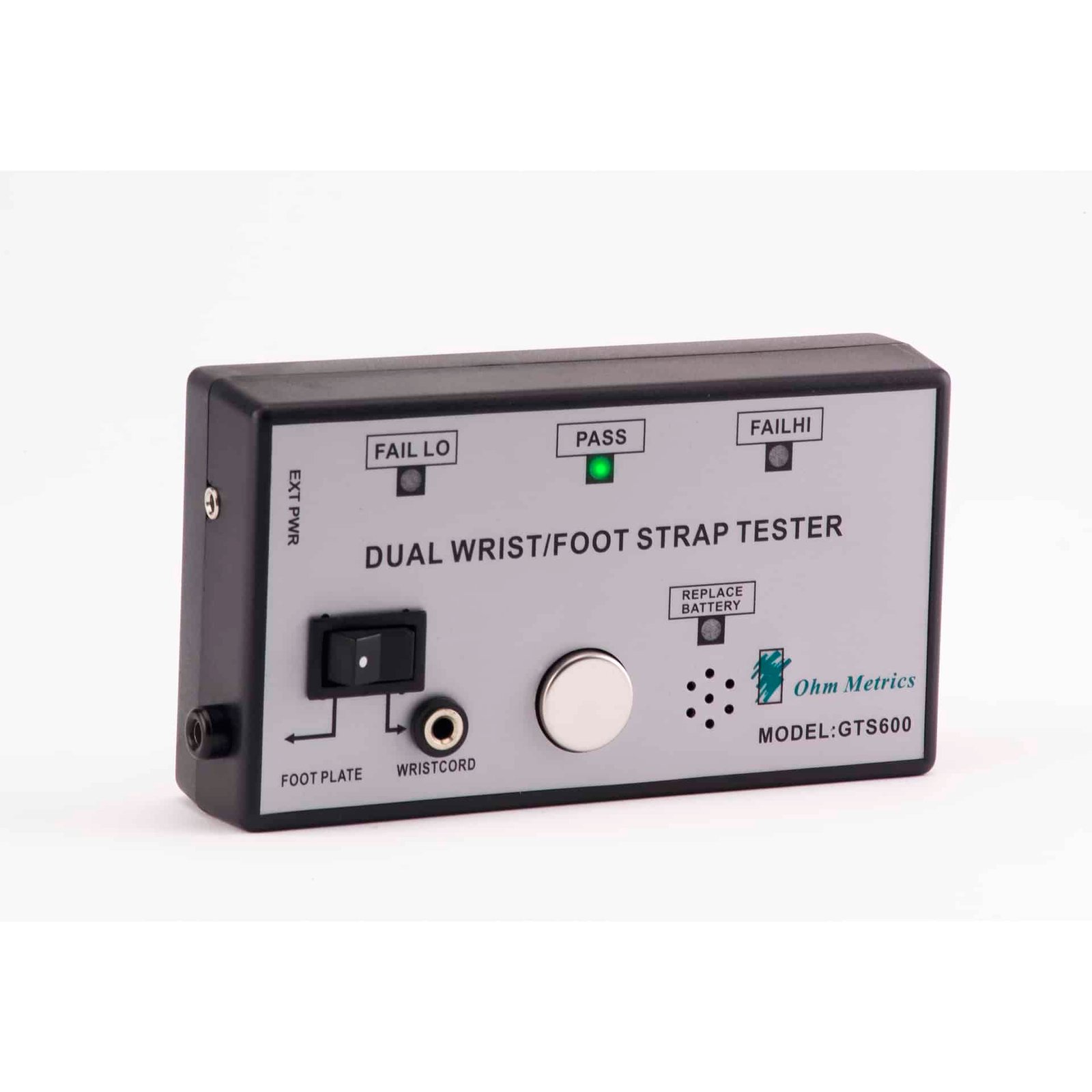

Transforming Technologies GTS600K – Combination Wrist Strap and Footwear Testing Station

• Accurate & reliable ESD testing
• Test footwear or wrist straps
• Signals: High Fail, Low Fail, or Pass
• 1-year warranty

The GTS600K is the best value combination tester on the market. Dual test circuits allow for both wrist strap and footwear testing quickly and easily with a touch of a button. Make sure your personal grounding devices are working without breaking the budget. The dual test circuits in the GTS600K give the option for both wrist strap and footwear testing, and a positive rocker switch makes test mode selection easy. This tester fully supports the Compliance Verification Plan requirements as stated in the ANSI ESD S20.20.

Wrist Strap Range: 750 Kilohms – 10 Megohms

Footwear Range: 750 Kilohms – 100 Megohms

The GTS600K is factory-calibrated, and annual calibration is not necessary. Verification tools that simulate functional and non-functional wrist straps and footwear are available to verify that the monitor is functional. It is recommended to verify proper working order with the CAL1000 periodic verification unit at least once per year.
