Triplett 9055 – Digital Multimeter

Brand:
Please, activate Wishlist option to use this widget.
Please, activate Compare option to use this widget.
19 people are viewing this product right now

Original price was: $142.98.Current price is: $111.30.

Shipping calculated at checkout.
or
Add to quote
Estimated delivery:3 days

Digital Multimeter

  • 53 measurement ranges
  • 3 3/4 digit resolution
  • 4000 Count backlit display
  • Auto power off
  • Low battery indicator
  • Auto polarity
  • Capacitance range
  • Resistance range
  • Sound Level Meter
  • Ambient Temperature Meter
SKU: Triplett 9055 EAN: 614395001445 Tags: , Categories:
Pay safely with Visa Pay safely with Master Card Pay safely with PayPal Pay safely with Maestro Tooltip text
Guarantee Safe and Secure Payment Checkout

Description

Triplett 9055

  • 53 measurement ranges
  • 3 3/4 digit resolution
  • 4000 Count backlit display
  • Auto power off
  • Low battery indicator

Digital Multimeter

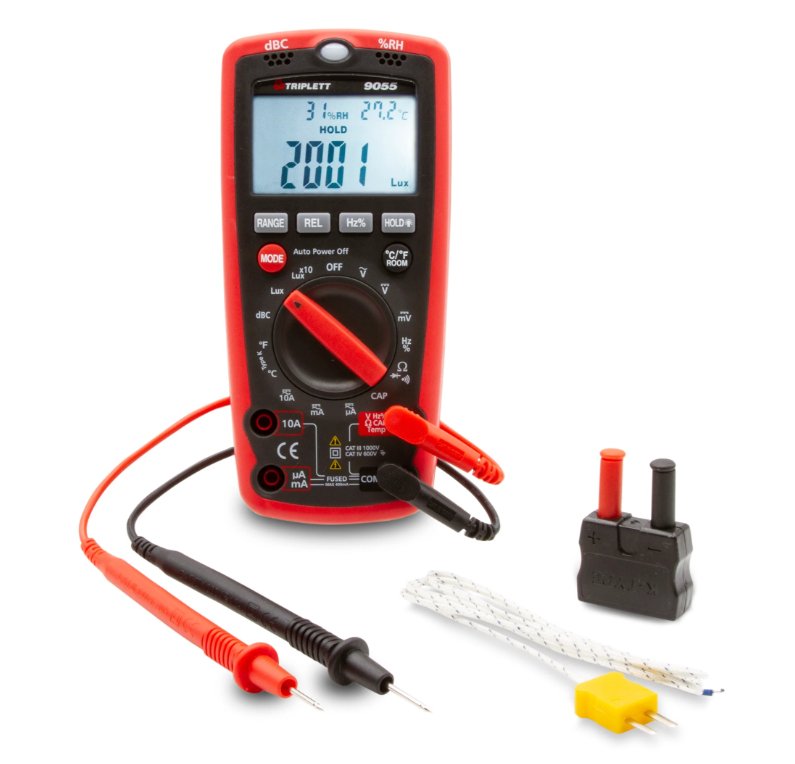

The Triplett Model 9055 is a 3-3/4 digit (4000 count) high performance digital multimeter with an array of environmental functions. It offers over 50 measurement ranges including AC/DC Voltage, AC/DC Current, Resistance, Frequency, Capacitance, Temperature (Type K and ambient), Relative Humidity (RH), Light (LUX), and Sound (dBC). Additional features include an NCV Detector, Continuity, and Diode Test. The rubberized overmolded housing with built-in stand provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Power Off feature helps maximize battery life. With an industry leading CAT IV design, it provides superior resistance to damage from transient overvoltages in any demanding industrial settings. The Model 9055 is suited for a variety of industrial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads, alligator clips, Type K Temperature probe and 9V battery. 3 year warranty.

Multimeters Template

StyleHand-Held
Measures AC VYes
Measures DC VYes
Measures AC AYes
Measures DC AYes
Maximum Voltage AC700 V
Resolution AC Volts1 V (1000 mV)
Maximum Voltage DC600 V
Resolution DC Volts1 V (1000 mV)
Maximum Current AC10 A
Minimum Current AC400 mA
Resolution AC Current10 mA
Maximum Current DC10 A
Minimum Current DC400 mA
Resolution DC Current10 mA
Basic Accuracy V DC± 1.0% of rdg ± 4 dgts
# Digit Display3.75
Counts4000 .
BacklightYes
Manual/AutorangingManual
DecibelsYes
ResistanceYes
FrequencyYes
CapacitanceYes
TemperatureYes
Diode TestingYes
CAT Voltage1,000 V, 600 V

CAT Voltage

700 V

Overload ProtectorYes

Product General Attributes

Unique Features53 measurement ranges
3 3/4 digit resolution
Warranty3 YEARS

Warranty

Limited warranty

Safety ApprovalCE
Product Weight0.7 LBS
Battery Type9v
Power Supply VoltageBattery Powered
Country of OriginChina
Other Information

Dimensions: : 3.2 x 6.75 x 1.4 in

Reviews

There are no reviews yet.

Be the first to review “Triplett 9055 – Digital Multimeter”

Manuals/Guides

ManualsSpec Sheets
Weight0.7 lbs
