Triplett IRTC400 – Thermal Imaging Camera
35 people are viewing this product right now
Original price was: $439.98.$368.85Current price is: $368.85.
Shipping calculated at checkout.
Estimated delivery:5 days
Thermal Imaging Camera
- 120 x 90 pixels (10,800) with <60mk Thermal Sensitivity (NETD)
- 2.4″ (61mm) focus-free, color TFT display with 320 x 240 resolution
- Center spot and high/low temperature tracking on image
- Audible and visual user programmable high/low temperature alarms
- 4-button easy-to-use menu
- Real time clock/calendar
- Image gallery
- Built-in LED worklight
- USB interface for transferring images (.bmp) and recharging
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description

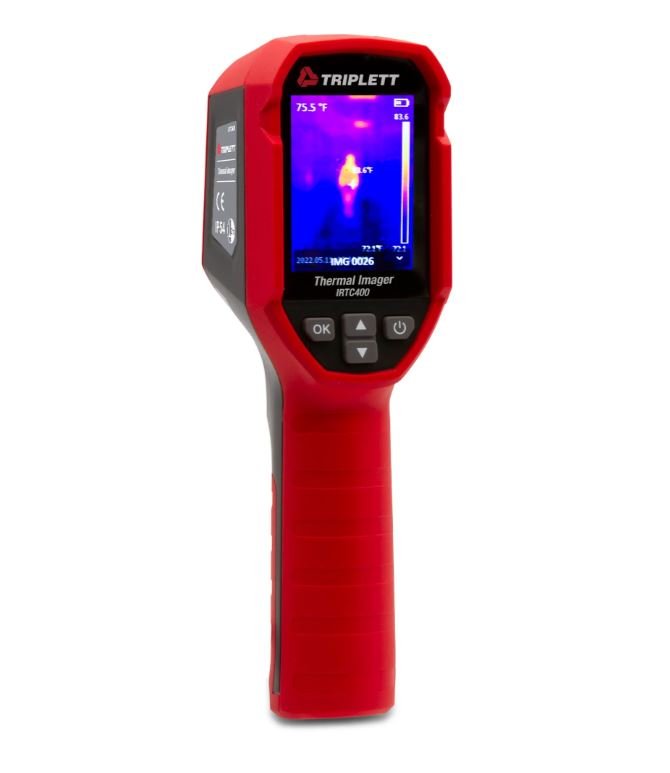

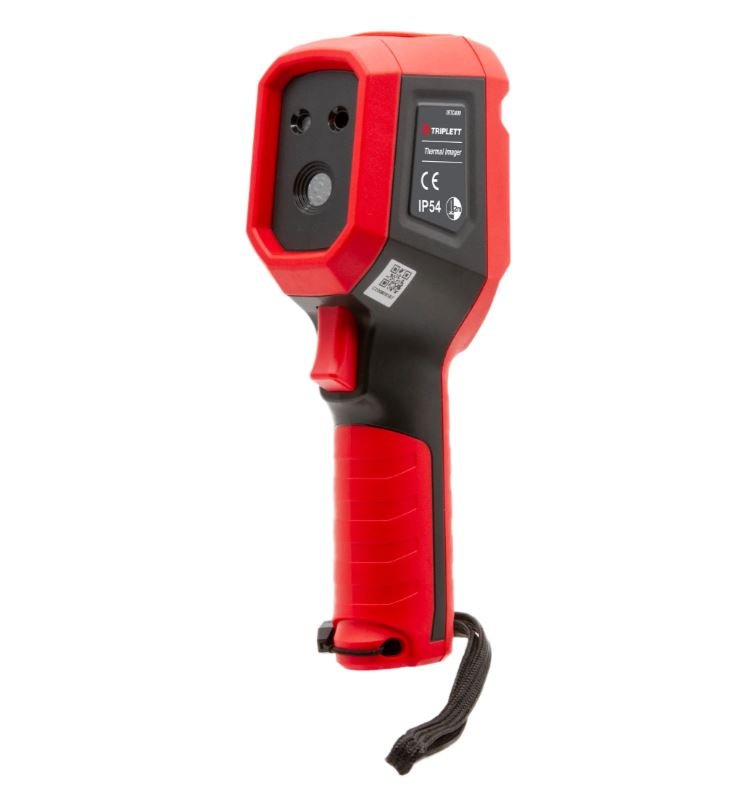

Triplett IRTC400
- 120 x 90 pixels (10,800) with <60mk Thermal Sensitivity (NETD)
- 2.4″ (61mm) focus-free, color TFT display with 320 x 240 resolution
- Center spot and high/low temperature tracking on image
- Audible and visual user programmable high/low temperature alarms
- 1 year warranty
Thermal Imaging Camera

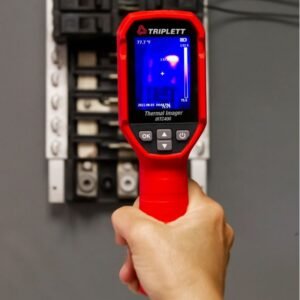

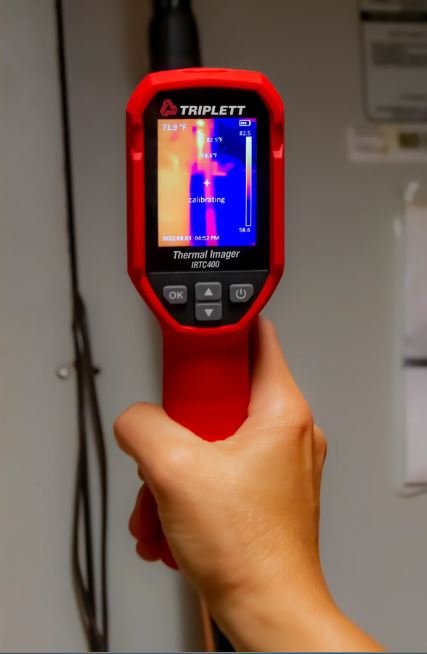

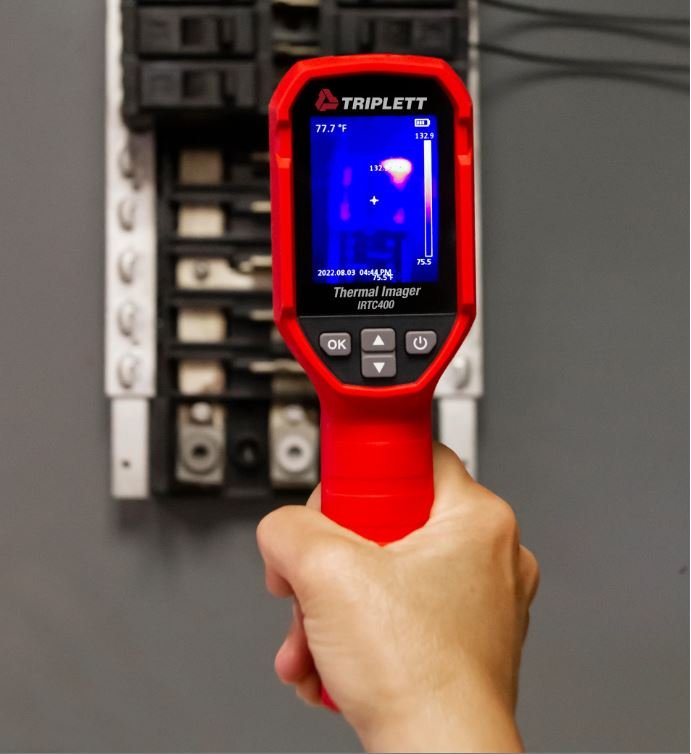

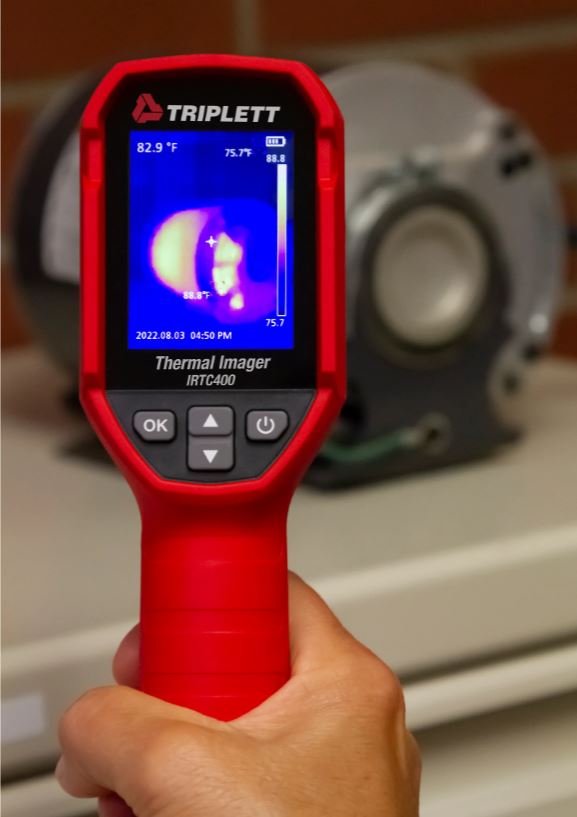

The Triplett IRTC400 Thermal Imager can be used for preventative maintenance and troubleshooting of electrical and HVAC systems, mechanical breakdowns, water leaks and moisture buildup, heat loss from missing insulation and faulty windows/doors, automotive repair, and other places to find hidden leaks and hot spots.
The thermal imager has a 120 x 90-pixel (10,800) thermal detector with ≤60mk Thermal Sensitivity (NETD) that displays center spot and high/low temperature tracking on a 2.4″ (61mm) focus-free, color TFT display with 320 x 240 resolution.
Additional features include an easy-to-use 4-button menu, user programmable audible and visual high/low temperature alarms, real time clock/calendar, a built-in LED work light, and Auto power off with disable. Use the on board-image gallery to view your images (.bmp) or transfer them to your PC via USB interface that is also used to recharge the thermal imager.
Includes 3.7V rechargeable Lithium-Ion battery, USB cable, software, and 32GB microSD card. 1-year warranty.
Thermal Imagers/Building and Industrial Thermal Imagers Template | |
|---|---|
| Detector Size | 120 x 90 Sensor |
| Thermal Sensitivity | 60 mK (NETD) |
| Temperature Range Max | 752 F |
| Temperature Range Min | -4 F |
| Image Frequency | 25 Hz |
| Field of View | 50 x 38 Degrees |
| Screen Size | 2.4 IN |
| IR/Overlay Fusion Image | No |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | Yes |
| Picture in Picture | No |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | No |
| Minimum Focus Distance | 4 IN (0.1016 M) |
| Accuracy | ±2% or ±2°C |
| Camera Light | Yes |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Product General Attributes | |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | USB |
| Storage | Micro SD |
| IP Rating | IP54 |
| Product Weight | 0.68 LBS |
| Product Height | 7.8 IN |
| Product Length | 2.8 IN |
| Product Width | 2.4 IN |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
You must be logged in to post a review.
Manuals/Guides
ManualsSpec Sheets
| Weight | 0.68 lbs |
|---|---|
| Dimensions | 2.8 × 2.4 × 7.8 in |
