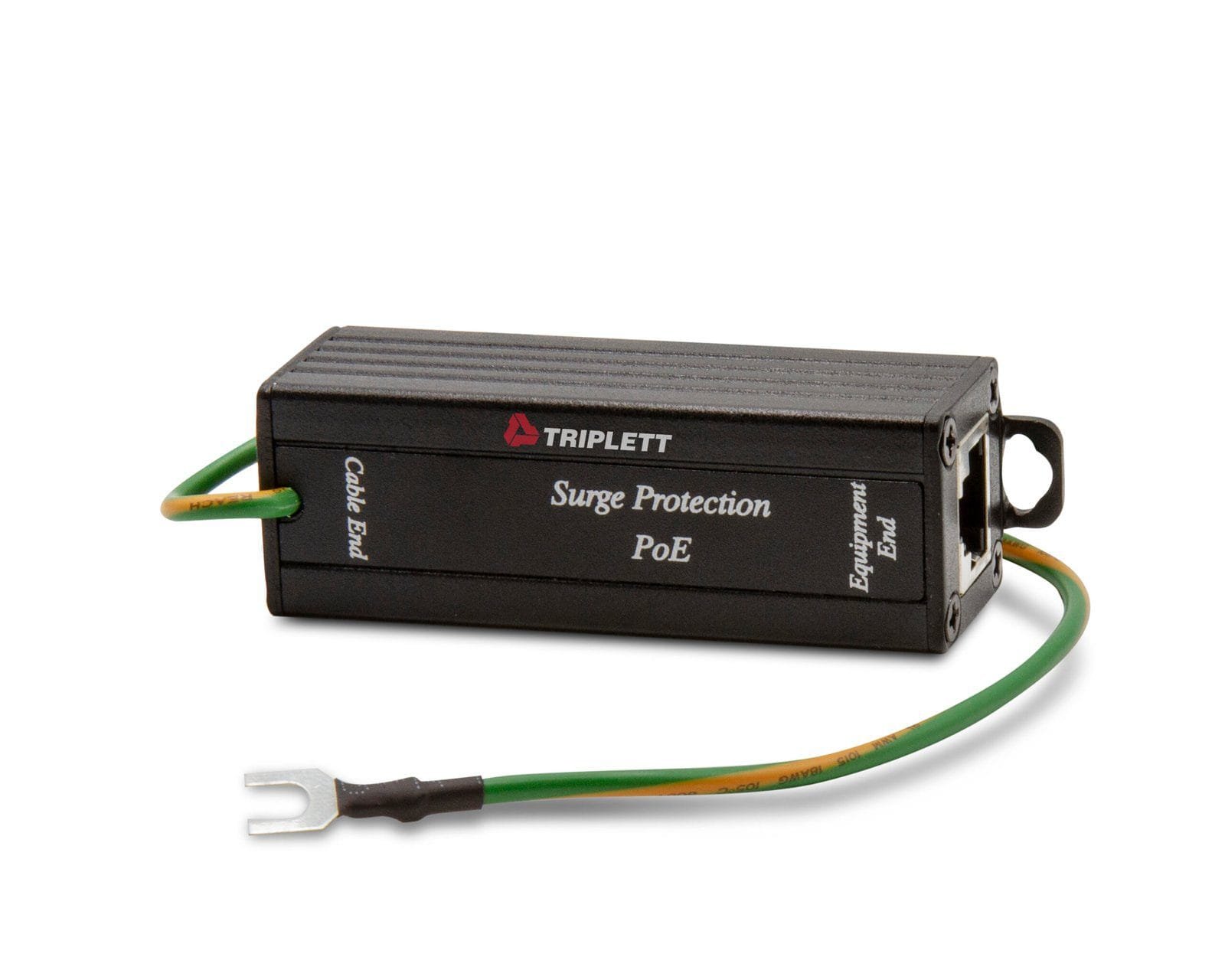

Triplett SP200 – Inline PoE Surge Protector

• Protect a valuable PoE device from high-voltage surges
• Response time less than 1ns
• Supports bandwidth up to 100Mbps
• Supports IEEE 802.3af, and IEEE 802.3 at PoE Standard
• Supports Mid-span and End-span

The Triplett Model SP200 is an Inline PoE Surge Protector is designed to protect valuable PoE devices in Educational Institutions, Server Farms, Manufacturing Facilities, and other installations from high voltage surges. In addition, it provides ESD protection to 30kV and lightning protection to 10kV. It features a 10/100Mbps bandwidth, a response time of less than 1ns, and a surge life of 300 times (100A per surge@8/20µs).

IEEE 802.3af, IEEE802.3at, and IEC 61000-4-5 2nd edition compliant.

Includes external ground wire.
