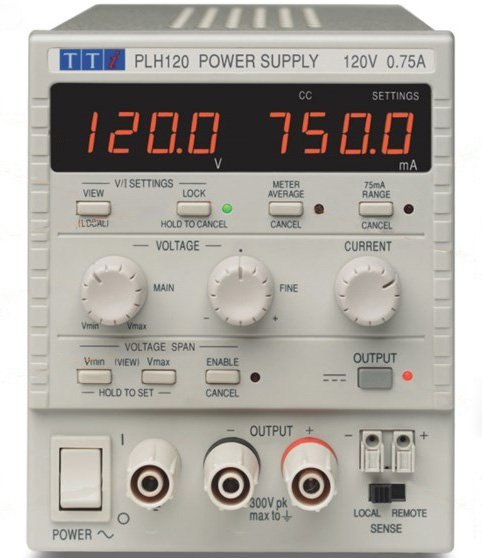

TTi PLH120 – Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
11 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:4 days
Single 0-120V/0-0.75A
- PLH120 Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
- Up to 94 watts from an ultra-compact case size
- Exceptional line and load regulation
- High accuracy four digit fixed-resolution meters
- Easy-switch remote sense
- Low current range; current meter averaging
- Lockable voltage and current settings (using S-Lock)
- Connect via safety binding-post terminals
- Dc output switch – check your settings before applying them;
- View settings button – check and adjust limits at any time
Guarantee Safe and Secure Payment Checkout
Description
TTi PLH120
- PLH120 Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
- Up to 94 watts from an ultra-compact case size
- Exceptional line and load regulation
- High accuracy four-digit fixed-resolution meters
- Easy-switch remote sense
Single 0-120V/0-0.75A Higher Voltage Linear Regulated DC Bench Power Supply
The PLH Series is the latest high-performance linear regulated DC power supply range from TTi. It is based on the New PL Series of lower voltage precision linear power supplies (which offers up to 60V) and has an identical casing style and similar power output. However, certain features relevant to the higher voltage are different.
The PLH Series has true analog controls but combines them with new digitally based convenience features.
Higher Voltages Without Lower Performance
TTi has been at the forefront of laboratory power supply design for around thirty years during which it has re-defined the state-of-the-art for switch mode products with its innovative Mixed-mode and PowerFlex regulator designs. Demand for linear regulated PSUs has remained strong and continuing development of linear models has generated the lower cost ELR series, and the advanced QL series in addition to the ever popular PL series. The PLH and PLH-P series of linear regulated higher voltage DC power supplies joins a large family of PSUs with power levels from 15 watts up to 1200 watts.
Analog Controls with Digital Stability
As technology has changed, many products have moved from analog controls to digital ones. Although digital controls suit many instruments, they do not necessarily suit a bench power supply. Customer research shows that many users prefer the speed and simplicity of conventional analog controls for setting voltage and current. Digital controls may offer greater precision, but often at the expense of ease-of-use. With this in mind, the New PL series has retained the true analog controls of its predecessor.
The main disadvantage of analog controls is stability and security. The settings of analog potentiometers can drift over time. More importantly, the settings can be changed accidentally with potentially serious consequences.
Power Supplies/DC Power Supplies Template | |
|---|---|
| Outputs | Single |
| Voltage Output 1 | Variable |
| Max Voltage Output 1 | 120 V |
| Programmable | No |
| Current Output 1 | Variable |
| Max Current Output 1 | 750 mA (0.75 A) |
| Meter Type | Digital |
| Linear/Switching | Linear |
| Max Display Resolution Current | 0.01 mA |
| Max Display Resolution Voltage | 100 mV |
| Constant current/voltage | Yes |
| Remote Sensing | Yes |
Product General Attributes | |
| Unique Features | Linear regulation offers the highest possible performance and the compact quarter-rack width design provides an impressive 90 watts of power. A low current range provides 0.01 mA resolution. Unique Features Linear regulation offers the highest possible performance and the compact quarter-rack width design provides an impressive 90 watts of power. A low current range provides 0.01 mA resolution. |
| Warranty | 3 YEARS |
| Warranty Details | For all Aim-TTi products purchased after 1st June 2013, the warranty can be extended to three years from the date of purchase. Customers can extend the standard 1 year warranty on their product to three years by registering within 3 months of purchase. Registration is free and will ensure that products purchased from our worldwide distributors are warranted from the purchase date, rather than the date of manufacture, in order to fully utilise the warranty period. Up to five products can be registered simultaneously using the form. |
| Product Weight | 9.92 LBS |
| Product Height | 5.12 IN Product Height (¼ rack 3U |
| Product Length | 4.13 IN |
| Product Width | 11.61 IN |
| Shipping Weight | 13 LBS |
| Power Supply Voltage | 120V/220V Universal Power Supply Voltage 230V AC or 115V AC ± 10%, 50/60Hz. Installation Category II |
| Country of Origin | United Kingdom |
You must be logged in to post a review.
Manuals/Guides
| Weight | 9.92 lbs |
|---|---|
| Dimensions | 4.13 × 11.61 × 5.12 in |
