UEi 958 – Industrial/Commercial Combustion Analyzer

• Options for up to 7 gas measurements
• CO: H2 compensated up to 10,000 ppm or 100,000 ppm (model dependent)
• CO2: Calculated
• O2: Measured 0 to 25%
• NO1, NO2, SO2 optional (model dependent)

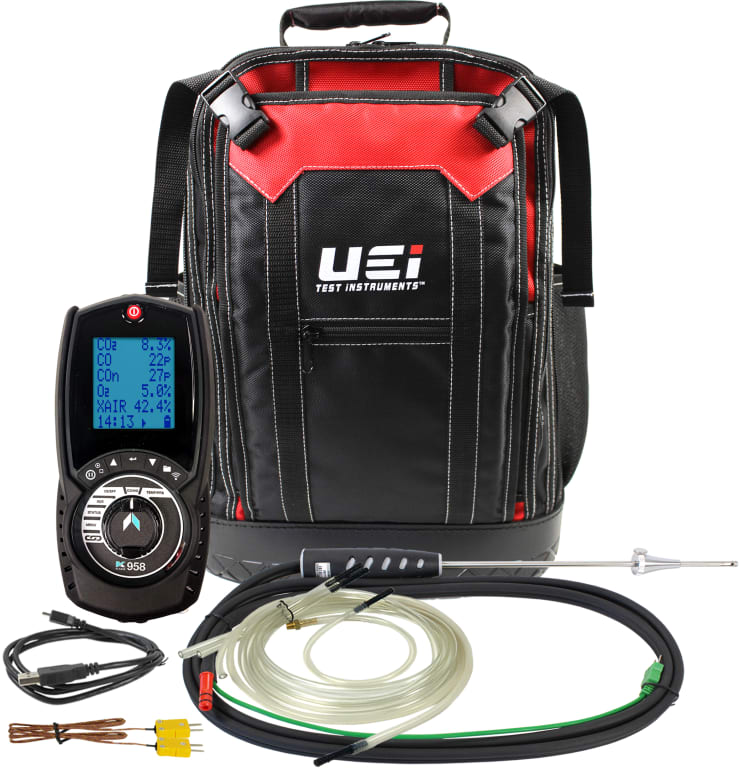

The UEi KANE 958 is a commercial and industrial combustion analyzer available in a variety of configurations. The KANE 958 has eight pre-programmed fuels (Natural Gas, LPG, Light Oil, Bio Gas, Coke, Wood, Heavy Oil, Coal) and can run for up to eight hours with continuous use with the pump running.

The KANE958 measures:

• Carbon Monoxide (CO) – 10,000 or 100,000 ppm optional
• Oxygen (O2) 0 to 25%
• Pressure
• Differential Pressure
• Temperature – 0˚ to 1112˚F
• Differential Temperature

Depending on your selected options it measures or calculates:

• Carbon Dioxide (CO2)
• Nitric Oxide (NO1)
• Nitrogen Oxides (NOx)
• CO/CO2 ratio
• Combustion efficiency
• Losses
• Excess air
• Sulfur Dioxide (SO2)
• Nitrogen Dioxide (NO2)

The KANE958 stores up to 45 logs of any combination of combustion, AUX, temperature and pressure test results. It is possible to print test results using an optional infrared printer (sold separately) or wirelessly send them to the app. Connect the device to link wireless optional probes (sold separately) for wireless pipe temperature or air flow measurements.

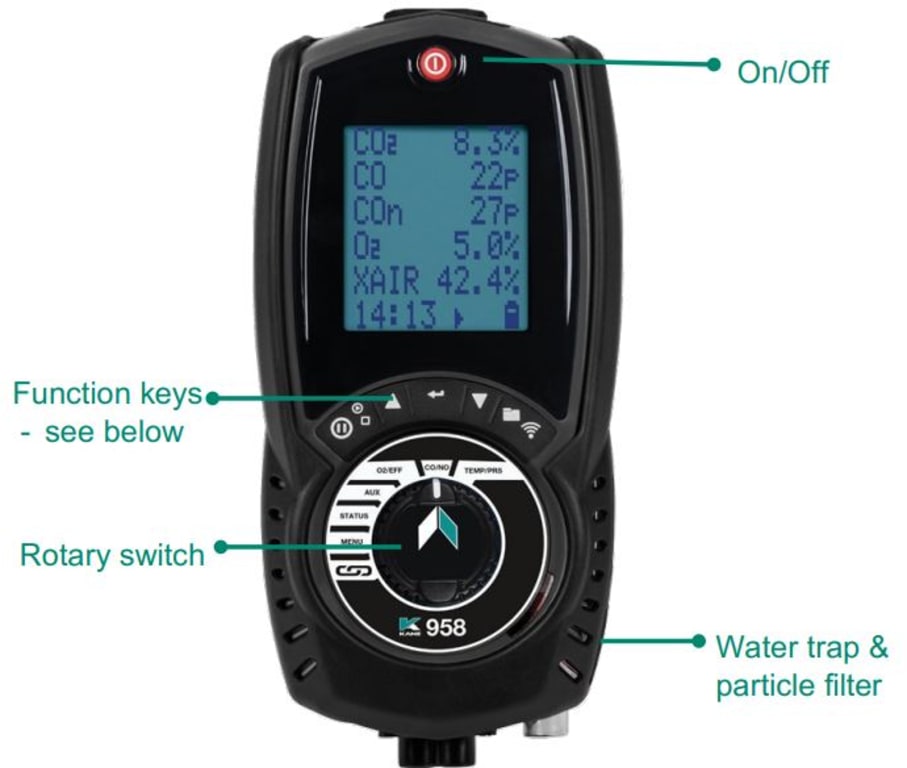

A large six-line display shows data and test results based on your actions. The bottom display line also always provides the analyzer status.

The KANE958 is equipped with a protective rubber cover with magnets for hands-free operation, and it is supplied with a flue probe with integral temperature sensor. A low flow detector system switches off the analyzer pump if it detects water entering from an over filled water trap.

The UEi 958 is available in several configurations. Please see the table below.
