UEi 988 – KANE 988 Industrial Combustion Analyzer Standard Plus Options for up to 4 Toxic Gas Sensors

• Standard configuration: CO 10,000ppm, O2, CO2, CO 100,000ppm, Pressure
• Optional toxic sensors: NO, NO2, SO2, H2S
• LINK connection to optional wireless probes
• Wireless connection to a free printer app (iOS and Android compatible)
• Eligible for UEi Service Plus; Up to 10-year warranty with annual recertification

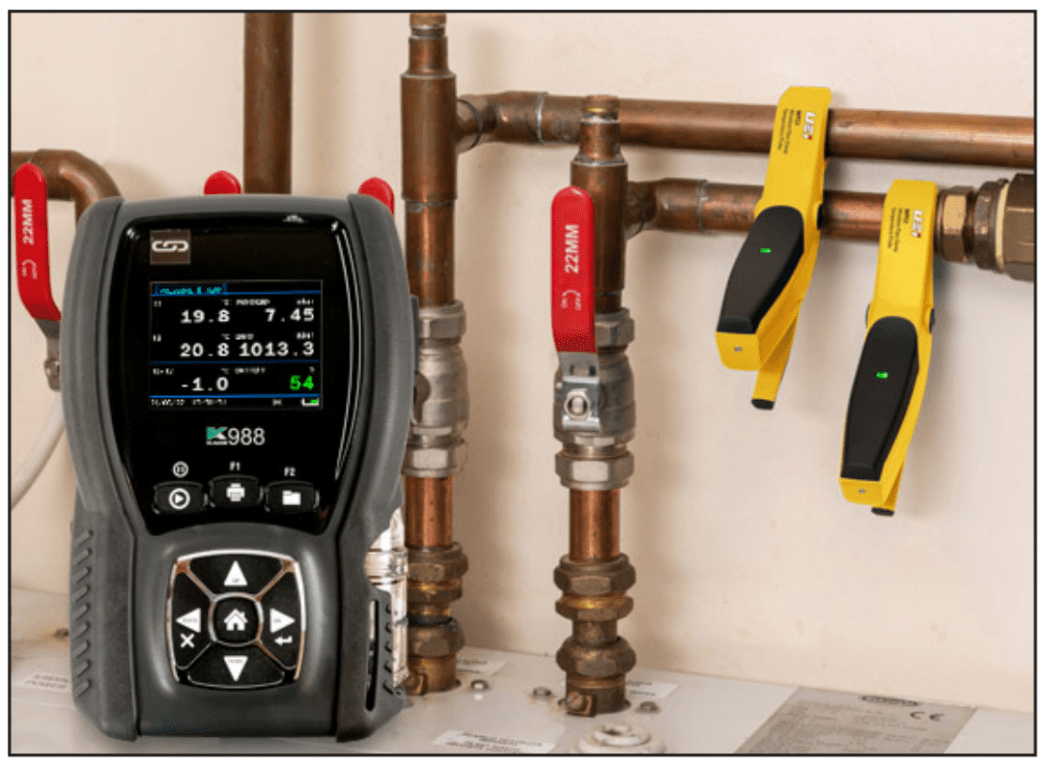

The UEi KANE 988 industrial/commercial combustion analyzer is used in the installation, commission, and servicing of heating and hot water systems using any fossil, biomass, and HVO fuel. The KANE 988 has fifteen (15) pre-programmed fuels (Natural Gas, Kinsale Gas, Natural Gas L, Town Gas, Gas Cor, Propane, LPG, Butane, Light Oil, Digester Gas, Heavy Oil, Coal, Anthracite, Wood Pellets, Coke) as well as five (5) user defined fuels.

• Eligible for UEi Service +
• Up to 10-year warranty with annual recertification
• LINK to optional wireless probes
• NOx filtered and H2 compensated CO sensor
• Low flow detection to protect reading accuracy
• Large graphic color display
• Protective water trap with water stop filter using hydrophobic technology to stop water vapor
• Wireless connection to a free printer app (iOS and Android compatible)
• 2,200 memory positions
• Protective boot with built-in magnet and hand grip
• 15 pre-programmed fuels
• 5 user defined fuels

• CO (Carbon Monoxide) H2 0-10,000ppm Sensor
• O2 (Oxygen) 0-21% Sensor
• CO2 (Carbon Dioxide) 0-20% Sensor
• CO (Carbon Monoxide) 10% H2 100,000ppm Sensor
• Pressure Sensors, 2 Psi

The UEi KANE988 is available in a variety of configurations by adding up to 4 additional sensors (see chart below for details). Sensors are installed at the UEi ISO-certified lab in Indianapolis, IN.

• Measures 02 (21%), CO 10,000ppm (H2 compensated and 100,000ppm/10%), temperature (inlet, flue, differential, ambient, flow and return), differential pressure
• Calculates efficiency, excess air, CO/CO2 ratio, losses, Poison Index (Pi), airflow pitot tube, and Nitrogen Oxides (sensor dependent)

• Install, commission & service any heating & hot water system using any fossil, biomass & HVO fuel
• Optional environmental sensors test to local regulations
• Accurate NO2 & SO2 measurements with optional KANE-GCU gas conditioning unit
• Safety checks – CO in rooms & around appliances
• Combustion performance & efficiency tests
• Flue draft & gas pressure / system tightness tests
• Flow & return, air flow & air quality tests
