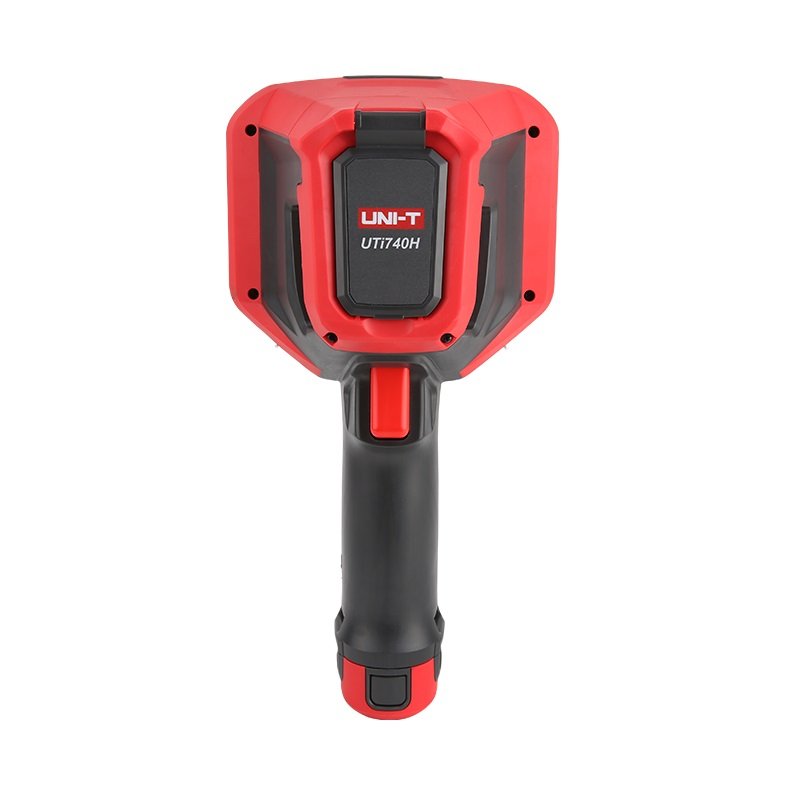

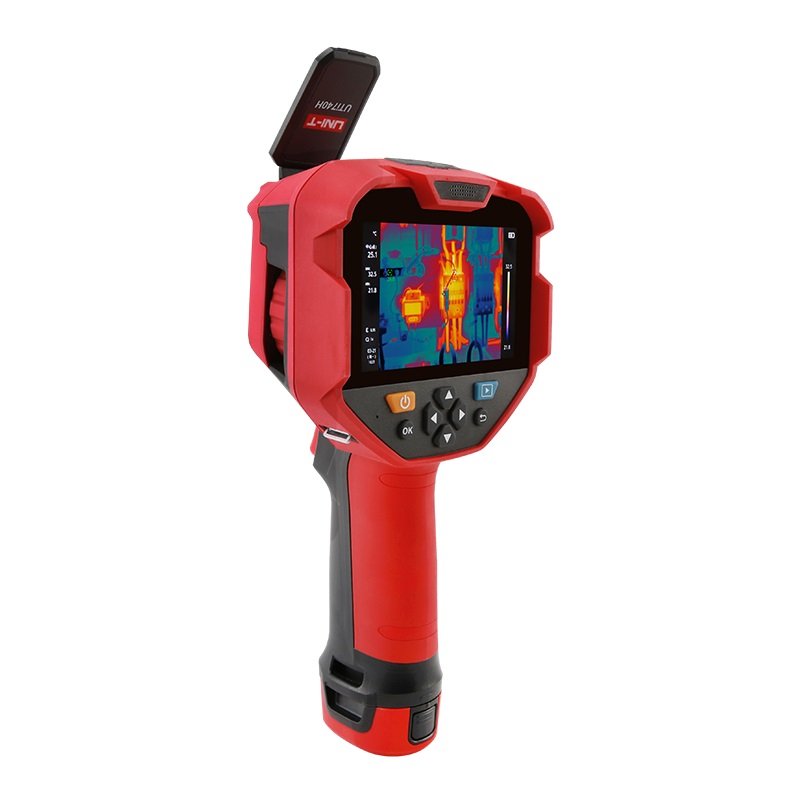

UNI-T UTi740H – 384 Pro H-Series Thermal Imager

• 384×288 IR resolution
• -22°F- 1202°F temperature range
• 28°×21° field of view
• 25Hz refresh rate
• 4.3in IPS display (800px x 480px)

The UTi740H is a professional enhanced thermal camera that is specially designed for industrial use with a wide temperature range of -22°F to 1202°F. Its large 4.3-inch IPS display screen can clearly display 384×288 IR resolution and a 5MP digital camera. The professional manual focus lens can flexibly adjust the focal length according to different objectives’ distances and provide a high-quality image. The UTi740H thermal camera also includes features such as WiFi capability, Isotherm, and an on-screen analyzer. It is a perfect troubleshooting tool for many industrial applications.

The UTi740H is a feature-rich thermal imager with a large 4.3-inch display that is ideal for use in industrial settings. It has a wide temperature range of -22°F to 1202°F and a high 25 Hz refresh rate. The IP54 rating provides protection in harsh environments. A built-in dual LED flashlight is useful in poorly lit mechanical areas of plants and manufacturing facilities.

Applications of the UTi740H include PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, and building and HVAC inspection.

• User can browse images and add text notes
• The on-screen analyzer includes move, stretch, and difference functions
• Color palettes include white hot, black hot, red hot, ironbow, HC rainbow, rainbow, and lava
• PC software permits analysis and real-time image projection
• Mobile app available with WiFi connectivity
