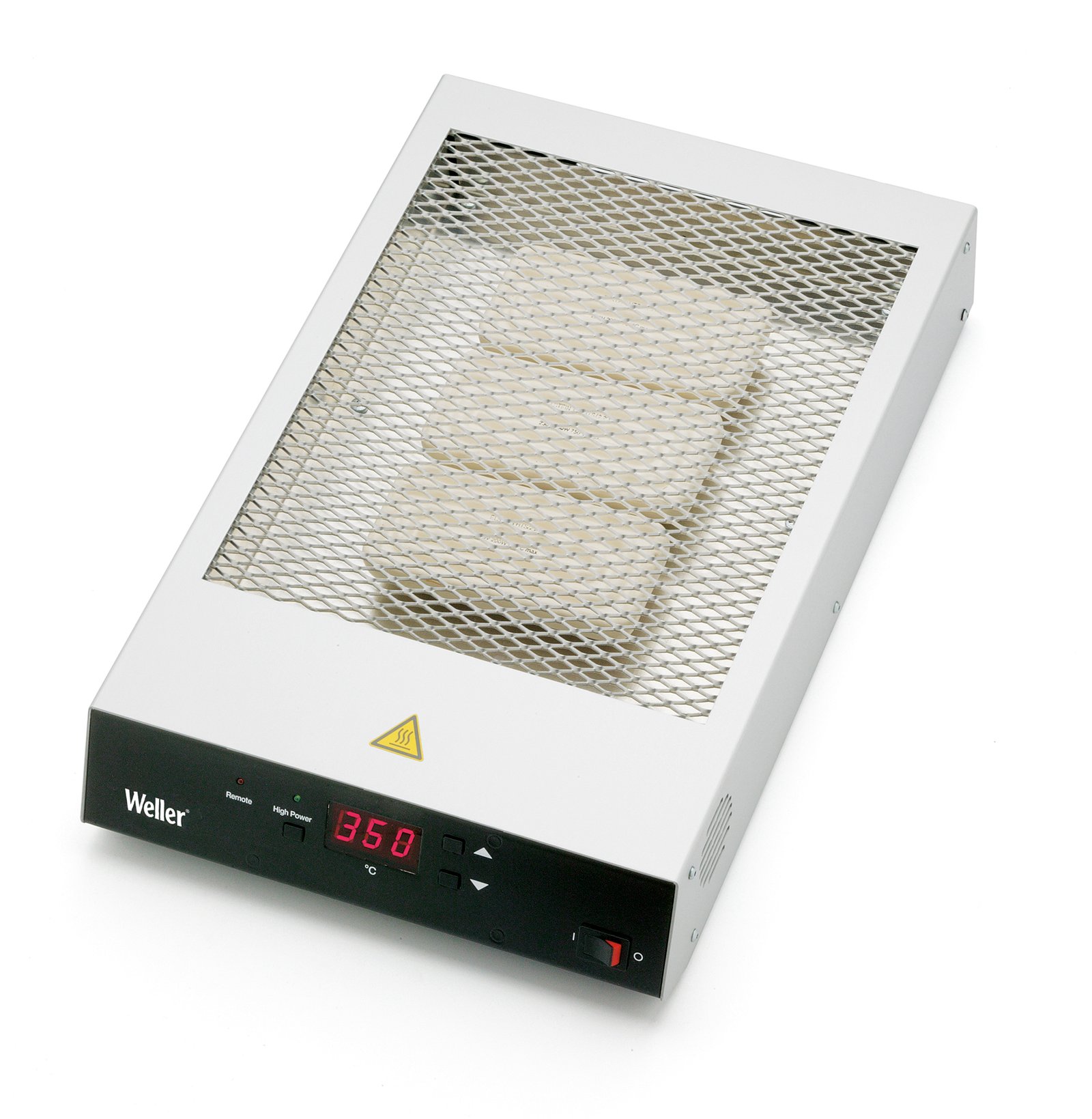

Weller WHP3000 – Infrared preheating plate 600 W with Easy Fix board holder

• WHP 3000 – 120 V – 200 to 600 Watt Digital Preheating Plate
• For rework of single or dual-sided PC board assemblies
• Short wave IR heaters ramp up the temperature of the PC board assembly from below
• Precision temperature control / 150° F – 750° F (50° C – 400° C)
• Read and set temperatures are indicated digitally

WHP3000 The IR Heating plate has a total heated area of 120 mm x 190 mm with 3 ceramic elements. The plate is used to preheat the circuit board under repair, to reduce the possibility of thermal damage Set temperatures and actual temperatures are digitally displayed. An external sensor can be connected to display actual temperatures at specific areas of the circuit under repair. The hot plate can be controlled from its own internal control system or integrated into the control system of the WHA3000P/V. When used with the WHA3000P/V the hot plate sits beneath the WBH3000S board holder.
