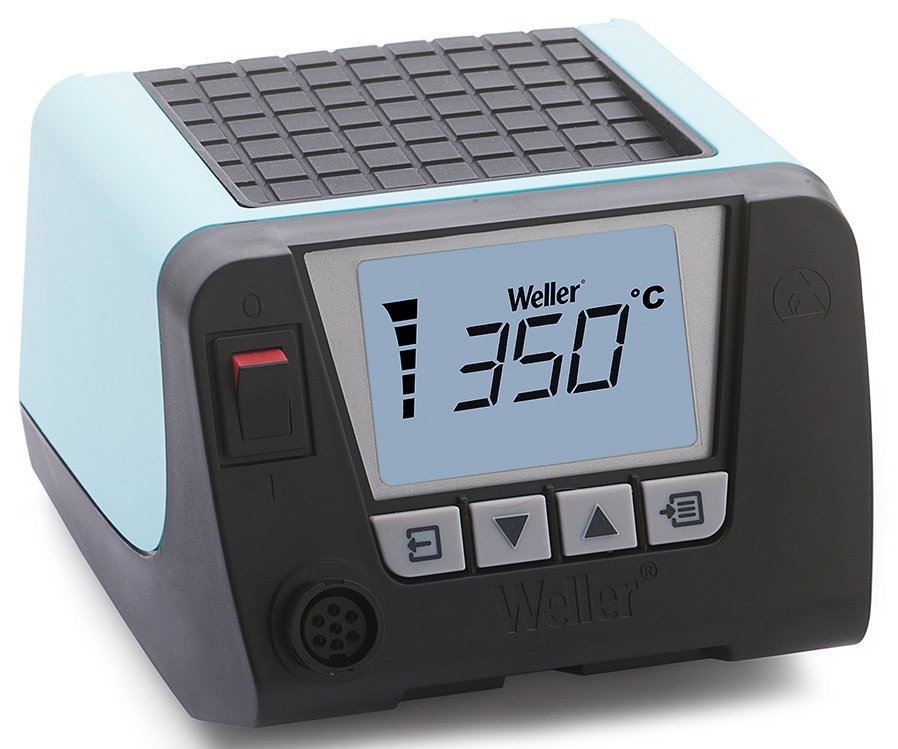

Weller WT1H Soldering Station without Handpieces

The Weller WT1HN is a 150 watt, single channel soldering station available in several configurations. It is compatible with the new WTP90 soldering pencil, and for maximum versatility, can also be used with several other handpieces and peripheral devices. Please note, the WT1HN is a station only – it does not include handpieces.

The WT1HN contains an LCD screen on its front panel, which provides a detailed overview of all station functions. Background illumination is adjustable, and a power bar graph shows output from the station to the iron tip. Menus are easily navigated through four buttons, providing access to temperature control, password protection and much more.

The WT1HN is compatible with a variety of tools, as well as other devices including preheaters, fume extractors and more. The following is a list of the most popular models. Each can be viewed through the links below:

• WTP90 – 90 watt hybrid soldering iron
• WP65 – 65 watt soldering iron
• WP80 – 80 watt soldering iron
• WSP80 – 80 watt soldering iron
• WP120 – 120 watt soldering iron
• WSP150 – 150 watt soldering iron
• WTA50 – 2×25 watt tweezer
• WHP80 – 80 watt heating plate
• WSB80 – 80 watt solder bath
• WSB150 – 150 watt solder bath
• Zero Smog TL – fume extractor

Advantages at a Glance

Front-mounted Mains Switch The front-mounted mains switch ensures easy access at all times.
Multi-functional LC Display Unique LC display with a detailed overview of all functions. Adjustable background illumination. Power bar graph allows visual monitoring of the easily-readable output power from the station to the soldering iron tip.
New Menu Button Provides the ultimate user friendly access to and navigation of the menu structure.
2-in-1 WSR Safety Rest The soldering iron holder can be rotated through 180°. The user can choose between wet and dry cleaning.
Stackable Units The WT 1 / WT 1H soldering stations can be stacked on the WTHA 1 hot air station, or on each other, saving space on the workbench.
High Performance The WT soldering stations are available in two designs: 90 W and 150 W power units with 1 channel.
Backwards Compatibility All soldering irons of the WSD and WD soldering stations can be connected. (Except micro soldering irons)
