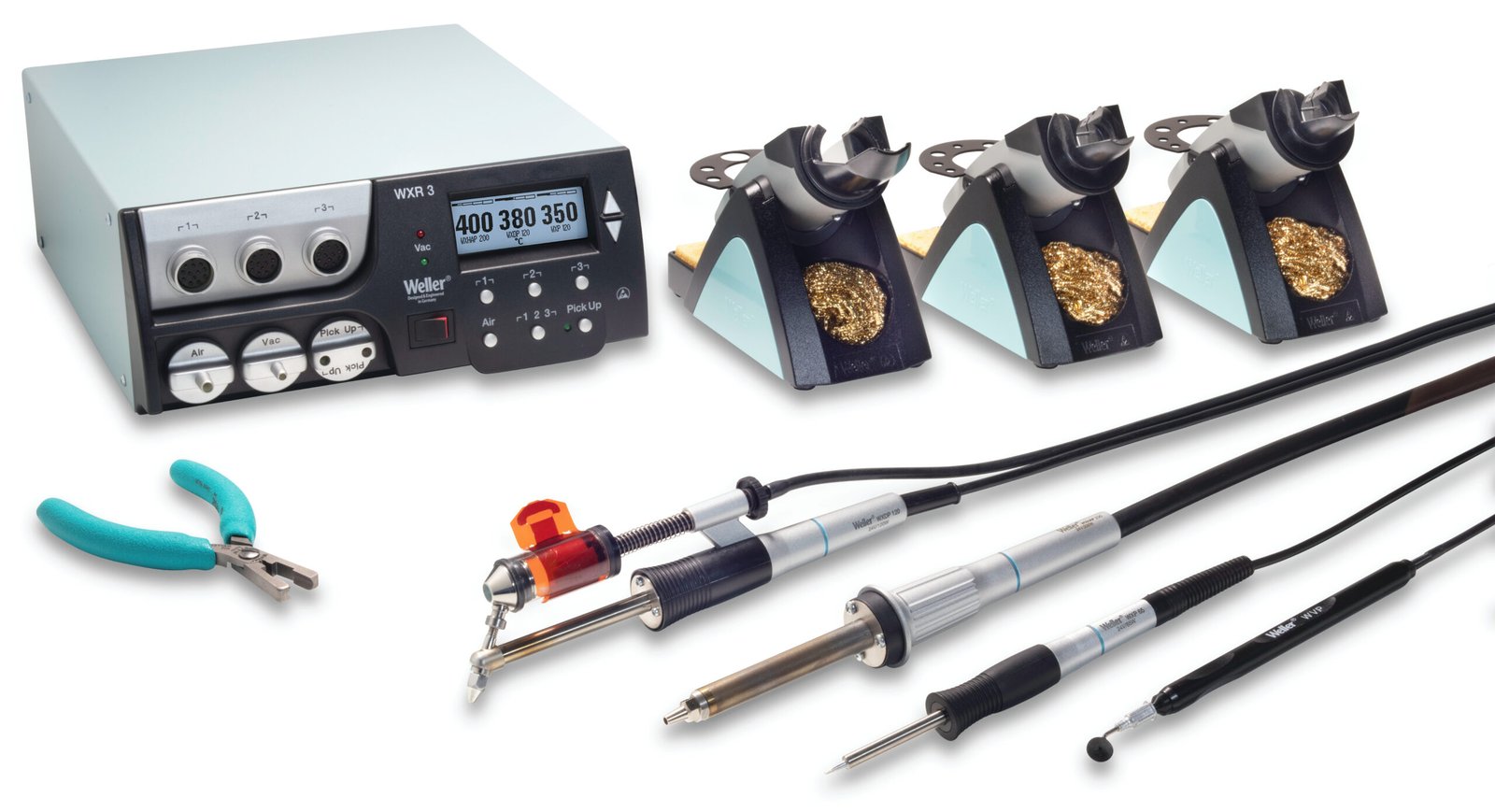

Weller WXR3001N – Three Channel Rework Station with WXHAP200, WXDP120 and WXP65

Weller WXR3001N – Three Channel Rework Station with WXHAP200, WXDP120 and WXP65

600 Watts – unique

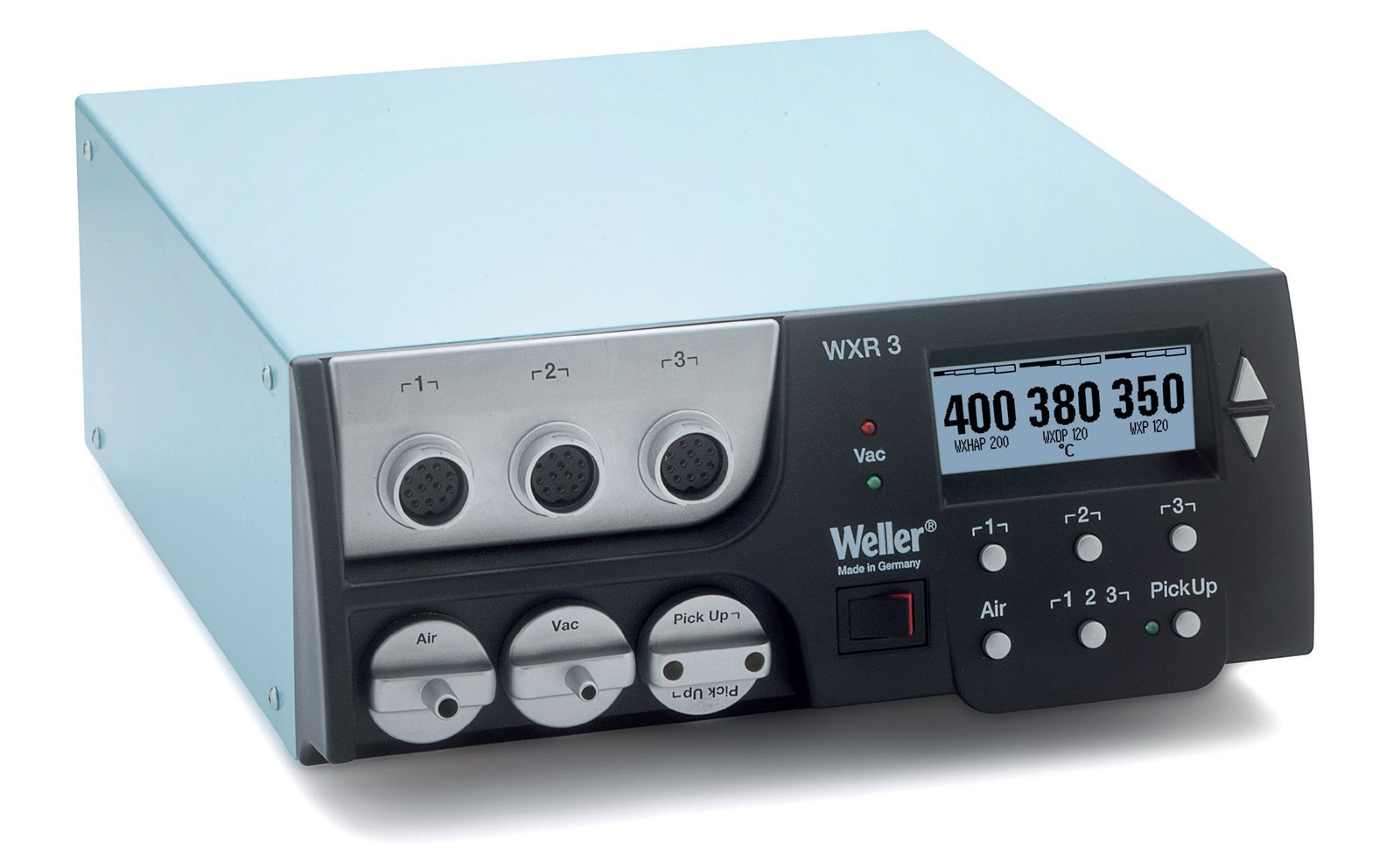

The WXR 3 is a 3-channel station with a total output of 600 W. The multi-functional WXR 3 is suitable for all applications, and can take all WX Tools.

WRK reflow kit

For soldering and desoldering of large SMT components up to 30 x 30 mm.

2 integrated pumps (self-contained)

2 integrated pumps make the system independent of a separate compressed air supply. A high-performance pump for vacuum and hot-air, and a separate vacuum pump for pick-up tools.

WVP vacuum pipette

Move components simply and safely.

User-friendliness

The LCD display shows all connected tools. Special functions can easily be set at the press of a button.

Automatic / intelligent power management

The rework station provides 600 Watts of power. Its intelligent power management function allows the available power to be distributed to the connected tools as required – a total of 600 Watts. High-performance tools can be operated at the same time. 3 channels, 200 Watts each.

The WXR3001N is compatible with a variety of tools and peripheral devices. The following is a brief list of the most popular accessories. Please click the links below for more information.

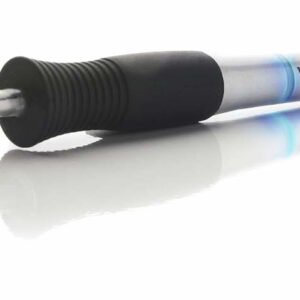

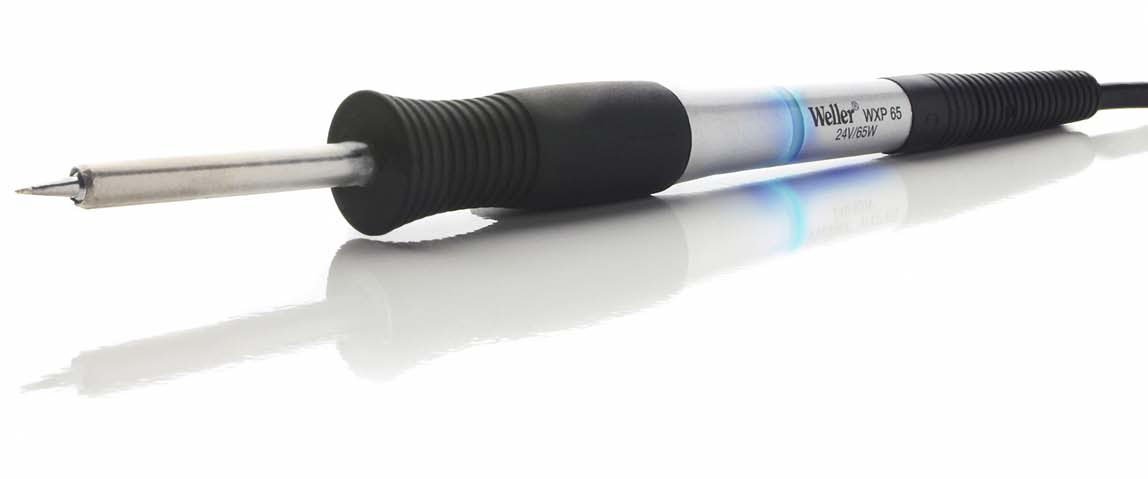

• WXP65 – 65 watt soldering iron
• WXP120 – 120 watt soldering iron
• WXP200 – 200 watt soldering iron
• WXMPMS – Micro soldering iron
• WXMTMS – Micro tweezer

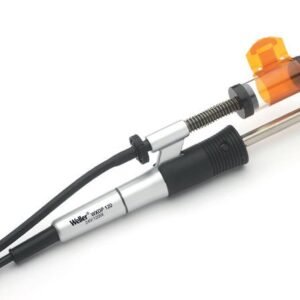

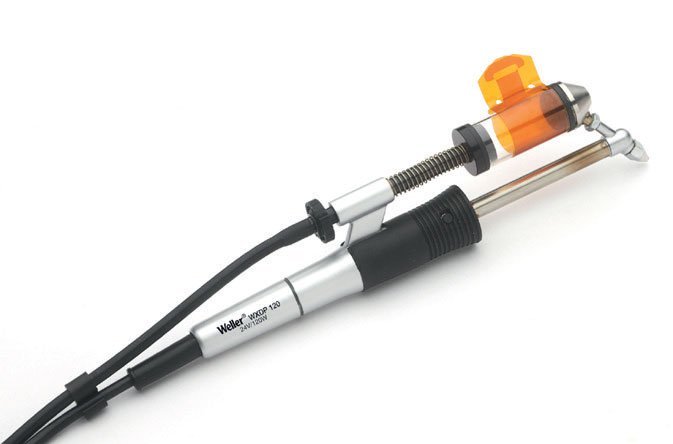

• WXDP120 – Desoldering iron
• WXDV120 – Desoldering iron

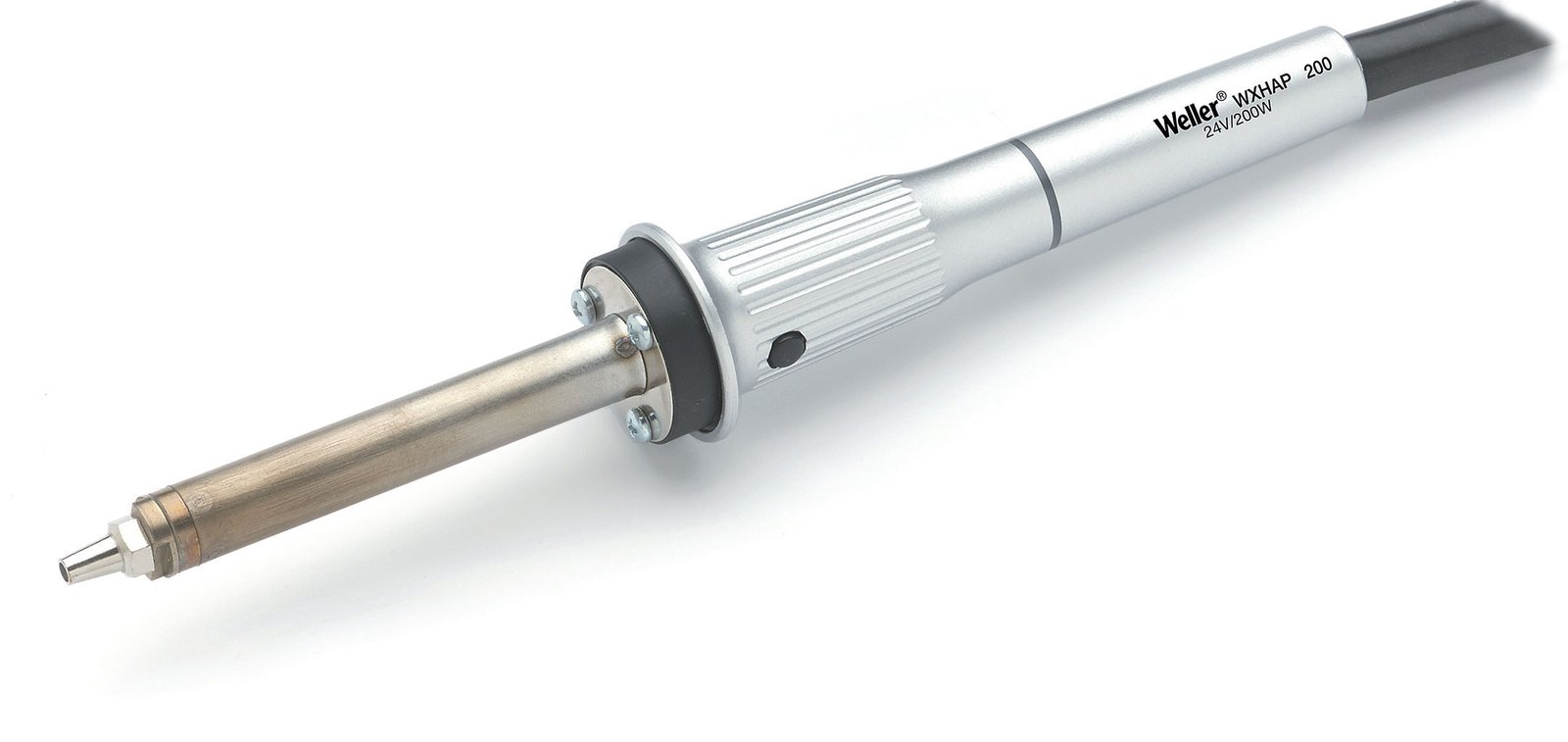

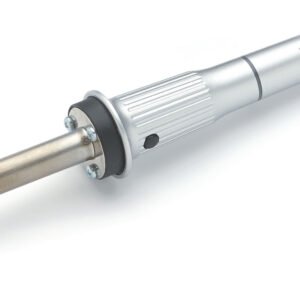

• WXHAP200 – Hot air pencil
• WXHP120 – Preheater
• WXSB200 – Solder Bath
• WHP1000 – Preheater
• WHP3000 – Preheater
• Zero Smog 4V– Fume Extractor
• Zero Smog 6V – Fume Extractor

The following is a brief overview of the WX line and tools that can be used with each station.
