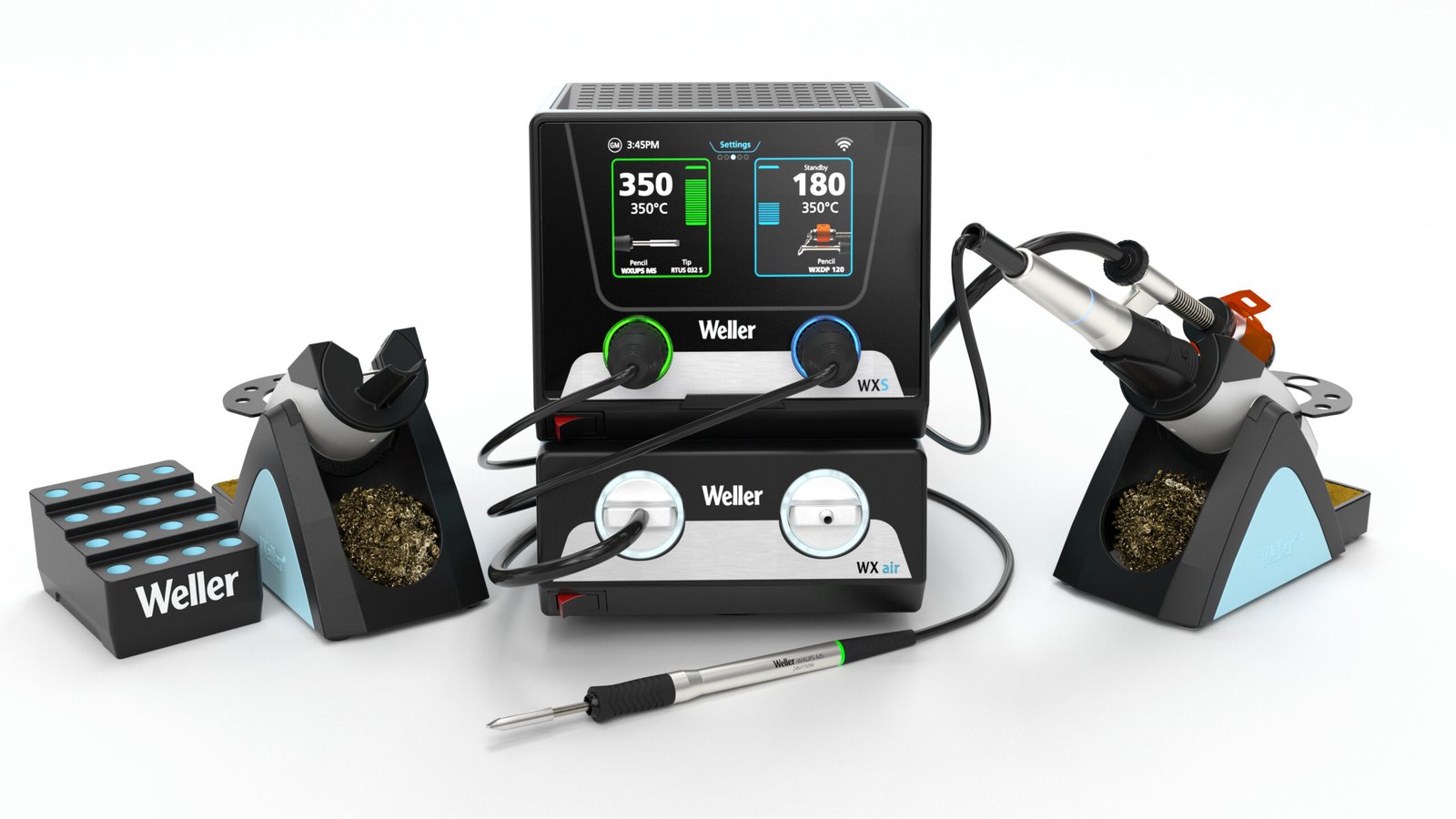

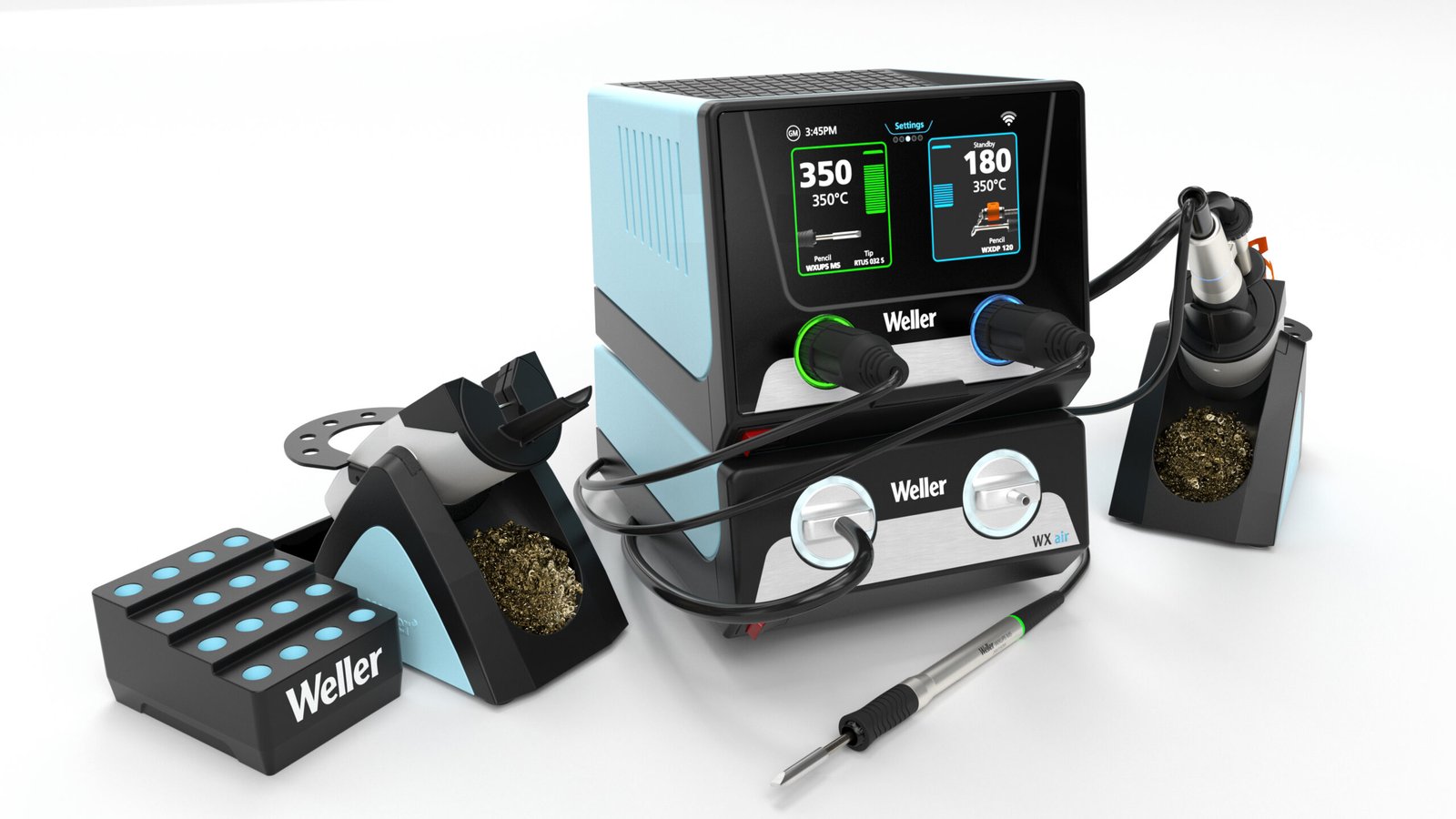

Weller WXS2020 – Rework Set with WXsmart, WXair, WXUPS MS Smart Ultra Iron and WXDP120 Desoldering Iron

The Weller WXS2020 is a package with the WXsmart station and the following items:

• WXair rework module

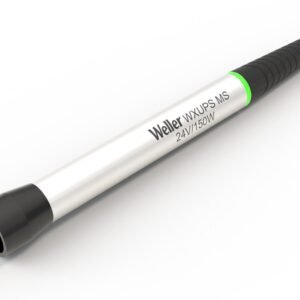

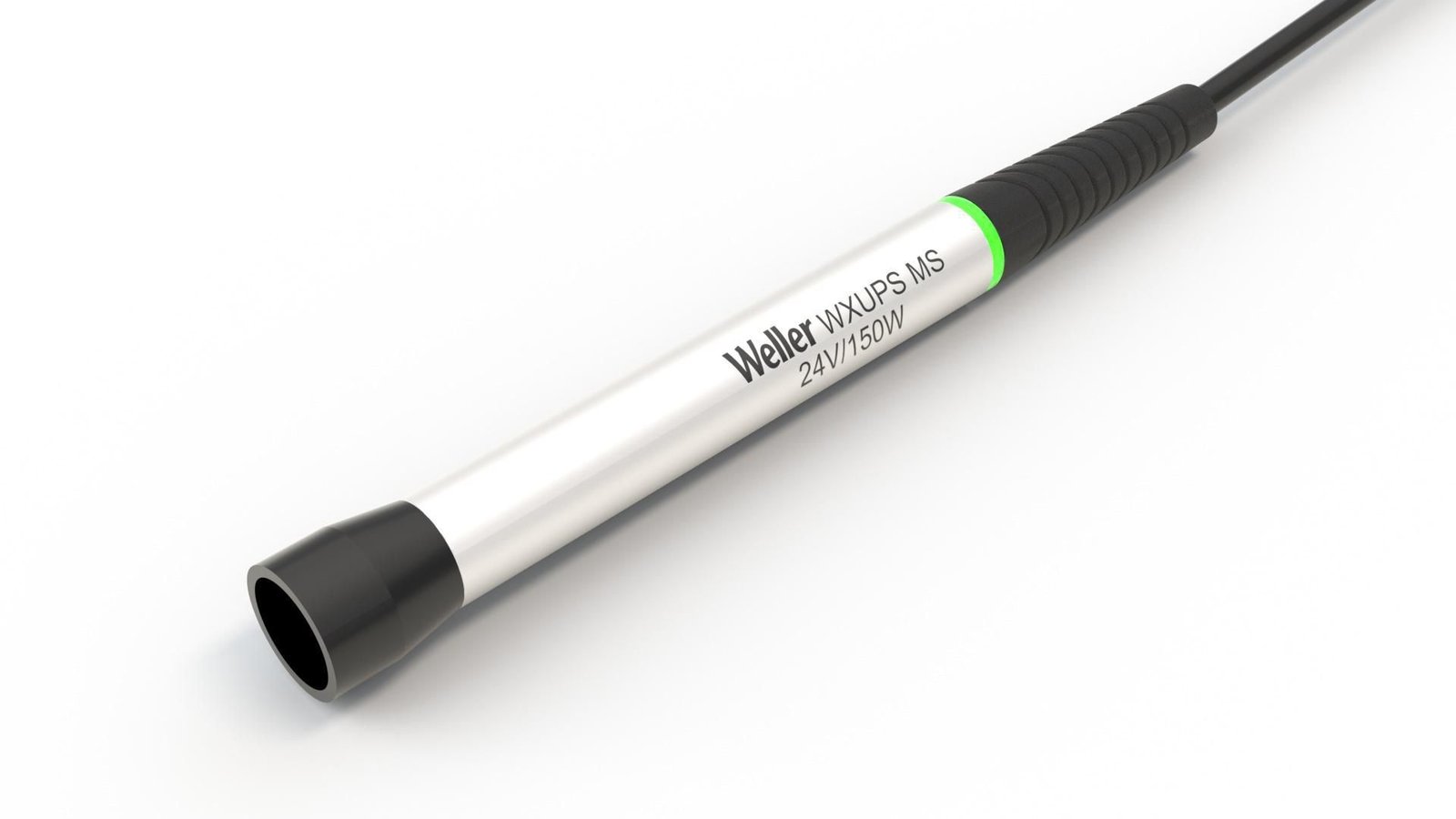

• WXUPS MS Smart Ultra soldering iron (150W)
• RTUS 032 S MS Smart Ultra soldering tip (chisel, 3.2 x 0.8mm)
• WSR200 safety rest
• WXDP120 desoldering iron (120 W)
• XDS5 nozzle (1.8mm ID, 3.3mm OD)
• WSR207 safety rest
• WCTH tip holder

The WXair module enables both vacuum and hot air functionality. This package includes the WXDP120 desoldering iron. The WXHAP200 hot air iron is sold separately.

The WXUPS MS is compatible with Smart RTUS tips. For more information on compatible tips with images, dimensions, and part numbers, please click here.

The WXDP120 is compatible with XDS nozzles. For more information on compatible nozzles with images, description, and part numbers, please click here.

Weller offers the WXsmart in several packages with the station and additional handpieces.

The chart below outlines only the main components in each. Station part numbers are listed vertically. For complete contents, please see the “In the Box” of each station’s product page.

Items listed in the top row of the chart above are as follows:

• WXsmart: Two-channel soldering station
• WXair: Hot air and vacuum module
• WXMPS MS: Smart Micro soldering iron (40W)
• WXUPS MS: Smart Ultra soldering iron (150W)
• WXDP120: Desoldering iron (120W)
• WXMTS: Smart Micro tweezer (2 x 40W)
• WXUTS: Smart Ultra tweezer (2 x 75W)

Once invested in the WXsmart platform, the system can be expanded at will.

The WXsmart can be used with many new tools, and is also backward compatible with many existing Weller products, protecting your investment and preparing for the future with only one station.

Please click here for a complete list of compatible tools and peripherals.

Compatible tools include, but are not limited to:

• WXP65 (65W), WXP80 (80W), WXP90 (90W), WXP120 (120W), WXP200 (200W) irons
• WXPP / WXPP MS Pico irons
• WXMP / WXMP MS Micro irons
• WXMPS MS Smart Pico/Micro irons
• WXUP MS Ultra iron
• WXUPS MS Smart Ultra iron
• WXMT / WXMT MS Micro tweezer
• WXMTS Smart Pico/Micro tweezer
• WXUTS Smart Ultra tweezer

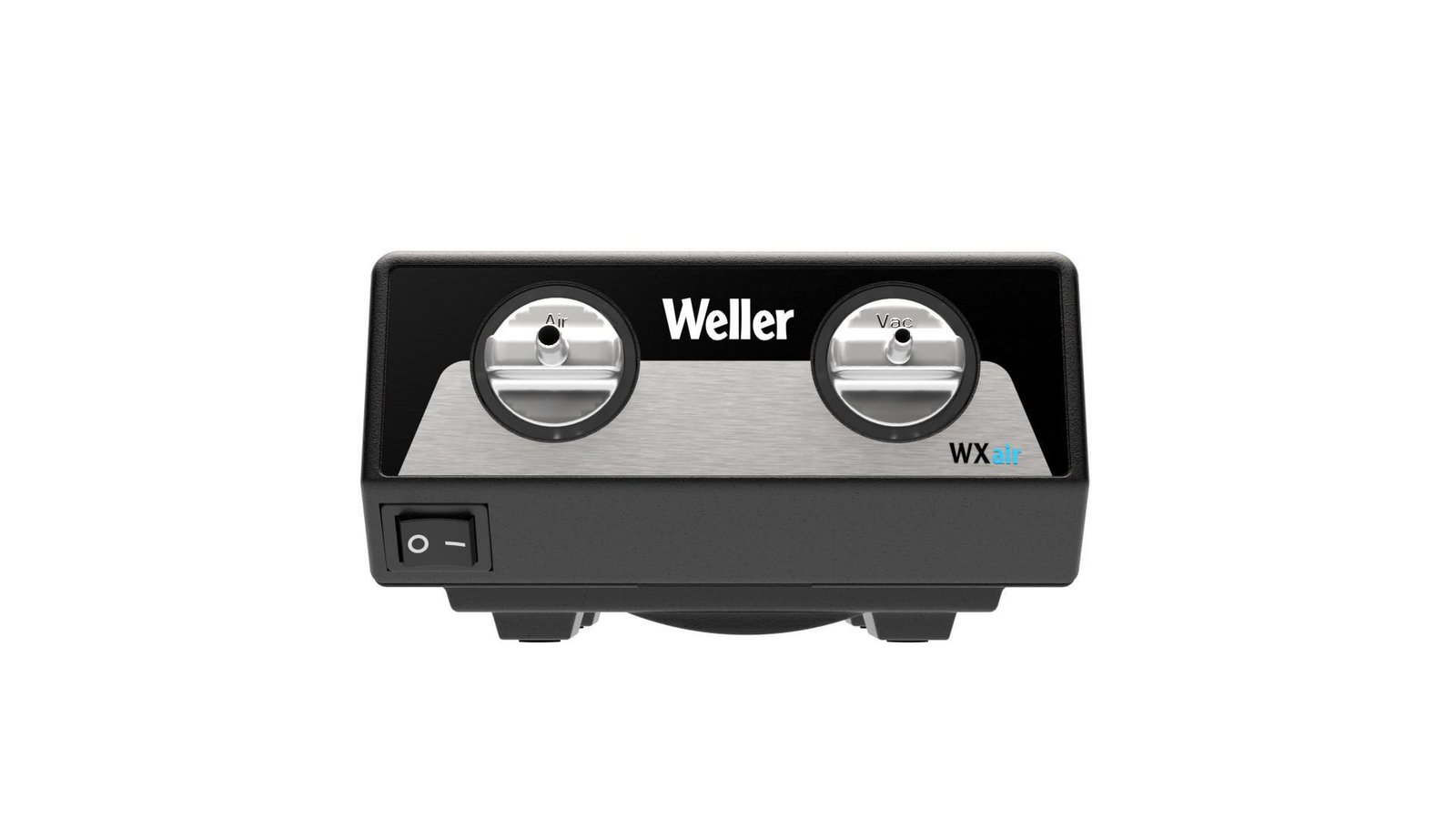

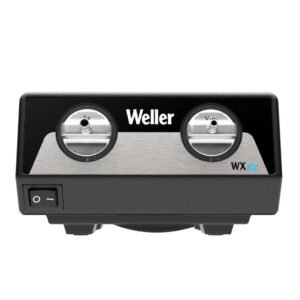

The Weller WXair module is an optimized, self-contained 2-in-1 rework module with 2 channels: vacuum and air. When used together with the WXsmart soldering station, it transforms into an all-in-one rework solution by consolidating all rework applications into one station.

It is compatible with the WXDP120 and WXDV120 desoldering irons, as well as the WXHAP200 hot air pencil. (tools sold separately).

The WXsmart provides maximum connectivity, supporting IoT standards for full traceability with mobile-enabled, easy remote-control access.

Users can connect via WiFi, LAN, USB as well as RS-232. Data transfer is easy and can be integrated into existing systems.

Supervisors can control the level of station adjustment available to operators, ranging from locked to fully autonomous. The station can also be remotely controlled via the Weller Smart Control App.

The WXsmart all-in-one station acts as the brain of the workbench by consolidating all soldering applications into one station. The platform fully supports Smart Soldering 4.0 with intelligent tips and tools saving cost, time, and space.

The WXsmart is a centralized control unit and can operate multiple devices at the same time, including:

• WXair rework module
• Fume extraction
• Preheating plate
• Soldering bath
• Calibration unit
