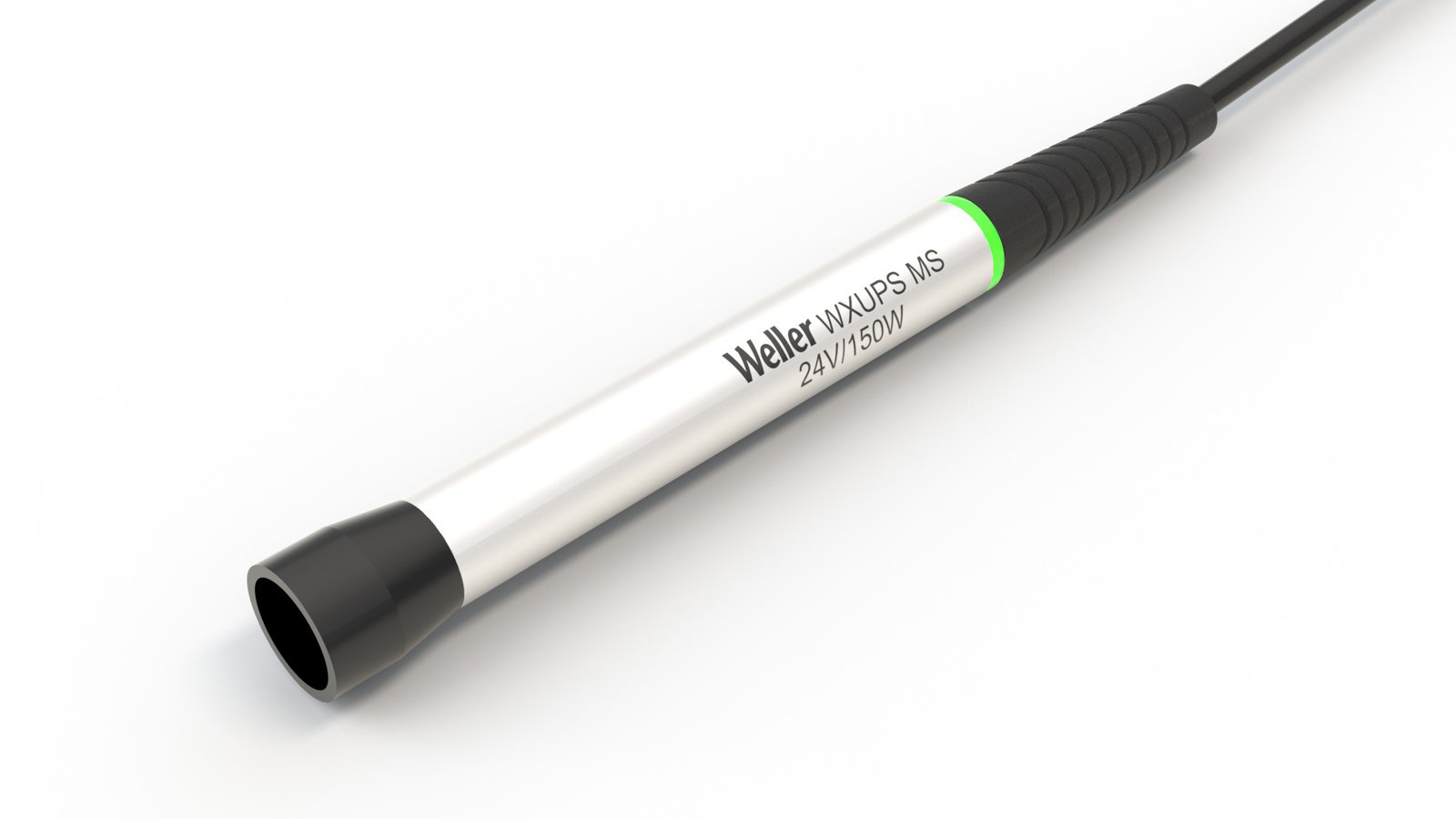

Weller WXUPSMS – Smart Ultra Soldering Iron (150W)

• 150 watt soldering iron

• Tips and stand sold separately
• Compatible with WXsmart station
• Uses Smart RTUS Ultra tips
• Ideal for heavy duty soldering applications

The Weller WXUPS MS Smart Ultra soldering iron provides 150W of power and is compatible for use with the WXsmart station. This iron is ideal for use in heavy duty applications.

Compatible tips

The WXUPS MS iron uses Smart RTUS Ultra tips. Please click here for a full listing of part numbers with images and dimensional information.

Driving for efficiency and fast heat up times

The WXUPS heavy-duty soldering Iron uses Weller´s Active Tip Technology (cartridge) for an optimized heat transfer with 150W maximum power, 24V performance. The extremely fast 7-second heat-up time delivers excellent heat transfer and recovery time during the soldering process for a high-performance continuous workflow. Short tip-to-grip distance provides maximum precision during the soldering process.

High power at the point

Thermal Core Technology provides 150W power, delivering heat through the joint, even providing precisely soldered multilayer boards.

Optimal sensor position close to the solder tip provides an excellent heat transfer, maximum power and recovery time.

Maximum protection

The WXUPS MS (military standard) smart soldering irons & soldering tips are fully compliant with IPC industry standards (IPC – TM-650 2.5.33 Measurement of Electrical Overstress from Soldering Hand Tools) and are also MIL-SPEC compliant. This provides maximum protection to both the printed circuit board and components, achieving excellent results, while keeping operating costs low.
