Description
XiTron 822-2503AH-1CH
- Single channel
- Setting time: 0.0015 mSec (low pass filter disabled)
- Resolution: Better than 0.05% of the range
- Voltage protection: Up to 3000 Vpk. Max slew rate 2500 V/uSec
- Bandwidth: 0.001 Hz to 170 kHz max.

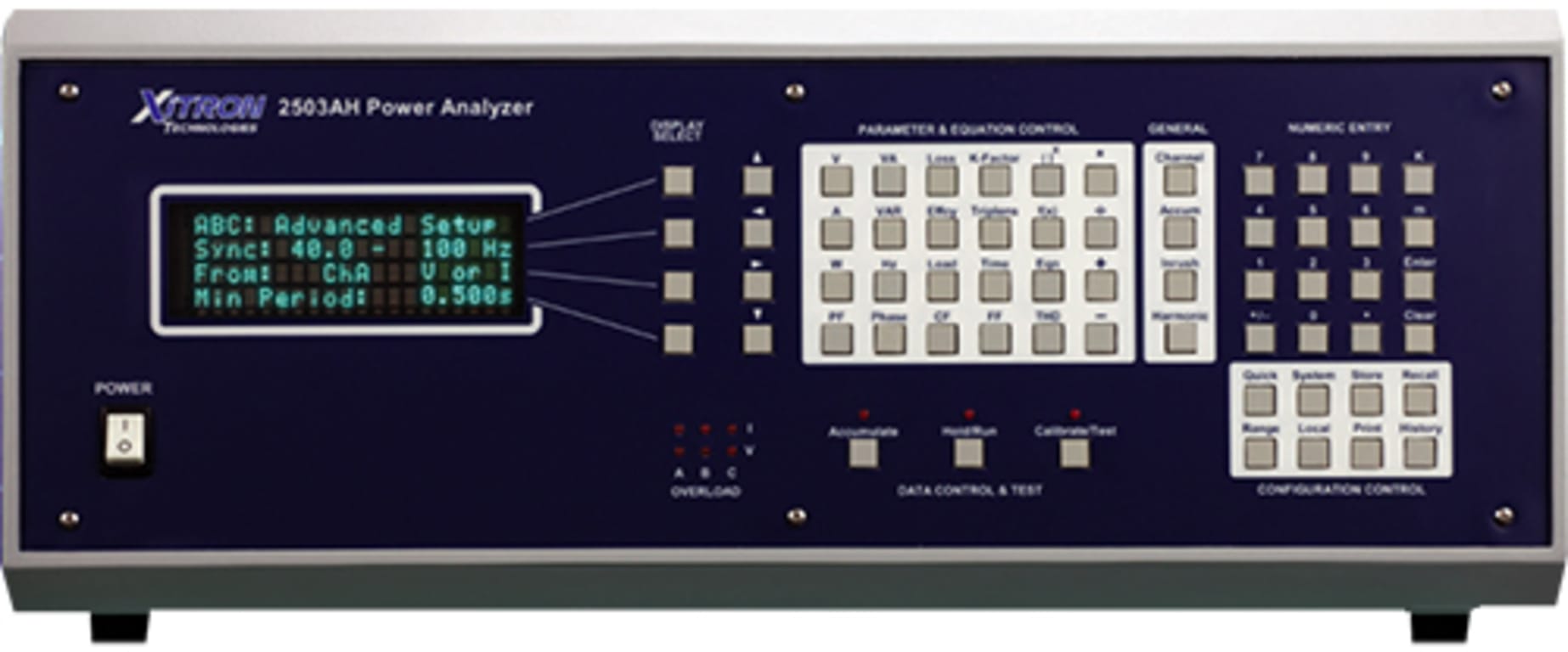

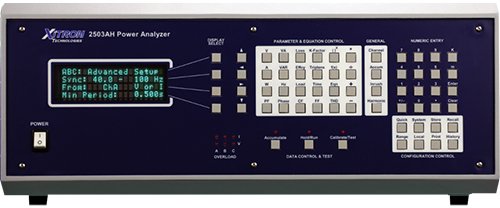

2503AH Single Channel Power Analyzer
The 2503AH Analyzers measure power, voltage, and current up to 500 kHz with premier precision. Available parameters include V, A, W, Power Factor, Crest Factor, K Factor, THD, Harmonics, Phase, VA, VAR, W.Hr, Triplens, Impedance, Inrush, Mean-Peak Values, EfficiencyLoss, etc. 2503AH high-performance Power Analyzers are among the most accurate available. Perfect for motor lighting, power conversion, and appliance test and development applications.
Vitrek power analysis instruments have set the standard for production testing. The 2503AH-1CH offers cost-effective solutions for single-phase applications such as power supply and appliance testing.
The following characteristics are available with the one (single) channel power analyzer’s capabilities.
- Can measure a voltage and a current input simultaneously.
- Can measure AC and DC signals.
- Can measure from DC to a fundamental frequency of 163kHz, a 500kHz bandwidth. This measurement includes the harmonic data contained within the frequency.
Product General Attributes | |
|---|---|
| Warranty | 2 YEARS |
| Product Weight | 28 LBS |
| Product Height | 7 IN |
| Product Length | 14 IN |
| Product Width | 17.71 IN |
| Country of Origin | United States |
