XiTron 822-XT9812 LED Programmable DC Electronic Load, 300W, 150V, 30A

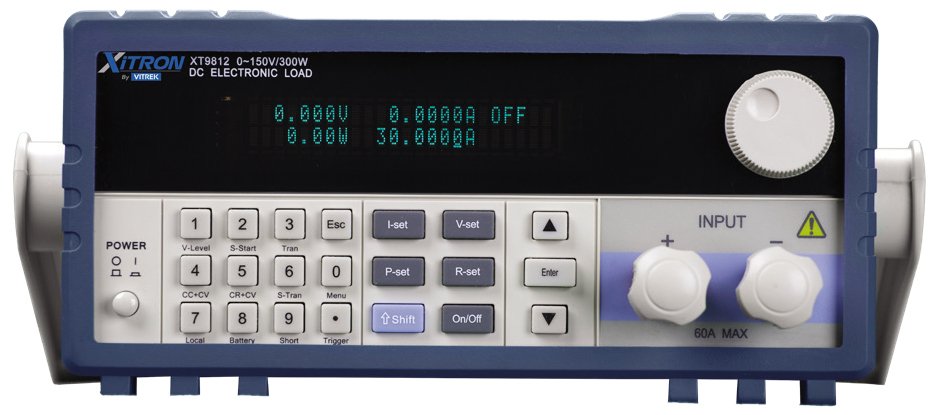

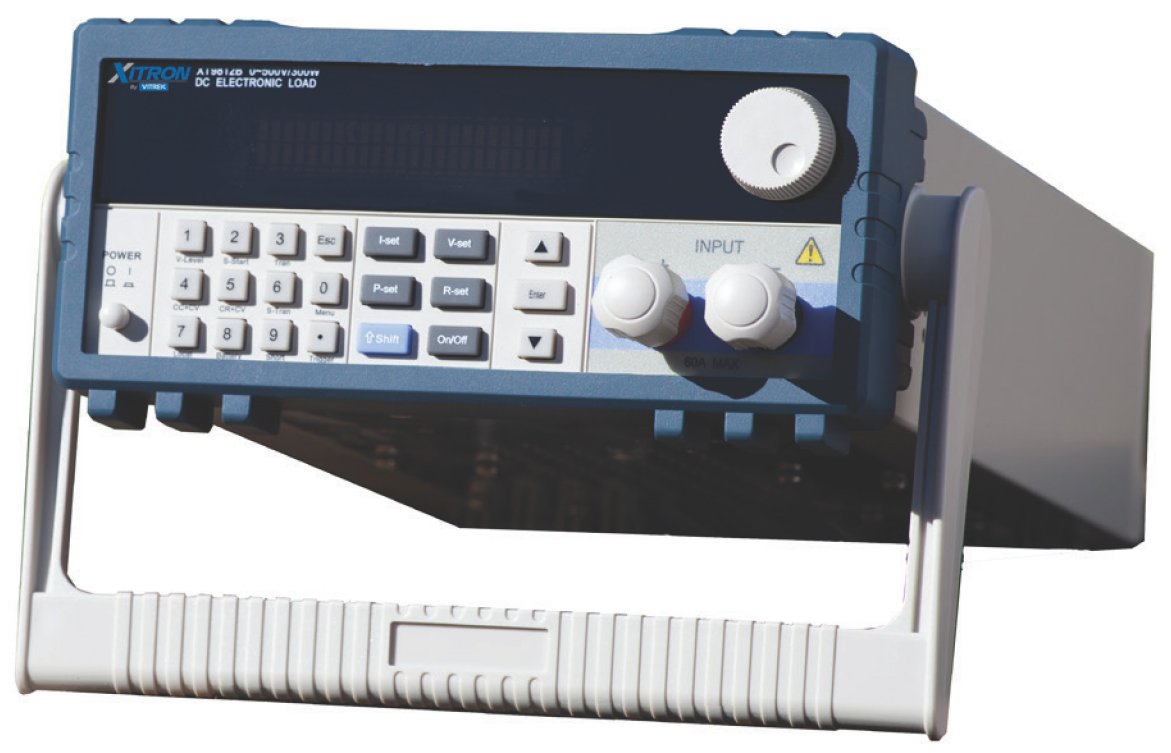

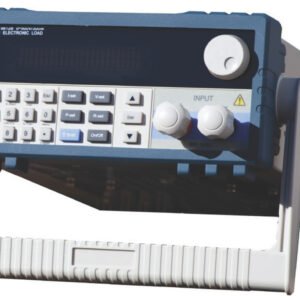

XiTron 822-XT9812 LED Programmable DC Electronic Load

Electronic DC Load

• 300W Power, 30A Current, and 150V Voltage
• High-luminance VFD screen
• Capable of dynamic testing with rising edge and falling edge settings

Provides steady reading

The XT9812 Programmable DC Electronic Load features LED mode that supports LED power driver test, provides steady reading, and capacitance sensitive driver compatible. It is capable of dynamic testing with rising edge and falling edge settings. This electronic load has soft-start time setting that runs the power supply according to the pre-set voltage value. It includes an intelligent fan system that is automatically activated based on temperature changes. It supports remote voltage compensation and multi data storage and has USB interface.

The XT9812 includes six high speed operating modes:

1. Constant Current (CC)
2. Constant Resistance (CR)
3. Constant Voltage (CV)
4. Constant Wattage (CW)
5. Constant Current (CC) + Constant Voltage (CV)
6. Constant Resistance (CR)+ Constant Wattage (CW)

XView Software Compatible

While all XiTron precision test equipment is designed to be used in a completely stand-alone manner, there are times when external tools can aid or enhance the operation of an instrument. XView software tools and drivers are designed to help easily configure an instrument from a single screen. or are used to view a complete set of measurements in a single screen. Other XView tools are designed for data collection where results can be recorded in an Excel-compatible file for post-processing, insertion into reports, or simply for archival purposes.

Industries Served

• Lighting Consumer Products
• Medical Automotive
• Regulatory Agencies

• Process Control
• Power Supply
• Battery

• Alternative Energy
• Military
• Aerospace
