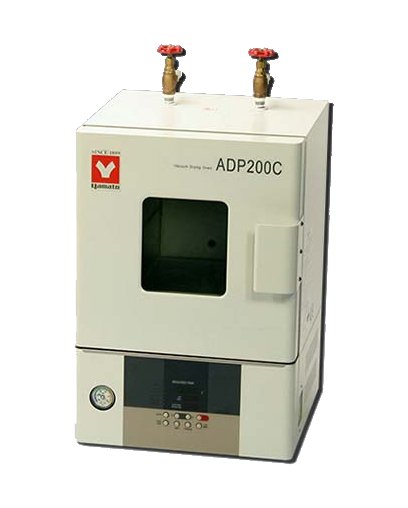

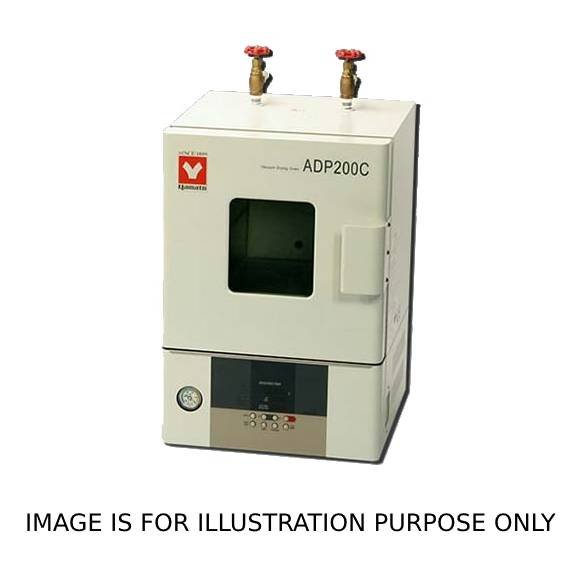

Yamato ADP-210C – Programmable Vacuum Drying Oven, 10L, 220V
34 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
Programmable Vacuum Drying Oven 10L 220V. (Does not include plug.)
- Internal capacity: 10L
- Power source: 220V 3.5A (no plug, round terminal)
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description
Yamato ADP-210C
- Capacity: 10L
- Power source: 220V 3.5A (no plug, round terminal)
- Heater: Mica heater / 0.68kW
- Weight: ~30kg
- Operating temp. range: 40~240°C
Programmable Vacuum Drying Oven, 10L, 220V
Standard small size benchtop vacuum drying ovens with enhanced safety features
Performance and functions
- Easy input of parameters and settings
- Digital PID controller supports fixed temperature, quick auto-stop, auto stop, auto start and program operations
- Self-diagnostic and overheating prevention functions
- Silicon rubber door seal prevents air from leaking
- Independent over heating prevention device for each circuit
- Customizable with N₂ gas inlet and communication ports
- Calibration off-set function
- Easy maintenance
Safety features
- Sensor trouble detection, SSR, short circuit detection, heater disconnecting detection, memory error, overheating and measurement temperature error
ADP Series Comparison
| SKU | ADP200C | ADP300C |
| ADP210C | ADP310C | |
| Max. Temp. Reaching Time | ~70min. | ~100min. |
| Heater | Mica heater / 0.68kW | Mica heater / 1.05kW |
| Internal Dimensions WxDxH | 200 x 250 x 200mm | 300 x 300 x 300mm |
| External Dimensions WxDxH | 400 x 412 x 603mm | 500 x 465 x 705mm |
| Internal Capacity | 10L | 27L |
| Shelf Rest Step Number | 2 steps | 3 steps |
| Shelf Rest Pitch | 65mm | 75mm |
| Power Source | AC115V 6A (with plug) | AC115V 9.5A (with plug) |
| AC220V 3.5A (no plug, round terminal) | AC220V 5A (no plug, round terminal) | |
| Weight | ~30kg | ~55kg |
| Included Accessories | Shelf plate (Aluminum perforated metal) 2 pcs. | Shelf plate (Aluminum perforated metal) 3 pcs. |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 10 L |
| Voltage (Life Science) | 208-240 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 240 C |
| Min Temp (Incubator/Oven/Chamber) | 40 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer, Vacuum Drying, Visibility – Door with window |
Product General Attributes | |
| Warranty | 1 YEARS |
| Product Weight | 66.14 LBS |
| Product Height | 23.74 IN |
| Product Length | 16.22 IN |
| Product Width | 15.75 IN |
| Shipping Weight | 76.06 LBS |
You must be logged in to post a review.
Manuals/Guides
BrochuresSpec SheetsComparison
| Weight | 66.14 lbs |
|---|---|
| Dimensions | 16.22 × 15.75 × 23.74 in |
