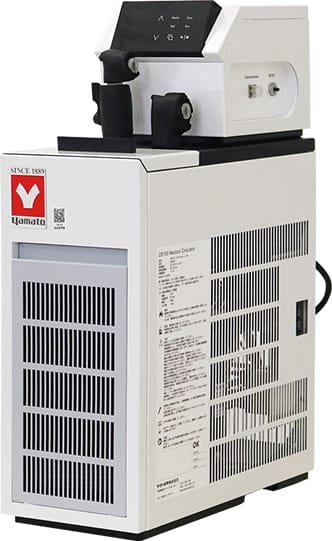

Yamato CB-100 – Benchtop Water Circulator, 3.4L, 115V

• Wide temperature range of -10 – 80°C
• High head and flow rate
• Easy to clean cooling air intake filter
• Standard equipped with drain

The Yamato CB-100 Benchtop Water Circulator can be used for various applications, such as maintaining temperature for cell samples in a spectrofluorometer and a viscometer. Lift is ~3.3/4.7m (50/60 Hz), which is very high in this class, so even piping with pressure loss can be circulated sufficiently. In addition, the maximum flow rate is as large as ~6.8/8.0L/min (50/60 Hz). The lift and flow rates allow stable circulation even when installed under a desk.

The filter mounting plate located on the front of the unit can be easily removed when cleaning. Maintenance work such as replacement of liquid can be easily performed. After use, it can be stored in the space inside the main unit. Since the nozzle is freely rotatable, it can be installed in any direction.

With a width of 180mm and a depth of 360mm, this benchtop water circulator is ideal for limited spaces. Since the alternative CFC refrigerant R-134a is used, the global warming potential is as low as 1430, which is good for the global environment.
