Yamato DE-611 – Forced Convection Cleanroom Oven, 216L, 220V 3 Phase, Up To 260ºC Max Temp
21 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Clean Oven 216L, 220V 3 Phase, Up To 260?C Max Temp. (Does not include plug.)
- Internal capacity: 216L
- Power source: 220V 3 phase 10A (no plug, round terminal)
- Operating Temp. Range: Room temperature 30 to 260°C
- Improved visibility and operability with its V type controller
- Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel
- Adopts anti-fouling casters which prevents wheel contamination during transportation
- Improved visibility of HEPA filter replacement timing by three color indication
- Enhanced safety with its phase-reversal relay detecting incorrect power source at installation
Guarantee Safe and Secure Payment Checkout
Description
Yamato DE-611
- Internal capacity: 216L
- Power source: 220V 3 phase 10A (no plug, round terminal)
- Operating Temp. Range: Room temperature +30 to 260°C
- Improved visibility of HEPA filter replacement timing by three-color indication
- Displays power consumption, CO₂ emissions and heater manipulated variables on the control panel

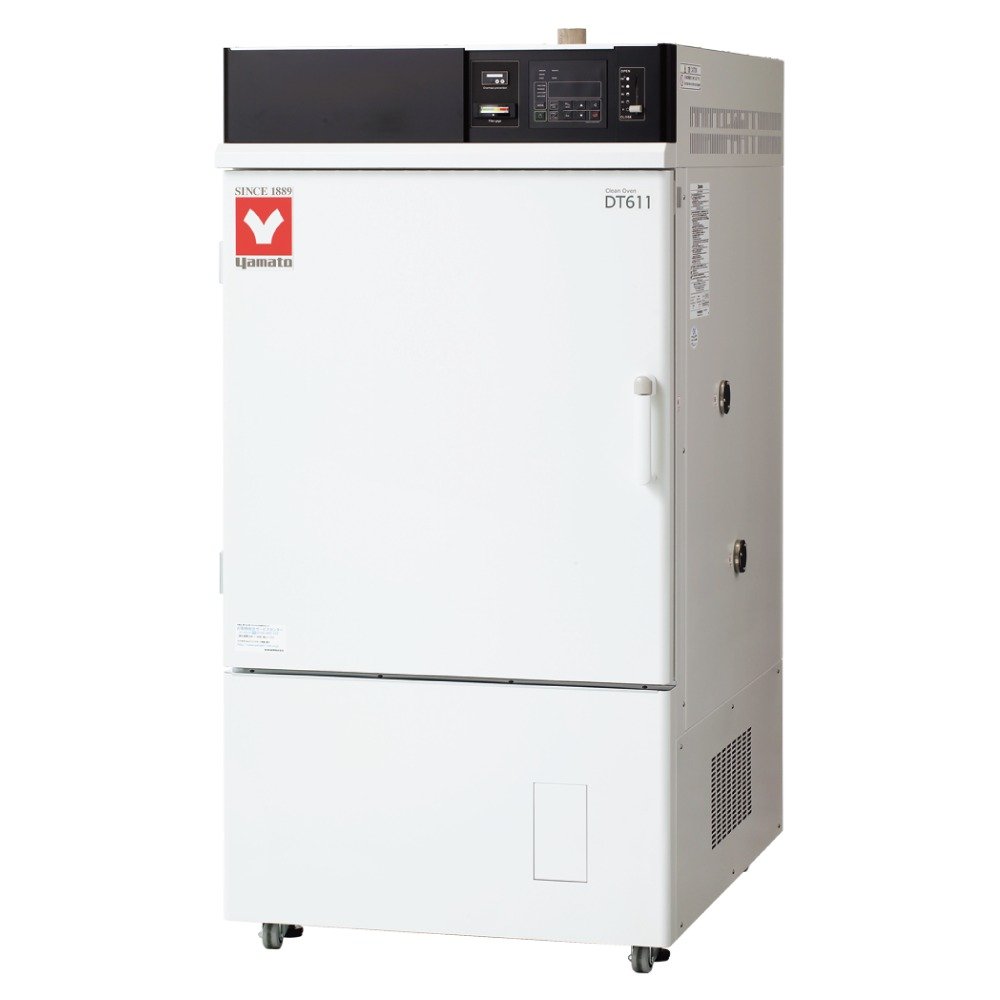

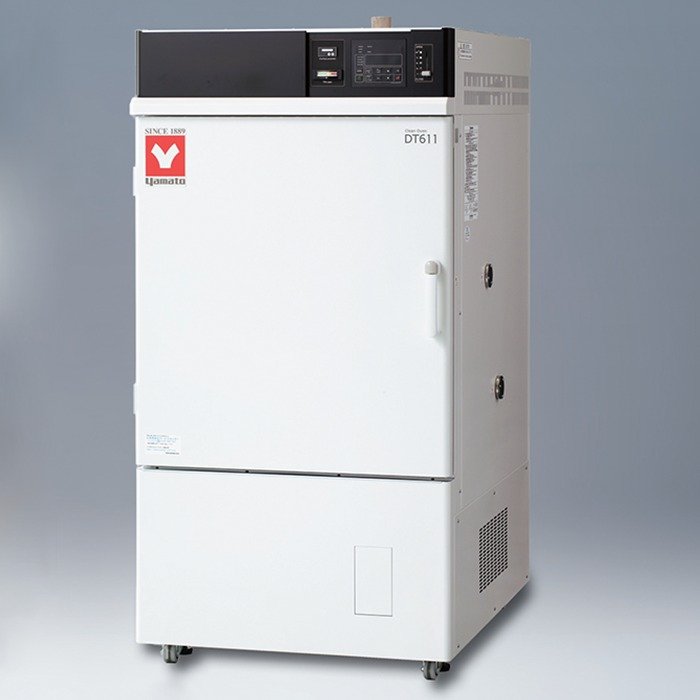

Forced Convection Cleanroom Oven, 216L, 220V 3 Phase, Up To 260ºC Max Temp
The Yamato DE-611 Class 100 forced convection cleanroom ovens to feature advanced temperature control and uniformity for temperature testing in a dust-free environment. Rely on the DE mechanical clean room ovens to carry out unmatched drying, sterilization, or any heating applications that require a temperature range of up to 260°C.
Method
Components
DE Series Comparison
| DE411 | DE611 | |
| Internal Dimensions WxDxH | 450×450×450 mm | 600×600×600 mm |
| External Dimensions WxDxH | 700×1025×1570 mm | 850×1175×1720 mm |
| Internal Capacity | 91L / 3.21 cu. ft. | 216L / 7.62 cu.ft. |
| Weight | ~200 kg / ~441 lbs. | ~270 kg / ~596 lbs. |
| Shelf Rest / Pitch | 12 steps / 30mm | 17 steps / 30mm |
| Power Supply 50/60Hz (V±10%) | 220V 3 phase 7A | 220V 3 phase 10A |
| (no plug, round terminal) | (no plug, round terminal) | |
| Shelf Plate / Bracket | 2 pcs. / 4 pcs. | 3 pcs. / 6 pcs. |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 216 L |
| Voltage (Life Science) | 208-240 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 260 C |
| Min Temp (Incubator/Oven/Chamber) | 55 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer |
Product General Attributes | |
| Unique Features | 220V 3-phase |
| Warranty | 1 YEARS |
| Product Weight | 596 LBS |
| Product Height | 68 IN |
| Product Length | 46.25 IN |
| Product Width | 33.5 IN |
| Power Supply Voltage | 220V Only |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 596 lbs |
|---|---|
| Dimensions | 46.25 × 33.5 × 68 in |
