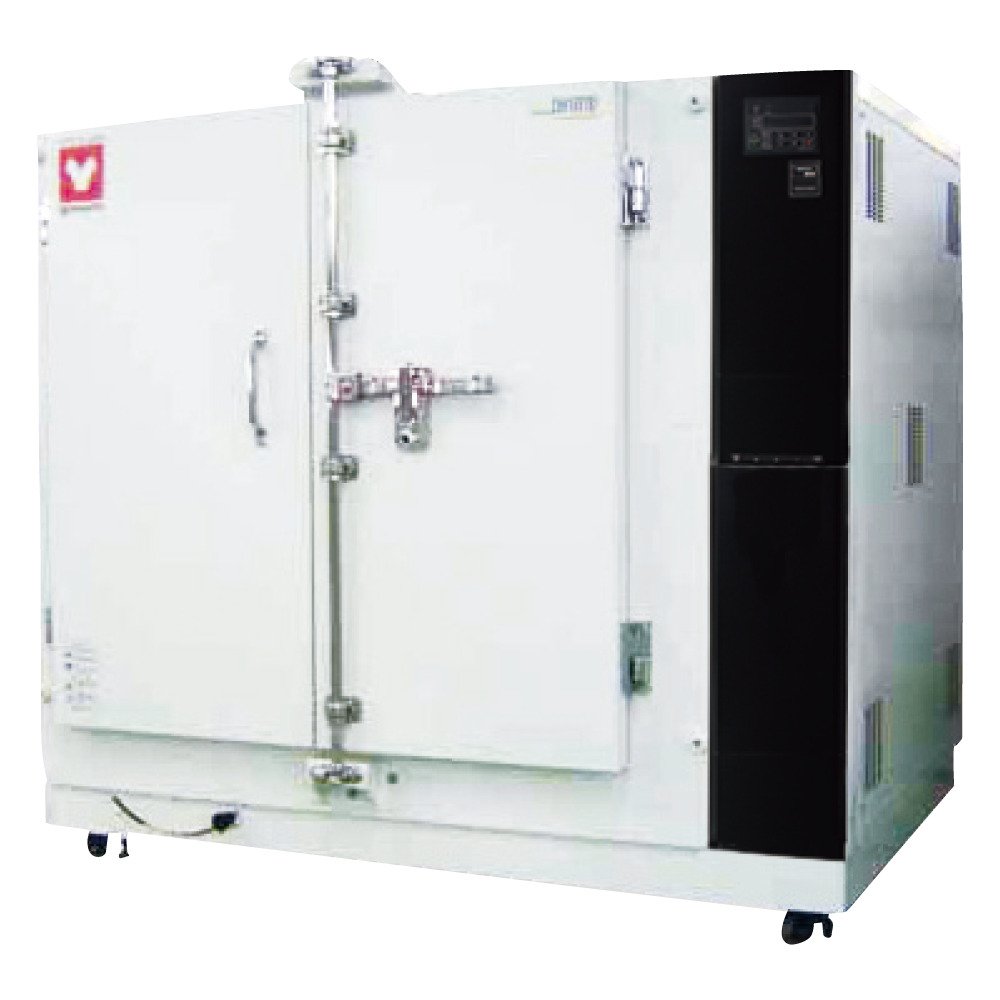

Yamato DF-1032 – Programmable Fine Oven, 1000L, 220V 3 Phase
24 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Programmable Fine Oven 1000L 220V 3 Phase. (Does not include plug.)
- Internal capacity: 1000L
- Power source: 220V 19A (Three-phase)
- Features power consumption/ CO2 emissions monitoring
- Allows precision maintenance of large parts at a constant temperature
- Quick exhaust and cooling in the unit with the exhaust damper
- Interactive key entry on the control panel with a green LED digital display for easy settings
- Increased safety and self diagnostic functions
- Stainless steel pipe heater with fins
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description
Yamato DF-1032
- Capacity: 1000L
- Power source: 220V 19A (Three-phase)
- Heater: 6.0kW
- Operating temp. range: Room temp. +15°C~200°C
- Sensor: K-thermocouple (double sensor)
Programmable Fine Oven, 1000L, 220V 3 Phase
- Allows precision maintenance of large parts at a constant temperature
- Quick exhaust and cooling in the unit with the exhaust damper
- Interactive key entry on the control panel with a green LED digital display for easy settings
- Features power consumption/ CO2 emissions monitoring
- Increased safety and self-diagnostic functions

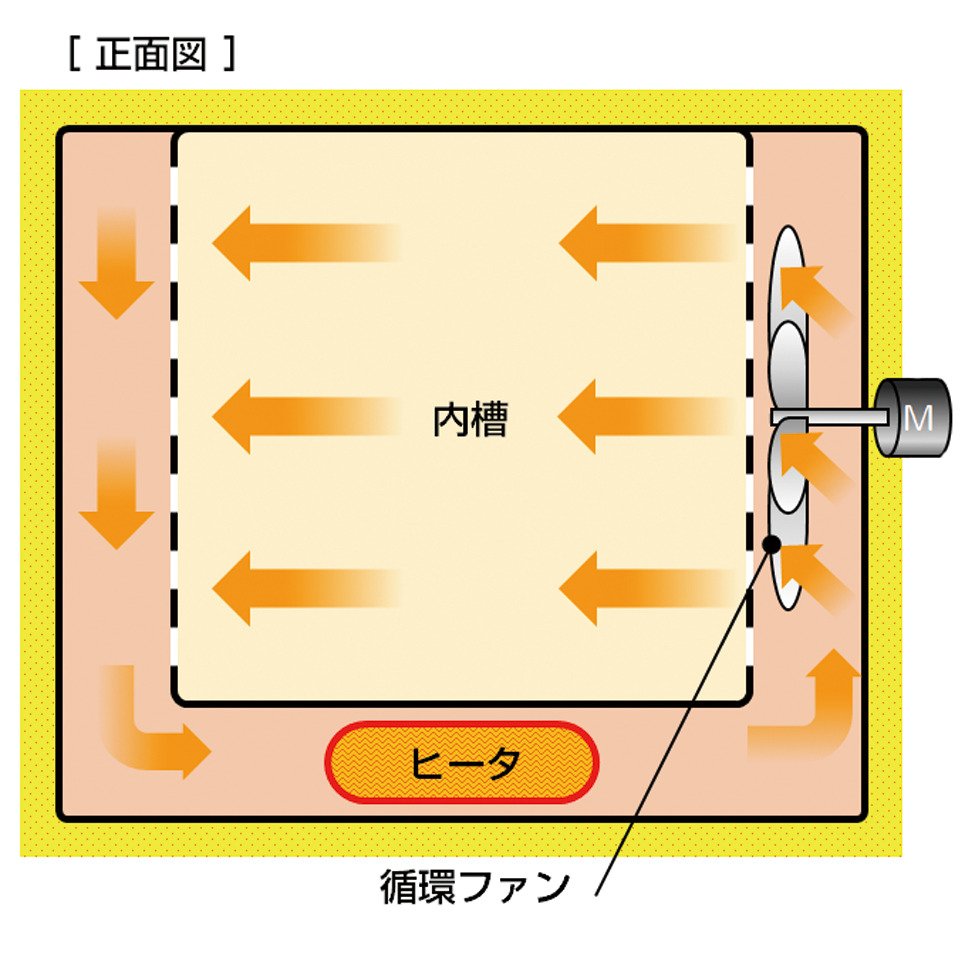

Method
Control Panel
DF Series Comparison
| DF412 | DF612 | DF-832 | DF-1032 | |
| System | Forced air circulation and ventilation | Forced air circulation and ventilation | Forced air circulation and ventilation | Forced air circulation and ventilation |
| Operating Temp. Range*¹ | Room temp. +15~260°C | Room temp.+15oC~260°C | Room temp. +15°C~200°C | Room temp. +15°C~200°C |
| Temp. Adjustment Accuracy*¹ | ± 0.1°C (at 260°C) | ± 0.1°C (at 260°C) | — | — |
| Temp. Distribution Accuracy*¹ | ± 1.5°C (at 260°C) | ± 1.5°C (at 260°C) | — | — |
| Max. Temp. Reaching Time*¹ | ~40 min. (reaches 260°C when setting at 270°C) | ~40 min. (reaches 260°C when setting at 270°C) | — | — |
| Heater Capacity | 2.1 kW | 3.0 kW | 4.5kW | 6.0kW |
| Earth Leakage Breaker | 15A | 20A | — | — |
| Internal Dimensions*² W×D×H | 450×450×450 mm | 600×600×600 mm | 800×800×800 mm | 1000×1000×1000mm |
| External Dimensions*² W×D×H | 1050×630×850 mm | 1200×780×1000 mm | 1,500×1,015×1,330mm | 1700×1215×1530mm |
| Internal Capacity | 91L | 216L | 512L | 1000L |
| Shelf Support Qty. / Pitch | 9 steps / 45mm | 9 steps / 60mm | — | — |
| Power Source 50/60 Hz Single Phase | AC220V 12.5A (no plug, round terminal) | AC220V 17.5A (no plug, round terminal) | 3 phase AC220V 14A | 220V 19A (Three-phase) |
| Weight | ~112 kg | ~156 kg | 350kg | 450kg |
| Shelf / Bracket | 2 pcs / 4 pcs | 3 pcs / 6 pcs | 3 pcs. / 6 pcs. | 3 pcs. / 6 pcs. |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 1000 L |
| Voltage (Life Science) | 208-240 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 200 C |
| Min Temp (Incubator/Oven/Chamber) | 35 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer |
Product General Attributes | |
| Unique Features | 220V 3-phase |
| Warranty | 1 YEARS |
| Product Weight | 992.08 LBS |
| Product Height | 60.24 IN |
| Product Length | 47.83 IN |
| Product Width | 66.93 IN |
| Shipping Weight | 1140.89 LBS |
| Power Supply Voltage | 220V Only |
You must be logged in to post a review.
Manuals/Guides
Brochures
| Weight | 992.08 lbs |
|---|---|
| Dimensions | 47.83 × 66.93 × 60.24 in |
