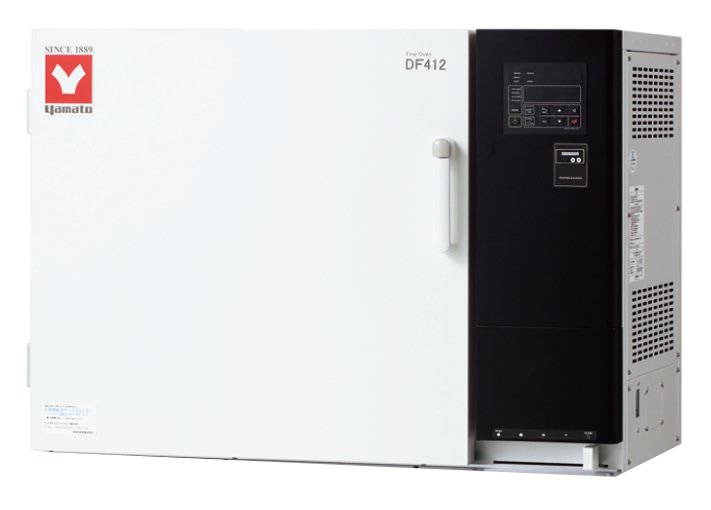

Yamato DF-412 – Programmable Fine Oven, 91L, 220V
40 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:3 days
Programmable Fine Oven 91L 220V. (Does not include plug.)
- Internal capacity: 91L
- Power source: 220V 12.5A (no plug, round terminal)
- Standard equipped with adjustable air speed function and displays of power consumption, CO₂ emission and heat timer
- Improved visibility and operability of control panel
- Precise temperature stability & uniformity
- Enhanced program operation function (maximum 99 steps, 99 patterns, repetitive operation function)
- Improved safety with fan motor error detection
- 1 year warranty
Guarantee Safe and Secure Payment Checkout
Description
Yamato DF-412
- Capacity: 91L
- Power source: 220V 12.5A (no plug, round terminal)
- Heater capacity: 2.1 kW
- Earth leakage breaker: 15A
Programmable Fine Oven, 91L, 220V
Highly reliable and accurate fine ovens with simple settings for various temperature characteristic tests requiring complicated programming
Performance and functions
- Improved visibility and operability of control panel
- Precise temperature stability & uniformity
- Standard equipped with adjustable air speed function and displays of power consumption, CO₂ emission and heat timer
- Enhanced program operation function (maximum 99 steps, 99 patterns, repetitive operation function)
- Improved safety with fan motor error detection
- Exhaust damper allows quick exhaust and cooling off inside chamber
- Equipped with exhaust and cable ports
Safety features
- Self-diagnosis circuit (abnormal temp. sensing, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, earth leakage breaker, key lock and door switch
Method
Control Panel
DF Series Comparison
System | Forced air circulation and ventilation | Forced air circulation and ventilation | Forced air circulation and ventilation | Forced air circulation and ventilation |
Operating Temp. Range*¹ | Room temp. +15~260°C | Room temp.+15°C~260°C | Room temp. +15°C~200°C | Room temp. +15°C~200°C |
Temp. Adjustment Accuracy*¹ | ± 0.1°C (at 260°C) | ± 0.1°C (at 260°C) | — | — |
Temp. Distribution Accuracy*¹ | ± 1.5°C (at 260°C) | ± 1.5°C (at 260°C) | — | — |
Max. Temp. Reaching Time*¹ | ~40 min. (reaches 260°C when setting at 270°C) | ~40 min. (reaches 260°C when setting at 270°C) | — | — |
Heater Capacity | 2.1 kW | 3.0 kW | 4.5kW | 6.0kW |
Earth Leakage Breaker | 15A | 20A | — | — |
Internal Dimensions*² W×D×H | 450×450×450 mm | 600×600×600 mm | 800×800×800 mm | 1000×1000×1000mm |
External Dimensions*² W×D×H | 1050×630×850 mm | 1200×780×1000 mm | 1,500×1,015×1,330mm | 1700×1215×1530mm |
Internal Capacity | 91L | 216L | 512L | 1000L |
Shelf Support Qty. / Pitch | 9 steps / 45mm | 9 steps / 60mm | — | — |
Power Source 50/60 Hz Single Phase | AC220V 12.5A (no plug, round terminal) | AC220V 17.5A (no plug, round terminal) | 3 phase AC220V 14A | 220V 19A (Three-phase) |
Weight | ~112 kg | ~156 kg | 350kg | 450kg |
Shelf / Bracket | 2 pcs / 4 pcs | 3 pcs / 6 pcs | 3 pcs. / 6 pcs. | 3 pcs. / 6 pcs. |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 91 L |
| Voltage (Life Science) | 208-240 VAC Only |
| Max Temp (Incubator/Oven/Chamber) | 260 C |
| Min Temp (Incubator/Oven/Chamber) | 35 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer |
Product General Attributes | |
| Unique Features | 220V 3-phase |
| Warranty | 1 YEARS |
| Product Weight | 246.92 LBS |
| Product Height | 33.46 IN |
| Product Length | 24.80 IN |
| Product Width | 41.34 IN |
| Shipping Weight | 283.96 LBS |
| Power Supply Voltage | 220V Only |
You must be logged in to post a review.
Manuals/Guides
| Weight | 246.92 lbs |
|---|---|
| Dimensions | 24.8 × 41.34 × 33.46 in |
