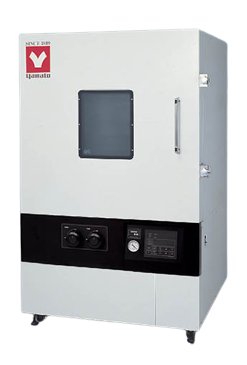

Yamato DP-104C – Programmable Industrial Vacuum Drying Oven, 1000L, 480V 3 Phase
47 people are viewing this product right now
$38,841.00
Shipping calculated at checkout.
Estimated delivery:5 days
Large Capacity Vacuum Oven Programmable 1000L ,480V 3 Phase
- Internal capacity: 1000L
- Power source: 3 phase 480V 18A (no plug, round terminal)
- Vacuum pump can be installed inside the oven
- Decompression – chamber wall heating method
- Quick connect / disconnect of vacuum pipes for easy vacuum pump maintenance
- Because the exhaust system is improved to significantly shorten the time to reach vacuum, working efficiency is improved
- Use specialized function menu key and up/down key to set.
- With program operation function, use submenu key to operate overheat protector, deviation correction, etc.
Guarantee Safe and Secure Payment Checkout
Description
Yamato DP-104C
- Internal capacity: 1000L
- Power source: 3 phase 480V 18A (no plug, round terminal)
Vacuum pump can be installed inside the oven
- Decompression – chamber wall heating method
- Quick connect/disconnect of vacuum pipes for easy vacuum pump maintenance
Programmable Industrial Vacuum Drying Oven, 1000L, 480V 3 Phase
The Yamato DP-104C is a Programmable Industrial Vacuum Drying Oven with Self-diagnostic functions (abnormal temperature sensor, heater disconnection, auto overheat prevention, SSR short circuit), overheat protector, ELB to prevent overcurrent, key lock, etc. For safety, a resin protection panel is installed at the observation window.
- Handle sensitive samples at a lower temperature
- Heat is evenly distributed from the arrangement of the heaters against outer chamber walls
- Reduced oxidation
DP Series Comparison
| DP83C | DP104C | |
| Heater Power | 6.5kW | 14.4kW |
| Internal Dimensions W×D×H | 800×800×800 mm | 1000×1000×1000 mm |
| External Dimensions W×D×H | 1020×1020×1850 mm | 1300×1280×2110 mm |
| Internal Capacity | 512L | 1000L |
| Power Source (50/60Hz) Rated Current | AC220V 31.5A (no plug, round terminal) | 3 phase AC480V 18A (no plug, round terminal) |
| Weight | ~450kg | ~1000kg |
| Included Accessories | Stainless steel punching plates, 2 pcs. | Stainless steel punching plates, 4 pcs. |
Incubators | |
|---|---|
| Controls (Life Science) | Digital |
| Capacity (Incubator/Oven/Chamber) | 1000 L |
| Voltage (Life Science) | 400 VAC |
| Max Temp (Incubator/Oven/Chamber) | 200 C |
| Min Temp (Incubator/Oven/Chamber) | 60 C |
| Special Chamber Functions (incl or optional) | Test Program / Profiler, Timer, Vacuum Drying, Visibility – Door with window |
Product General Attributes | |
| Unique Features | 480 VAC 3-phase |
| Warranty | 1 YEARS |
| Product Weight | 2205 LBS |
| Product Height | 83.1 IN |
| Product Length | 50.4 IN |
| Product Width | 51.2 IN |
You must be logged in to post a review.
Manuals/Guides
BrochuresManualsSpec SheetsComparison
| Weight | 2205 lbs |
|---|---|
| Dimensions | 50.4 × 51.2 × 83.1 in |
