Yellow Jacket 42054 Heat Pump Manifold
16 people are viewing this product right now
Shipping calculated at checkout.
Estimated delivery:5 days
H PUMP MAN EU R410A/32 W/HOS
- Please see chart below for a complete list of available packages
- Large 3-1/8″ gauges feature steel cases with polycarbonate crystal
- High- and low-side gauges read up to 800 psi
- Color-coded scales – larger dials are bold and easy to read
- Dials with 1% accuracy (Class 1) full scale movement provide the level of accuracy necessary for critical charge systems
- Proven sliding double “O”-ring pistons reduce wear
- Long life nylon seats
- Forged brass body for durability
- Full porting maximizes capacity and flow
- Full-size metal valve handles for easy operation
- Packages with hose assemblies are UL recognized for 4000 psi (275 bar) burst and 800 psi (55 bar) working pressure (File# SA9737)
- Made in USA
Guarantee Safe and Secure Payment Checkout
Description

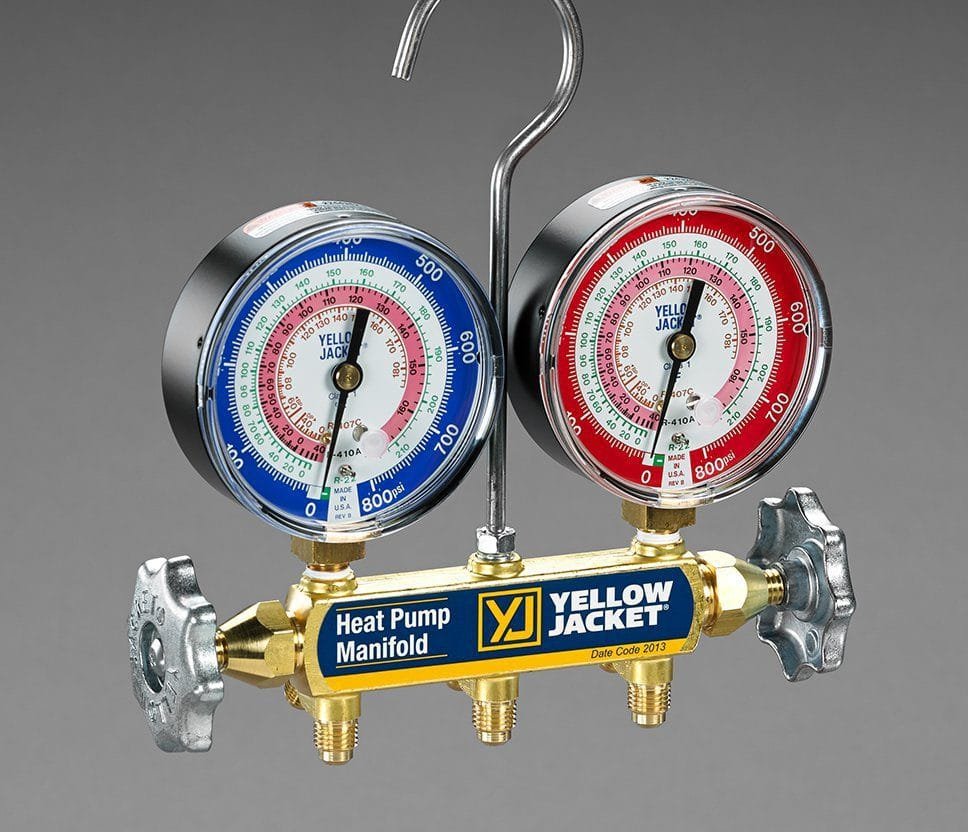

Yellow Jacket 42054 Heat Pump Manifold
- Hoses: 60″ black PLUS II 1/4″ ball valve hoses; (2) 5/16″ on service end (1) 1/4″ on service end
- Hose holder fittings: 5/16-1/4-5/16″
- Refrigerant: R-410A
- Large 3-1/8″ gauges feature steel cases with polycarbonate crystal
The Yellow Jacket Heat Pump Manifold features two 800 psi gauges to read all heat pump pressure conditions. Traditional lo-side manifold gauges can be susceptible to damage when heat pumps go into heating mode. Because the lo-side gauge of the Yellow Jacket Heat Pump Manifold is also designed for pressures up to 800 psi, it can read the pressure whether the pump is in heating mode, cooling mode, or transition.
| Heat Pump Manifolds | ||||
| UPC# | Description | Hoses | Hose holder fittings | Refrigerants |
| 42041 | Heat pump manifold | 1/4-1/4-1/4″ | R-22/R-407C/R-410A | |
| 42044 | Heat pump manifold | (3) 60″ black PLUS II 1/4″ hoses | 1/4-1/4-1/4″ | |
| 49133 | High side replacement gauge | 800 psi, °F | – | |
| 49134 | Low side replacement gauge | 800 psi, °F | – | |
| 42052 | Heat pump manifold | 1/4-1/4-1/4″ | R-410A | |
| 42055 | Heat pump manifold | (3) 60″ black PLUS II 1/4″ ball valve hoses | 1/4-1/4-1/4″ | |
| 42051 | Heat pump manifold | 5/16-1/4-5/16″ | ||
| 42054 | Heat pump manifold | 60″ black PLUS II 1/4″ ball valve hoses; (2) 5/16″ on service end (1) 1/4″ on service end | 5/16-1/4-5/16″ | |
| 49971 | Heat pump manifold | Manifold only | 5/16-3/8-1/4-5/16″ | |
HVAC Equipment and Instruments/Manifolds and Gauges Template | |
|---|---|
| Refrigerant Type | R-410A |
| Hose Length | 60 IN |
| Fitting style | Ball Valve |
