ZTS MBT-1 – Multi-Battery Test

• Computes State of Charge (SOC) for more than 40 battery types
• Easy to use – No switches or settings
• Test battery condition – quickly and easily identifies weak or failing batteries
• Patented high accuracy Pulse Load test – battery safe, non-invasive
• Measures battery performance under load, not just voltage or internal resistance

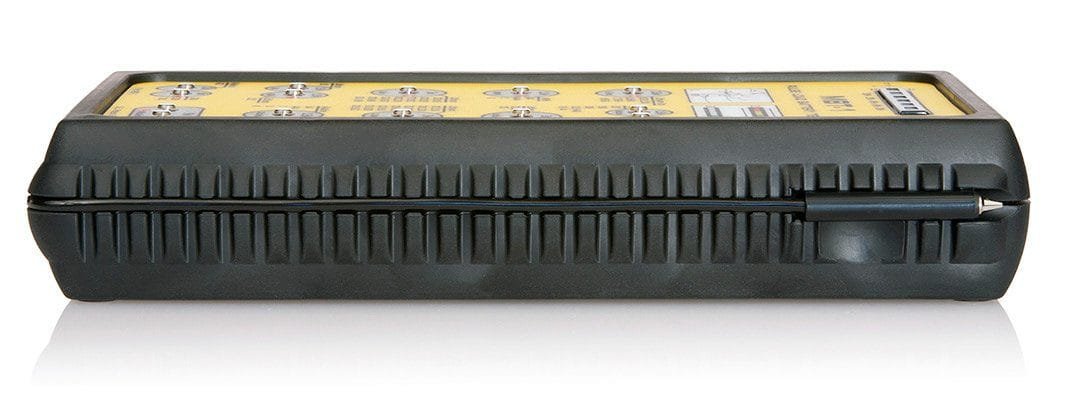

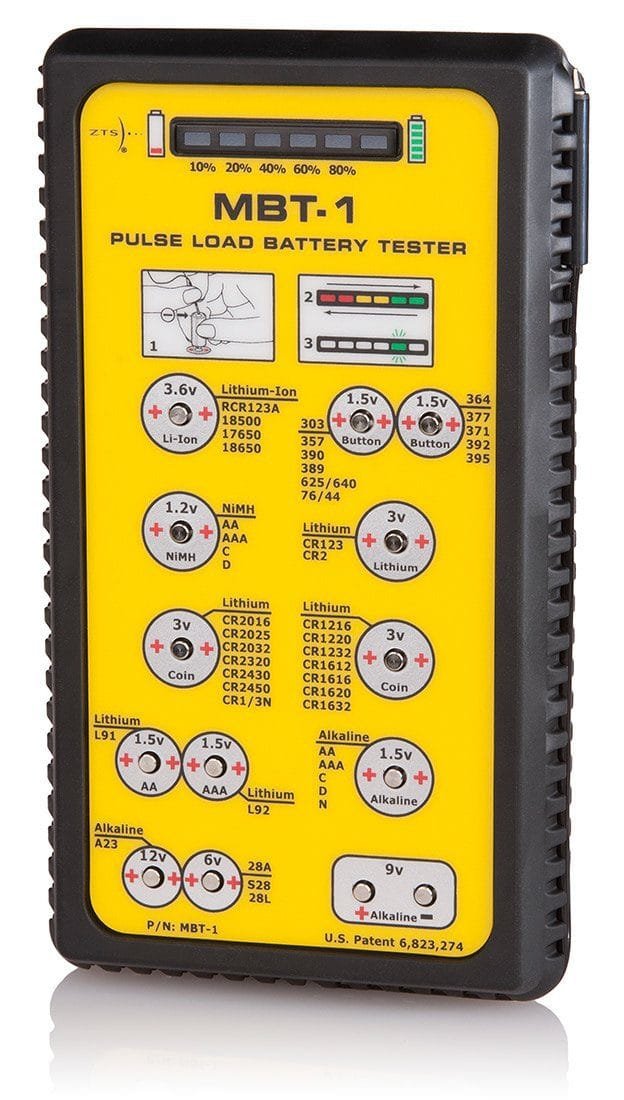

The ZTS Multi-Battery Tester (MBT-1) provides a comprehensive means of testing the state of charge or state of power for more than 40 battery types. This microprocessor-controlled instrument is designed for commercial or home use and tests popular primary (non-rechargeable) and rechargeable batteries using a patented, high-accuracy pulse load test. After a fully automatic test cycle, the percentage of remaining battery capacity is indicated on the LED bar display. Battery types are clearly labeled next to appropriate contacts. The negative test lead/probe is conveniently stored in the seam at the side. It’s easy to use, and test results are easy to understand. Tests NiMH, Li-Ion, alkaline, lithium, coin cell, button type, and more. Requires 4AA batteries (not included).

Testing Capabilities

• 3.6v Li-Ion rechargeable [RCR123A, 18500, 17650, 18650]
• 1.5v button cell [364, 377, 371, 392, 395, S76, A76, A625, A640, LR44, 357, 303]
• 1.2v NiMH/NiCd rechargeable [AA, AAA, C, D]
• 1.5v lithium [AA L91, AAA L92]
• 3v lithium coin [CR1216, CR1220, CR1232, CR1612, CR1616, CR1620, CR1632, CR2016, CR2025, 58L, 1/3N], [CR2032, CR2320, CR2430, CR2450]
• 6v ’28’ series [28A, S28, 28L, 544, 4LR44]
• 3v lithium cylindrical [CR123, CR2]
• 1.5v alkaline [AA, AAA, C, D, N]
• 12v alkaline [A23]
• 9v alkaline & carbon zinc
