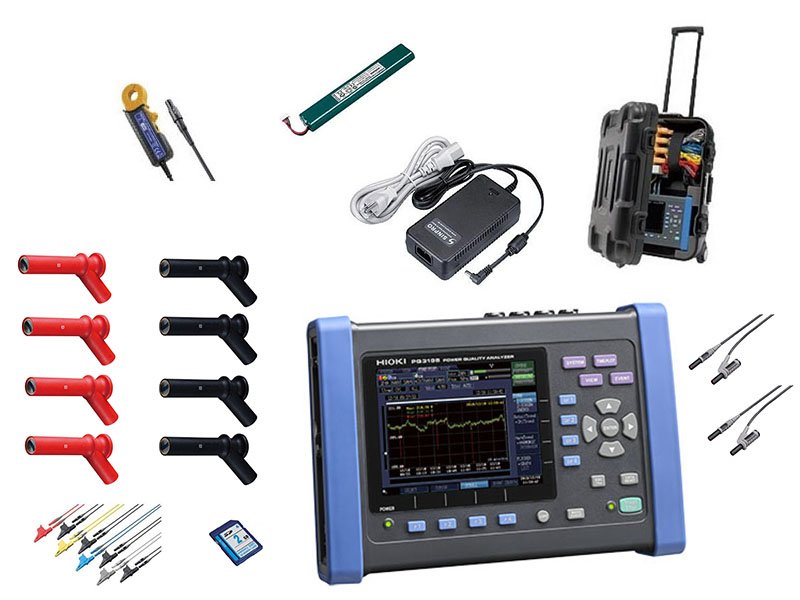

Hioki PQ3198/100 KIT – Power Quality Analyzer Kit 100 A

Hioki PQ3198/100 KIT – Power Quality Analyzer Kit, 100 A

• Measure up to 100 A
• Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
• Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
• Easily create reports with bundled PQ ONE application software
• Optional GPS BOX for synchronizing multiple devices

The Hioki PQ3198/100 Power Quality Analyzer Kit, 100 A is for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.

Maintain and manage power supplies and analyze problems more easily and reliably than ever before

The critical importance of electrical power in today’s society necessitates daily maintenance and management to ensure that problems don’t occur. When they do, for example due to an equipment failure or abrupt surge in demand, engineers face the need to analyze the cause quickly. The POWER QUALITY ANALYZER PQ3198 and PQ3100 provide robust support for field personnel who need to analyze power characteristics in the form of measurement capabilities that reliably captures the full range of power anomalies and exceptional ease of use throughout the entire user experience, from connecting the instrument to recording data.

Analyze equipment power problems

Capture the full range of power supply anomalies, including momentary interruptions, voltage drops, and frequency fluctuations, while recording trends to help investigate the causes of unexpected equipment malfunctions and sudden stoppages.

Record quality data for power systems

Record fluctuations in voltage, current, power, harmonics, and flicker when connecting a highly variable system such as a renewable energy source or EV charging station to the grid. Easily analyze the data with the included PQ ONE software.

Measure AC/DC power

Use AC/DC auto-zero current sensors to measure DC current accurately over extended periods of time. Since the sensors are powered by the instrument, there’s no need to set up a separate power supply.

Easy-to-understand display of parameters

Since you can switch the display to show all measurement parameters while measurement is underway, it’s easy to check conditions.

Simultaneously record event waveforms and trend graphs

< Event waveform >
When an event occurs, the instrument records the instantaneous waveform for 0.2 seconds. Triggers can be set for all event parameters in parallel, and you can check recorded data on the display while measurement is in progress.


Simultaneously record event waveforms and trend graphs

< 30 sec. event fluctuation trend data >
When a voltage swell, dip, or inrush current event occurs, the PQ3198/PQ3100 can simultaneously record 1/2 RMS value fluctuations for 30 seconds.
