PCE Instrument PCE-HVAC 6 – Clamp Meter (1000 A AC)

• Current measurement up to 1000A AC and DC
• Voltage measurement up to 50 Mega Ohms
• Capacitance measurement range up to 5 mF
• Frequency measurement range up to 10 MHz
• Duty cycle range: 5 – 95%

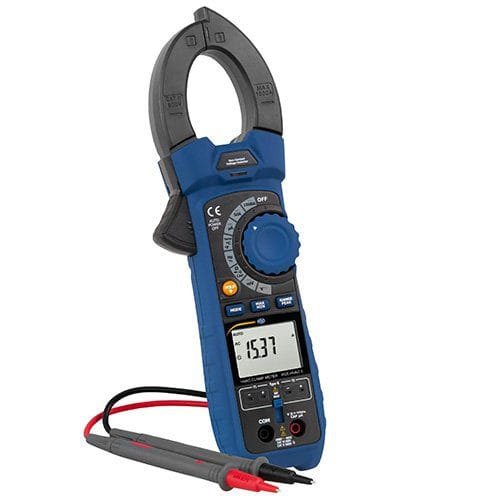

PCE-HVAC 6 Clamp meter

Up to 1000 A AC / DC / Non-contact voltage detection / Voltage measurement up to 600V. Temperature measurement via thermocouple / Robust rubberized housing

The clamp meter PCE-HVAC 6 was specially developed for the tradesman in the field of heating, ventilation and air conditioning technology. This clamp meter is ideal for many inspection and maintenance jobs in this area. This clamp meter combines many gauges in one. It is possible with this meter to measure currents up to 1000 A in the DC and AC range via the clamp. Furthermore, voltages up to 600V AC / DC can be determined exactly. For quick and easy testing of electrical conductors, the clamp meter is equipped with non-contact voltage detection.

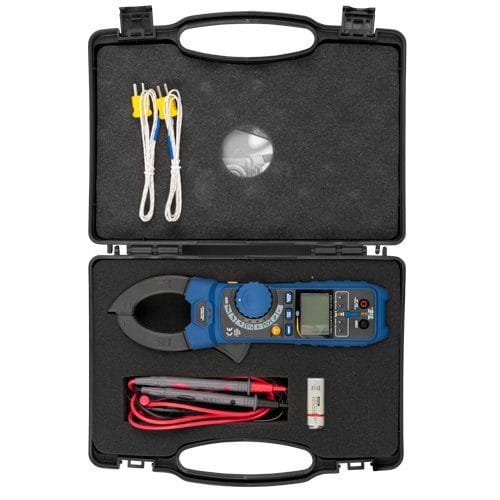

The PCE-HVAC 6 clamp meter can also measure resistors and capacitors. The diode test and continuity test complete the series of electrical measuring functions of the clamp meter. As a special feature, the PCE-HVAC 6 clamp meter has 2 measuring inputs for Type-K thermocouples. With the help of these thermocouples, for example, the flow and return temperature of heating systems can be measured.

The clamp meter was developed for the everyday life of a service worker. The sturdy plastic housing withstands shocks easily. A circumferential rubber coating on the housing of the PCE-HVAC 6 helps ensure that the clamp meter is secure in the hand, even when the technician wears gloves. The display is equipped with an LED backlight, which facilitates reading in dark environments. As a further highlight, the clamp meter on the plier’s tip has a measuring point illumination.
