Powerside PQube3iaB-Portable-Modem – PQube 3 Portable Power Analyzer Modem Ready
18 people are viewing this product right now
$9,560.10
Shipping calculated at checkout.
Estimated delivery:5 days
PQube3iaB-Portable – Power Analyzer – modem ready
- Self-powered, ready-to-go portable kit for a quick install and temporary power measurement
- Modem Ready – with antennas, cables, mounting plate, 24VDC for modem (not included)
- Voltage range 100 to 480Vac nominal, Current range (0 to 3000Amps)
- Detects and records high-frequency impulses at 4MHz
- Data extraction via USB stick or remotely receive reports via email
- Power Quality Class A IEC 61000-4-30 Ed3
- Auto-detects the mains frequency, power configuration, and nominal voltage
- Self-powers from the measured voltage (360 to 480VAC)
- Built-in web and email server – receive email alerts of events and remotely access data
- Optional environment probes (temp, humidity, barometric pressure, acceleration)
Guarantee Safe and Secure Payment Checkout
Description
Powerside PQube3iaB-Portable-Modem – PQube 3 Portable Power Analyzer Modem Ready
- Self-powered, ready-to-go portable kit for a quick install and temporary power measurement
- Modem Ready – with antennas, cables, mounting plate, 24VDC for modem (not included)
- Voltage range 100 to 480Vac nominal, Current range (0 to 3000Amps)
- Detects and records high-frequency impulses at 4MHz
- Data extraction via USB stick or remotely receive reports via email
- Power Quality Class A IEC 61000-4-30 Ed3

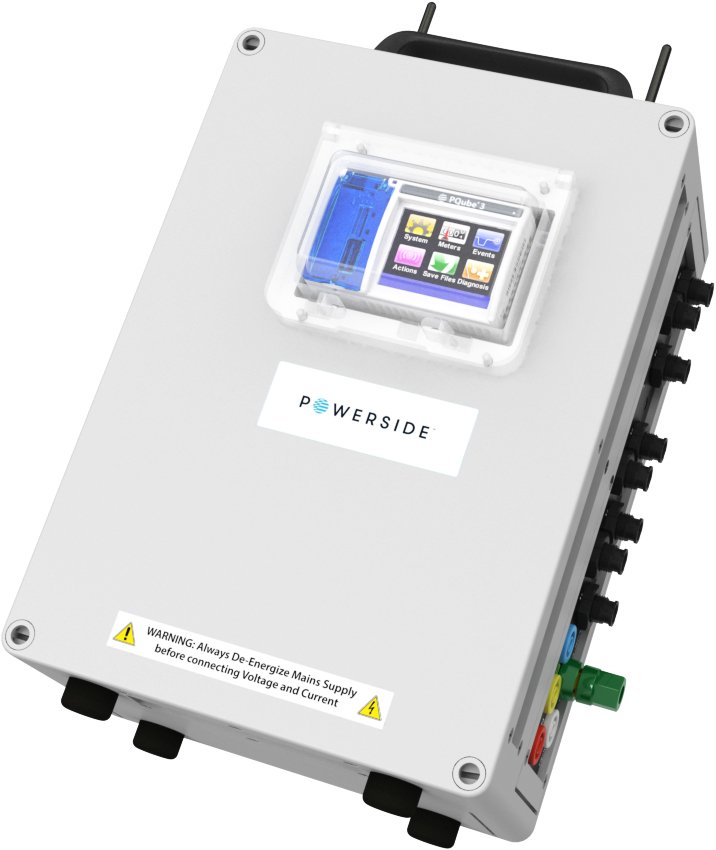

PQube 3 Portable Power Analyzer Modem Ready
Designed for a quick install and temporary power measurement campaigns
The PQube 3 Portable combines the powerful monitoring and communication capabilities of the PQube 3 Power Analyzer with the quick install feature of a portable instrument. Designed for quick installation with Flexible CTs and fused voltage cables, it auto-detects frequency, nominal voltage and wiring configuration. The PQube 3 Portable can be used stand alone with a USB stick for configuration and data download. If connected to a network, it delivers event notifications and daily, weekly, as well as monthly reports directly to your inbox.

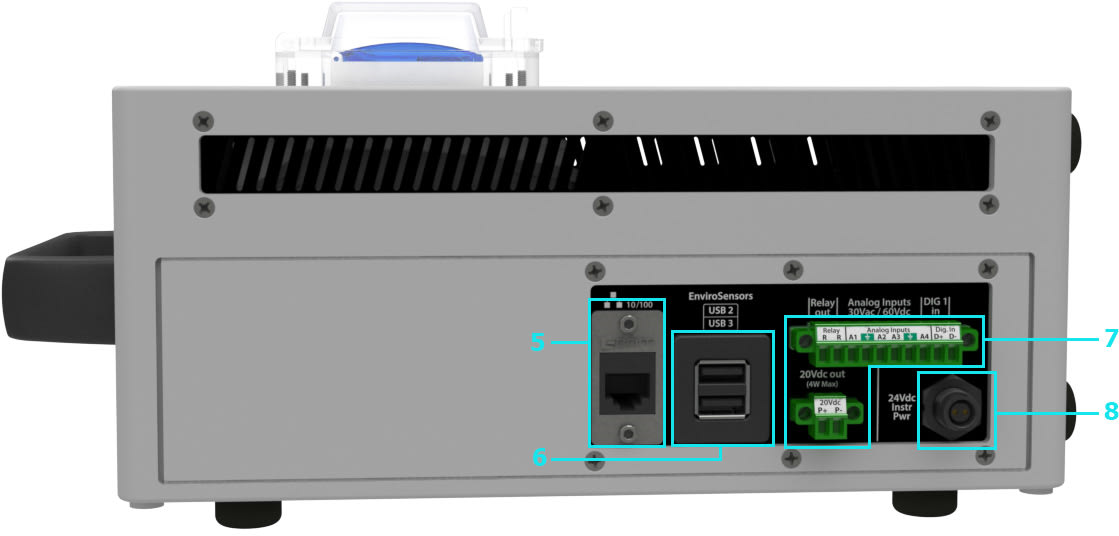

Connection and wiring
- L1, L2, L3 voltage inputs, Rated for 100 to 480Vac, 50/60Hz
- Neutral terminal-optional depending on your power configuration
- Earth terminal-Functional. Used as the reference point for voltage measurements.
- Current transformer inputs-nominal 0.333V RMS (LOW range) or ± 10V (HIGH range)
- 10/100 Ethernet RJ-45 port. 48V PoE compatible
- (2) Standard UB 1.0 ports for use ONLY with ENV2 environmental probes.
- PQube 3 Analog & Digital I/O terminals
- 24VDC power supply input
Power Measurement/Power Quality Analyzer Template | |
|---|---|
| Type (Power Quality) | 3 Phase, Single Phase |
| Maximum Current AC | 3000 A |
| Maximum Voltage AC | 480 V |
| True Power / Work ( W) | Yes |
| Apparent Power (VA) | Yes |
| Reactive Power (VAR) | Yes |
| Voltage Input Channels | 3 |
| Measurement Frequency (Power Quality) | 400 Hz, 50 Hz, 60 Hz |
| Display (Power Quality) | Analog, Digital, Graphical, Oscilloscope |
| Graphical Display Type | LCD |
| Alarms | Yes |
| Transient Capture | Yes |
| Minimum Transient Duration | nano-seconds |
| Displays Waveform | Yes |
| Energy | Yes |
| Phasor Diagrams | Yes |
| Power Factor (Power Quality) | Yes |
| Harmonics | Yes |
| Maximum Harmonics Range | 50 |
| Current Clamps Included | No |
| Class A Compliant | Yes |
| Crest Factor | Yes |
| CAT Voltage Rating (V) | 300V, 600V |
| GPS Location | No |
Product General Attributes | |
| Product Height | 12 IN |
| Product Length | 8.5 IN |
| Product Width | 6 IN |
| Shipping Weight | 11.409 LBS |
| Shipping Height | 12.00 IN |
| Shipping Length | 8.50 IN |
| Shipping Width | 6.00 IN |
